Ruud RHMV2421UEACJA Air Handler 2 Ton Modulating Eev

Product Description

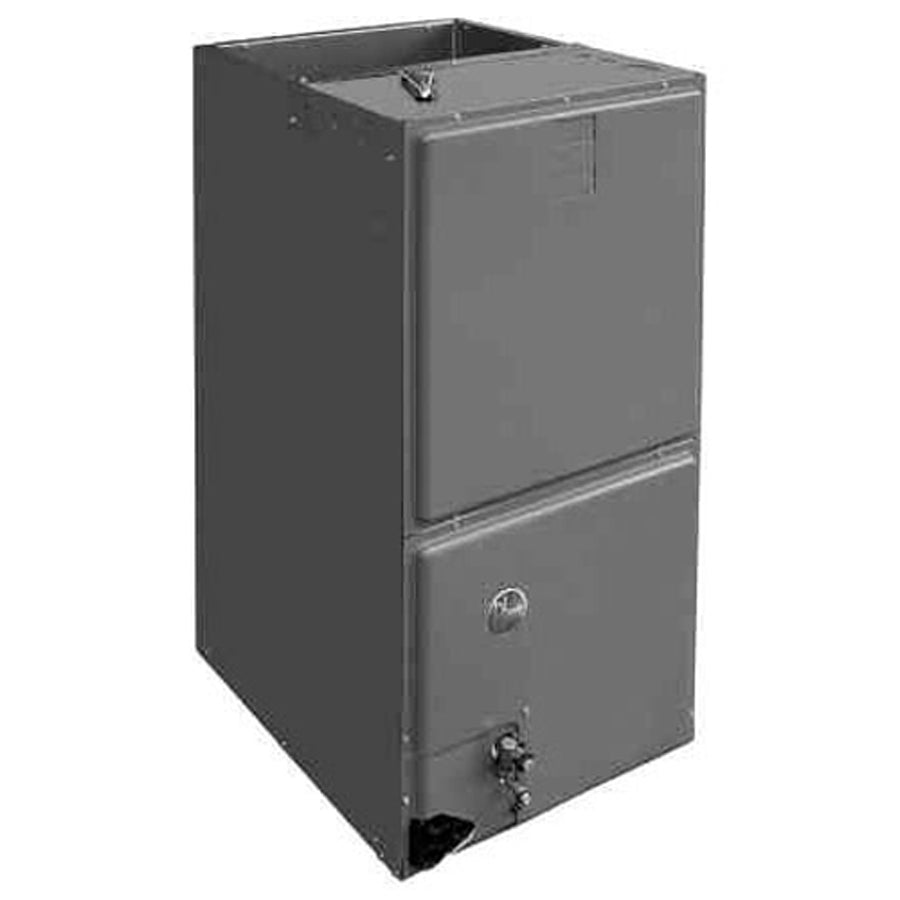

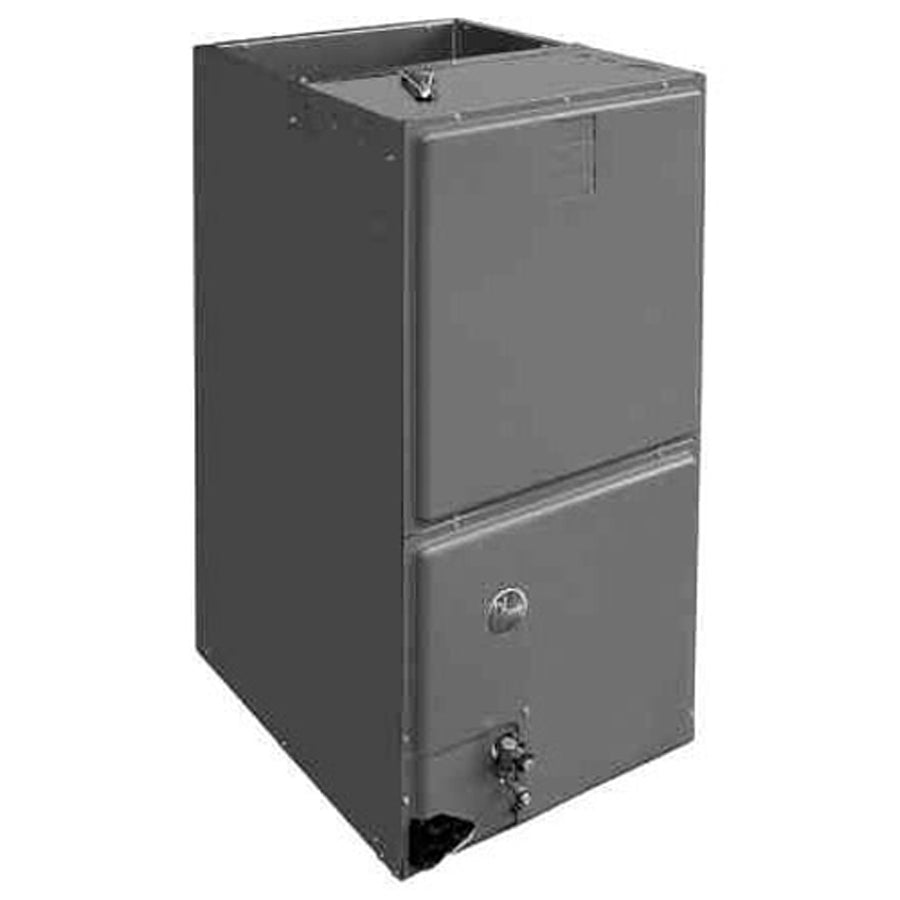

The RUUD RHMV2421UEACJA is a 2-ton modulating air handler with an electronic expansion valve (EEV) designed for residential split-system HVAC installations. Rated at 18,000 to 24,000 BTU/h and up to 20.5 SEER, this unit delivers variable-speed airflow through a factory-installed evaporator coil constructed of aluminum fins bonded to internally grooved aluminum tubing. The modulating EEV allows precise refrigerant metering that pairs with a compatible variable-capacity outdoor unit. Cabinet insulation is 1.0 inch foil-faced for noise reduction and thermal performance. Licensed HVAC technicians install and commission this equipment.

This air handler fits residential applications requiring a compact, versatile cabinet. The 4-way convertible design supports upflow, downflow, horizontal left, and horizontal right orientations, making it suitable for closet, utility room, attic, or crawlspace installations. It handles 330 to 400 CFM per ton at 0.3 inches of external static pressure and supports enhanced airflow up to 0.7 inches of external static pressure. Field-installed auxiliary electric heater kits are available separately and include UL and cUL-listed circuit breakers that serve as the service disconnect.

Key Features

• Modulating EEV for precise refrigerant control in variable-capacity systems
• Variable-speed motor for quiet, efficient airflow management
• 4-way convertible cabinet supports upflow, downflow, horizontal left, and horizontal right installations
• Factory-installed aluminum fin and internally grooved aluminum tube evaporator coil
• 1.0 inch foil-faced cabinet insulation rated for less than 2.0% air leakage at 1.0 inch H2O per ASHRAE Standard 193
• Compatible with field-installed auxiliary electric heater kits sized 1.5 ton through 5 ton

Compatibility

Designed as an OEM-style replacement or new-installation air handler for residential split-system applications requiring a 2-ton modulating unit with EEV; consult the outdoor unit documentation to confirm variable-capacity system compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power to the system before servicing the air handler or making refrigerant connections. Refrigerant line connections are 3/8 inch liquid and 3/4 inch suction; follow EPA Section 608 regulations for refrigerant handling. Auxiliary electric heater kits are field-installed and must be wired per NEC requirements and local electrical codes.

Technical Specifications

• Nominal Capacity: 1.5 to 2 tons (18,000 to 24,000 BTU/h)
• SEER: 20.5
• Voltage Rating: 208/230 volts AC, 60 Hz, 1-Phase
• Motor Type: Variable Speed
• Refrigerant Line Size: 3/8 inch liquid x 3/4 inch suction
• Airflow: 330 to 400 CFM per ton at 0.3 inches external static pressure
• Max External Static Pressure: 0.7 inches
• Cabinet Air Leakage: Less than 2.0% at 1.0 inch H2O (ASHRAE Standard 193)
• Height: 42.5 inches
• Width: 21 inches
• Depth: 19.5 inches
• Weight: 153.0 pounds
• Cabinet Insulation: 1.0 inch foil-faced

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHMV2421UEACJA
