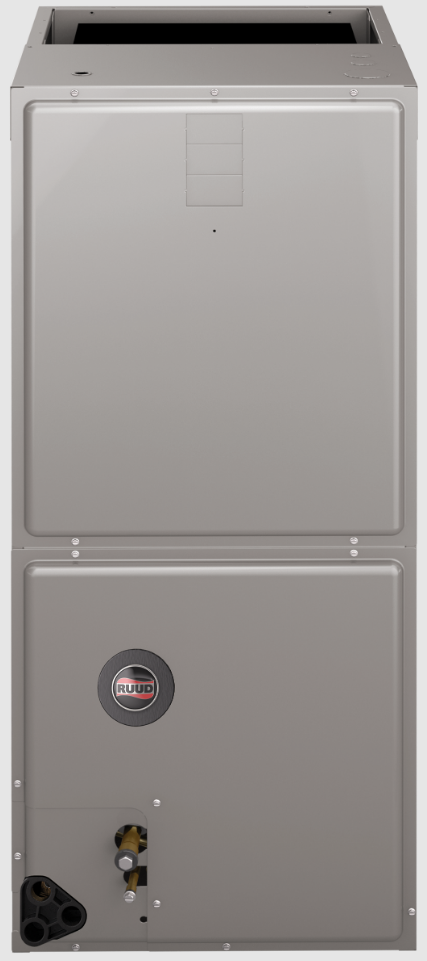

Ruud RHMV2417SEACJA Air Handler 18000 BtuH 17.50 Inch

Product Description

The Ruud RHMV2417SEACJA air handler has an 18,000 BtuH capacity and a width of seventeen and a half inches. It is designed with an electronic expansion valve (EEV) that automatically adjusts to meet the system's needs. The system uses a vapor line pressure transducer and thermistor to optimize EEV performance by calculating suction superheat. This unit can be installed in multiple orientations including upflow, downflow, horizontal left, or horizontal right.

• Electronic expansion valve (EEV) for optimal adjustments.
• Constant CFM variable speed motor (ECM) improves SEER ratings.
• Four-way convertible design for versatile installations.

Product Highlights

Product Information

Standard Information

• Configuration: Multiposition
• Electrical Designation: 1-60-208/240

Technical Specifications

• Refrigerant: R410A
• Heating: None
• Suction Line Size: 3/4 inches
• Liquid Line Size: 3/8 inches
• Motor Type: ECM
• Length: 21.6875 inches
• Height: 42.50 inches
• Width: 17.50 inches
• Placement: Indoor
• Speed: Variable
• Motor Speed: 1/3 HP
• Depth: 21.69 inches
