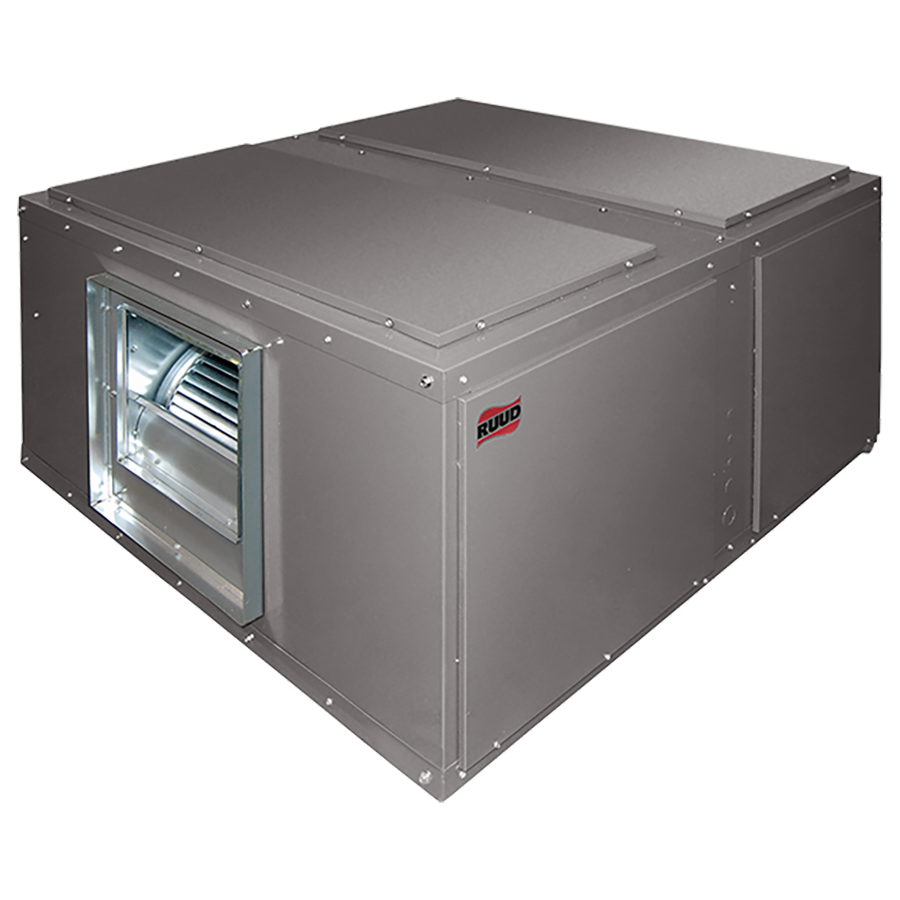

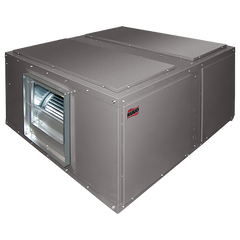

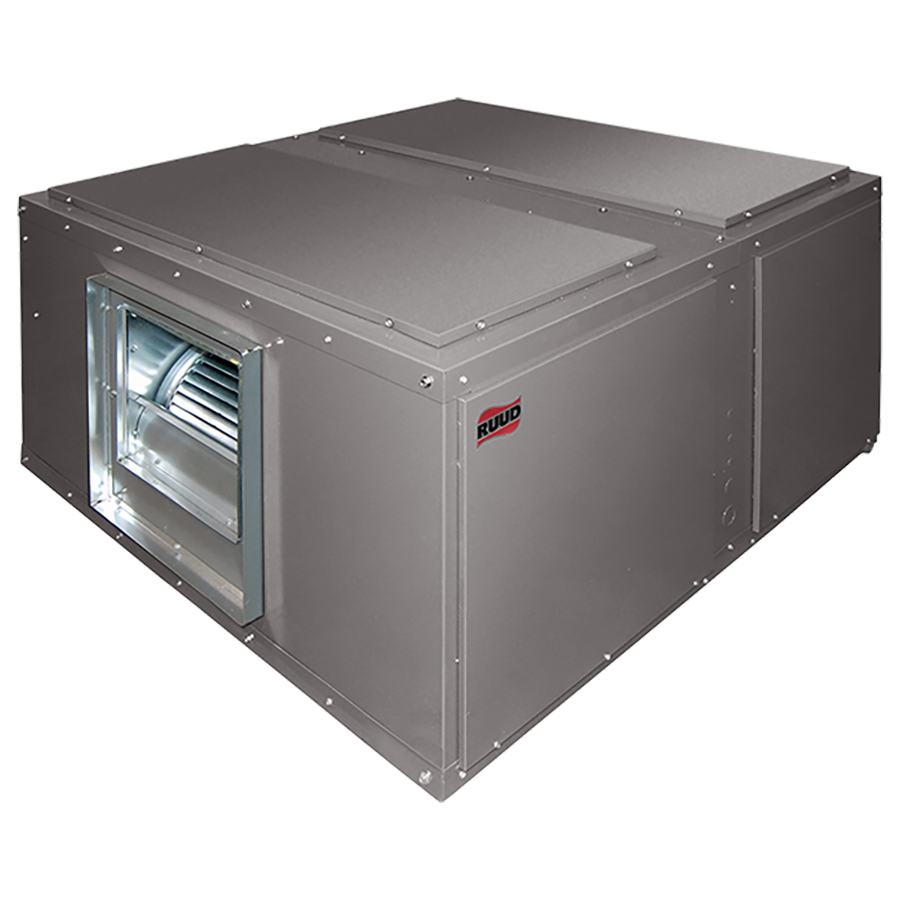

Ruud RHCLA2120CBS Air Handler 10 Ton 208/230V 3-phase

Product Description

The RUUD RHCLA2120CBS is a commercial air handler rated at 10 nominal tons and designed for 208/230-volt, 3-phase electrical supply. Air handlers circulate conditioned air through a building's duct system, working in tandem with a matched condensing unit to deliver complete split-system cooling or heat pump performance. This unit is specified for commercial applications where 3-phase power is available and higher capacity is required. Installation and commissioning are performed by licensed HVAC technicians familiar with commercial split-system equipment and 3-phase wiring requirements.

The RHCLA2120CBS is suited for commercial buildings, light industrial spaces, and large-footprint facilities requiring centralized air distribution at the 10-ton capacity range. According to the manufacturer, this air handler is designed to match the RACL series condensing unit, making it a key component in a coordinated commercial split system. Correct pairing with the appropriate condenser is essential to achieving rated system performance and maintaining equipment warranty compliance.

Key Features

• 10 nominal ton capacity for large commercial cooling applications
• 208/230-volt, 3-phase electrical configuration for commercial power infrastructure
• Designed to match the RUUD RACL series condenser for integrated split-system operation
• Commercial-grade construction suited for high-demand HVAC installations

Compatibility

Per manufacturer data, this air handler is designed to match the RACL series condensing unit. No additional compatible model numbers were provided in the product data. Consult RUUD engineering documentation or a certified distributor to confirm full system compatibility before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician qualified to work on commercial 3-phase equipment. Disconnect and lock out all electrical power at the service panel before beginning any wiring or mechanical connections. Follow applicable local mechanical codes and NEC requirements for 3-phase commercial HVAC installations. Verify that the electrical supply voltage and phase configuration at the installation site match the unit's nameplate ratings before energizing.

Technical Specifications

• Item Type: Air Handler
• Nominal Capacity: 10 tons
• Voltage: 208/230 volts
• Phase: 3-phase

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHCLA2120CBS
