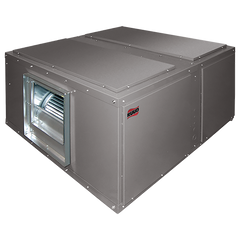

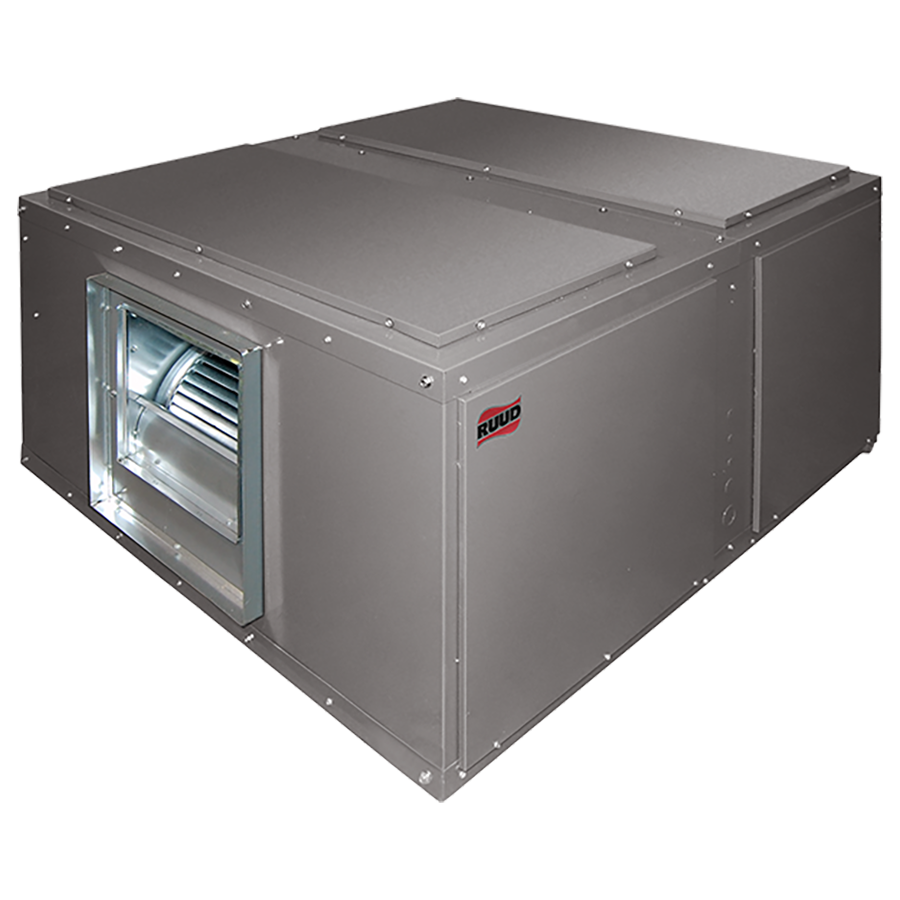

Ruud RHCLA2090CBS Air Handler 7.5 Ton 208 230V 3ph

Product Description

The RUUD RHCLA2090CBS is a commercial-grade air handler rated at 7.5 nominal tons and designed for 208/230 volt, 3-phase electrical service. Air handlers circulate conditioned air through a building's duct system by housing the evaporator coil, blower assembly, and associated controls in a single cabinet. This unit is matched for use with the RUUD RACL condenser series, making it part of a split-system configuration. Installation and commissioning are typically performed by licensed HVAC technicians working on light commercial or large residential applications where 3-phase power is available.

This air handler is suited for commercial split-system installations requiring 7.5 tons of cooling capacity. The 3-phase 208/230 volt power requirement places it in light commercial environments such as retail spaces, office buildings, warehouses, or multi-unit facilities. It is designed to pair with the RUUD RACL condenser line as a matched system, which supports proper equipment sizing and helps meet manufacturer warranty and efficiency requirements. Technicians selecting this unit should confirm available phase and voltage at the installation site before ordering.

Key Features

• 7.5 nominal ton capacity suited for larger commercial cooling loads
• 208/230 volt, 3-phase power input for commercial electrical systems
• Designed as a matched system component with the RUUD RACL condenser series
• Split-system air handler configuration housing evaporator coil and blower

Compatibility

Designed to match the RUUD RACL condenser series as a split-system air handler pair. Confirm full system compatibility with RUUD equipment documentation before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with commercial split-system equipment and 3-phase electrical service. Disconnect and lock out all electrical power at the breaker panel before beginning any work on the unit. Refrigerant line connections must comply with applicable mechanical codes, and electrical connections must conform to NEC requirements for the rated voltage and phase. Verify that the matched condenser unit and all associated components are properly sized and rated for this air handler before completing the system installation.

Technical Specifications

• Item Type: Air Handler
• Nominal Capacity: 7.5 Tons
• Voltage: 208/230 Volts
• Phase: 3-Phase

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHCLA2090CBS
