Ruud RH2TY4824STANNJ Endeavor Multi-Purpose Air Handler 4 ton Replacement MPN

Product Description

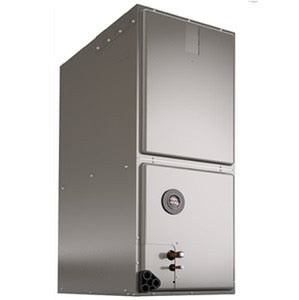

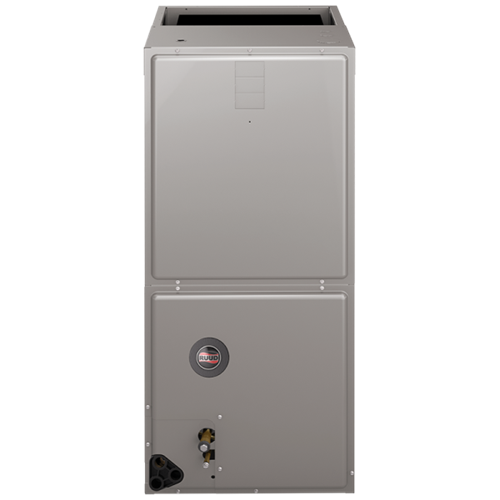

The Ruud Endeavor RH2TY4824STANNJ is a multi-purpose air handler with a four ton nominal capacity, providing effective climate control for various applications. It has a cooling capacity of 48000 Btu/hr and operates efficiently at 208-240 V, utilizing five amperes and 559 watts. This air handler features a motor rated at three-fourths horsepower, supporting a rotational speed range from three hundred to one thousand one hundred rpm with a CFM rating of fourteen hundred.

• Quiet operation with foiled insulation
• Aluminum coil design for enhanced corrosion resistance
• Versatile setup for various airflow configurations

Product Highlights

This air handler is designed for dependable performance in both residential and commercial HVAC systems. Its 4-way convertible design makes it suitable for upflow, downflow, and horizontal applications.

Product Information

Standard Information

• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Cooling Capacity: 48000 Btu/hr

Technical Specifications

• Filter Size: 25 x 20 in
• Material: Steel
• Motor Type: Constant Torque ECM
• Nominal Capacity: 4 ton
• Number of Speeds: 4
• Refrigerant Type: R-454B
• Rotational Speed: 300 to 1100 rpm
• SEER Rating: 13.4 to 16
• CFM Rating: 1400 cfm
• Voltage Rating: 208-240 V
• Amperage Rating: 5 A
• Wattage: 559 W
• HP Rating: 3/4 hp
• Frequency Rating: 60 Hz
• Phase: 1 ph
