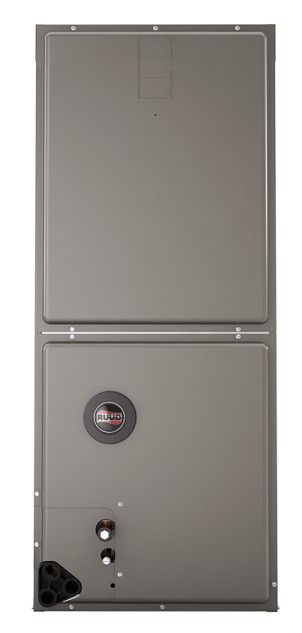

Ruud RH2TY4821STANNJ Endeavor Line Air Handler 48000 Btu/h

Product Description

The Ruud RH2TY4821STANNJ Endeavor Line Air Handler delivers efficient indoor air circulation with a cooling capacity of 48000 Btu/hr. Its robust design features a cabinet insulated with one inch of foil-faced material, ensuring quiet operation. The aluminum indoor coil is built for durability, with aluminum fins welded to internally grooved tubing for resistance to corrosion. The unit offers a 4-way convertible compact design for versatility in application.

• Quiet operation due to insulated cabinet.
• Corrosion-resistant aluminum indoor coil.
• 4-way convertible design for various installation options.

Product Highlights

This air handler is suitable for both residential and commercial needs, providing reliable indoor comfort.

Product Information

Standard Information

• Brand: Ruud
• Model Number: RH2TY4821STANNJ

Technical Specifications

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant Torque ECM
• Refrigerant: R-454B
• Nominal Capacity: 4 ton
• Cooling Capacity: 48000 Btu/hr
• Air Flow - Lo: 1400 ft³/min
• Air Flow - Hi: 1600 ft³/min
• Blower Motor: 3/4 hp
• Minimum Circuit Ampacity: 5 A
• Shipping Weight: 144 lb
• Dimensions: 50.5 in H x 21 in W x 21.6875 in D
