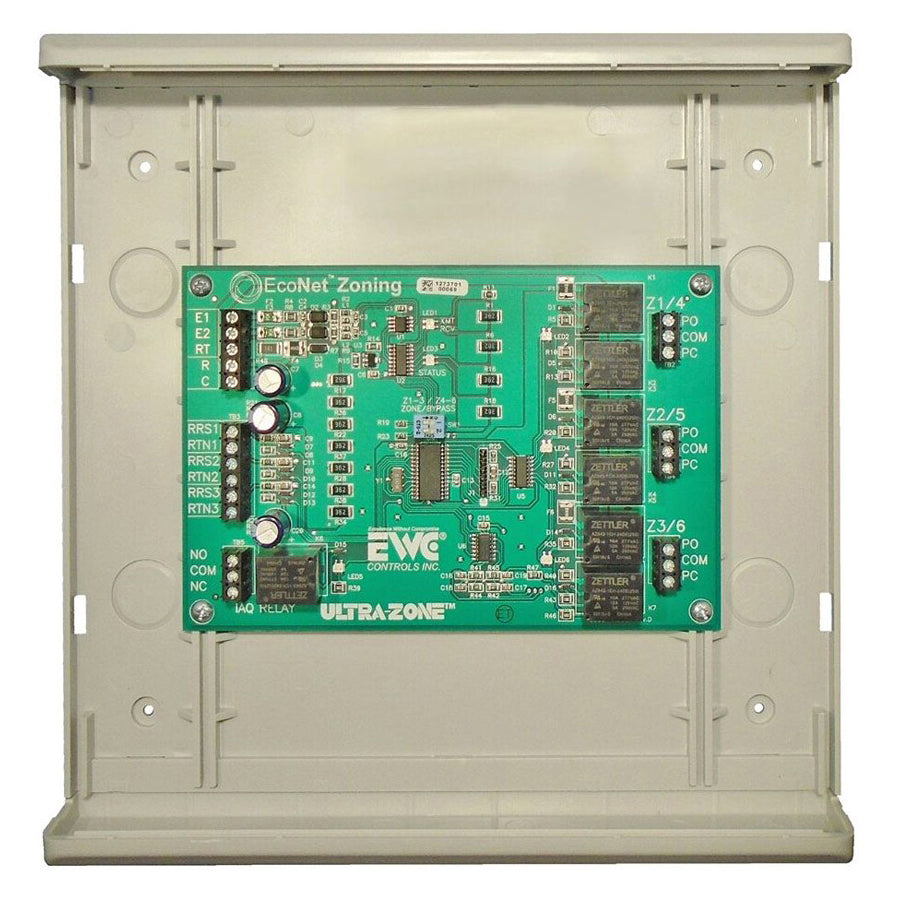

Ruud REPNL700ZON Zone Control Panel

Product Description

The RUUD REPNL700ZON is a zone control panel designed for use with EcoNet-compatible thermostat systems. It manages zoned HVAC operation by coordinating thermostat signals across multiple zones within a single system, allowing independent temperature control in different areas of a structure. The panel is compact and lightweight at 0.6 pounds, with a footprint of 5.6 inches by 4.1 inches and a height of 2.05 inches. Licensed HVAC technicians typically handle installation as part of a zoned system commissioning or retrofit project.

This zone control panel is suited for residential and light commercial HVAC applications where independent zone control is required. It integrates into EcoNet-enabled systems to support multi-zone configurations, providing centralized management of zone dampers and thermostat inputs. It is intended for new installations as well as replacement of existing zone control hardware in compatible EcoNet setups.

Key Features

• Designed for EcoNet-compatible thermostat and zoning systems
• Supports multi-zone HVAC operation for independent temperature control per zone
• Compact form factor: 5.6 inches long by 4.1 inches wide by 2.05 inches tall
• Lightweight at 0.6 pounds for straightforward panel mounting
• OEM RUUD replacement part with exact-fit design

Compatibility

Designed as an OEM-style replacement zone control panel for RUUD EcoNet-compatible thermostat and zoning systems. No additional specific model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control wiring and zoned system configurations. Power down the air handler and all associated zone damper actuators before beginning any wiring work. Follow local mechanical and electrical codes, including applicable NEC guidelines for low-voltage control circuits. Verify all zone wiring connections are secure and correct before restoring power and commissioning the system.

Technical Specifications

• Length: 5.6 inches
• Width: 4.1 inches
• Height: 2.05 inches
• Weight: 0.6 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: REPNL700ZON
