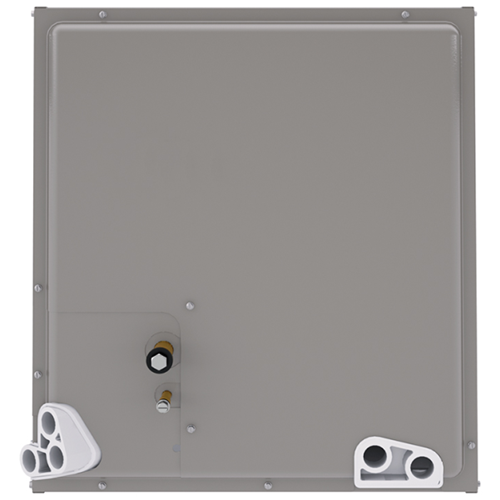

Ruud RCFY3621STANMC Endeavor Cased Coil 36000 BTU/hr

Product Description

The Ruud RCFY3621STANMC Endeavor Cased Coil, with a cooling capacity of 36000 BTU/hr, is suitable for use with Ruud outdoor units. This coil can be installed in multiple configurations, including vertical upflow, downflow, and horizontal left or right airflow. It features an aluminum construction with bonded fins and internally grooved aluminum tubing.

• Compatible with Ruud outdoor units
• Equipped with two sets of 3/4 inch N.P.T. condensate drain connections
• UV resistant and compatible with Germicidal Light System

Product Highlights

This coil is built for efficient cooling and features durable materials for reliability.

Product Information

Standard Information

• BTU: 36000
• Refrigerant: R-454B

Technical Specifications

• BTU Cooling Rating: 36000 BTU/hr
• CFM: 1200 ft3/min
• Casing: Cased
• Coil Type: Evaporator
• Height: 20.5 inches
• Length: 21.6875 inches
• Liquid Line (OD): 3/8 inches
• Suction Line (OD): 3/4 inches
• Tonnage: 3 Ton
• Width: 21 inches
• UL Listed: Yes
• Depth: 21.75 inches
