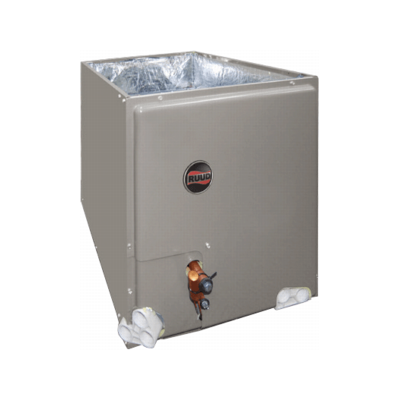

Ruud RCF2421MTAMCA n-coil 2 ton

Product Description

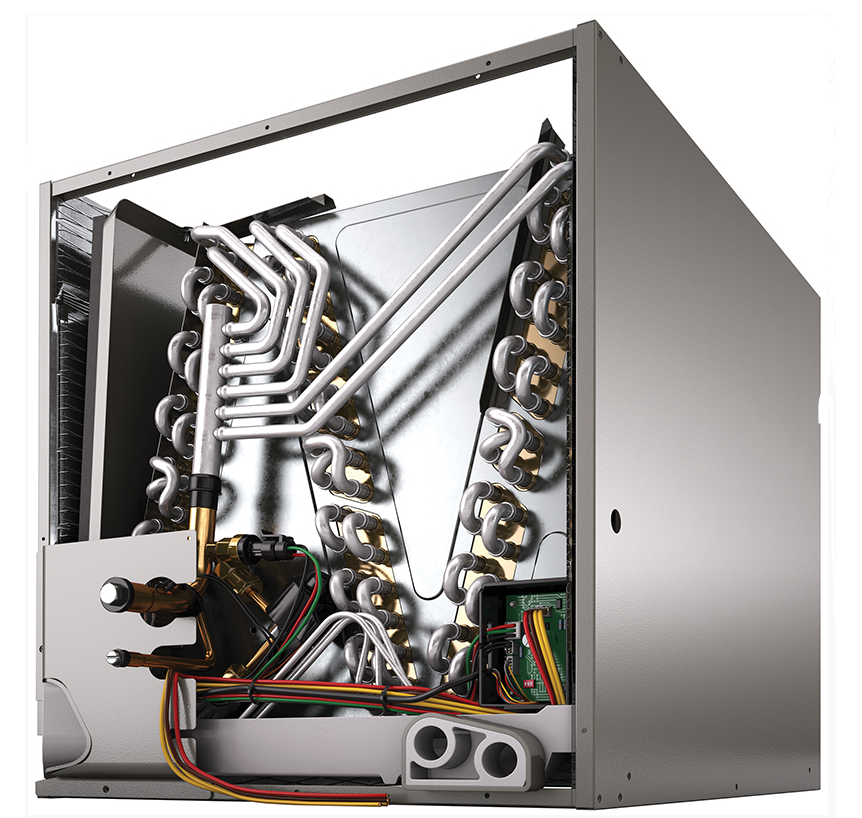

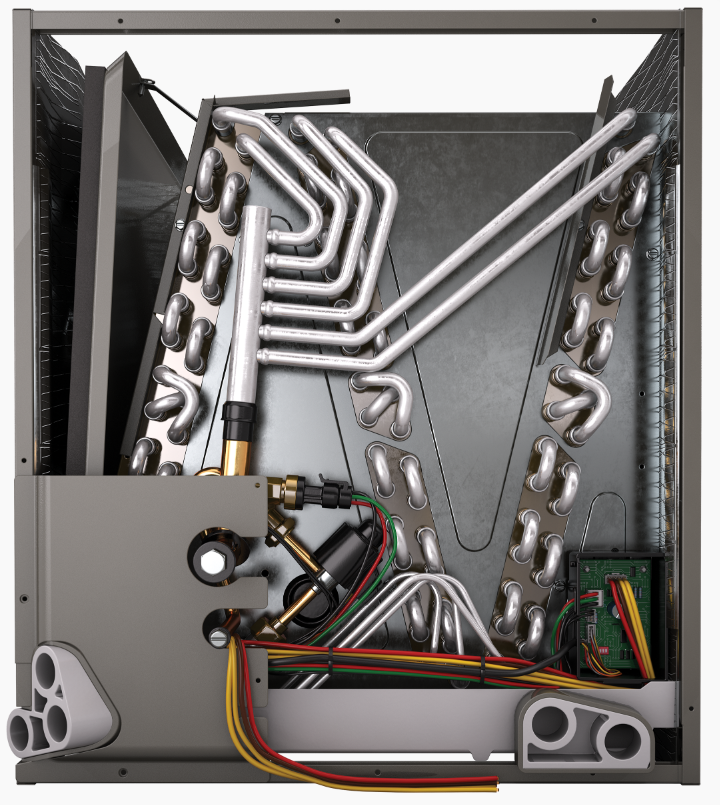

The Ruud RCF2421MTAMCA is an aluminum N-Coil designed for gas and oil furnaces. It features aluminum fins bonded to internally grooved aluminum tubing and is factory-tested with an extensive refrigerant leak check. Compatible with germicidal light systems, it also has bi-directional airflow that eliminates the need to switch any internal components.

• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Factory-tested with an extensive refrigerant leak check
• Copper sweat refrigerant connections

Product Highlights

This multi-poise N-Coil features copper connections and a unique drain pan design for application flexibility and condensate removal.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCF2421MTAMCA

Technical Specifications

• Application: Multi-Poise
• Cased-Uncased: Cased
• Depth: 21-11/16"
• Height: 20"
• Liquid Line Size: 3/8"
• Material: Aluminum/Aluminum
• Refrigerant: R-410A
• Style: N-Coil
• Suction Line Size: 3/4"
• Tons: 2
• Width: 21"
• Type: Cooling
• Cased: Yes
• BTU: 24000
• Nominal Capacity (Tons): 2
• Configuration: Multiposition
• Inlet Size: 3/8
• Outlet Size: 3/4
• Rows: 2
• Depth (inches): 21.6875
• Width (inches): 21
• Height (inches): 20
