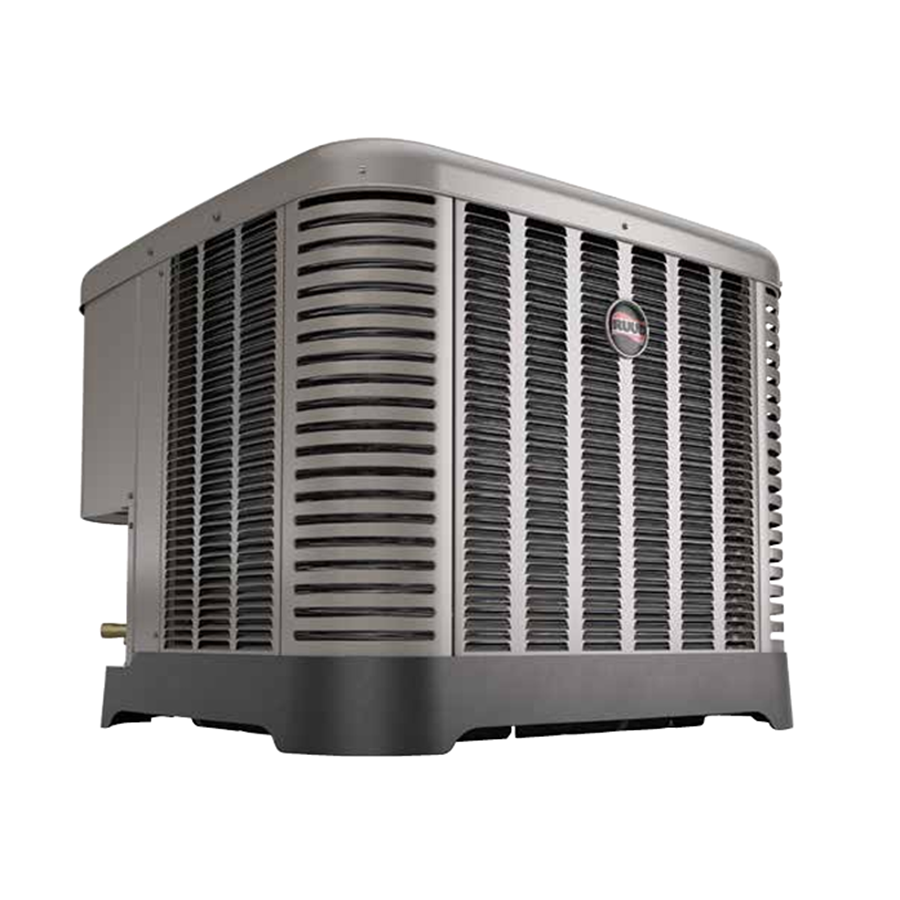

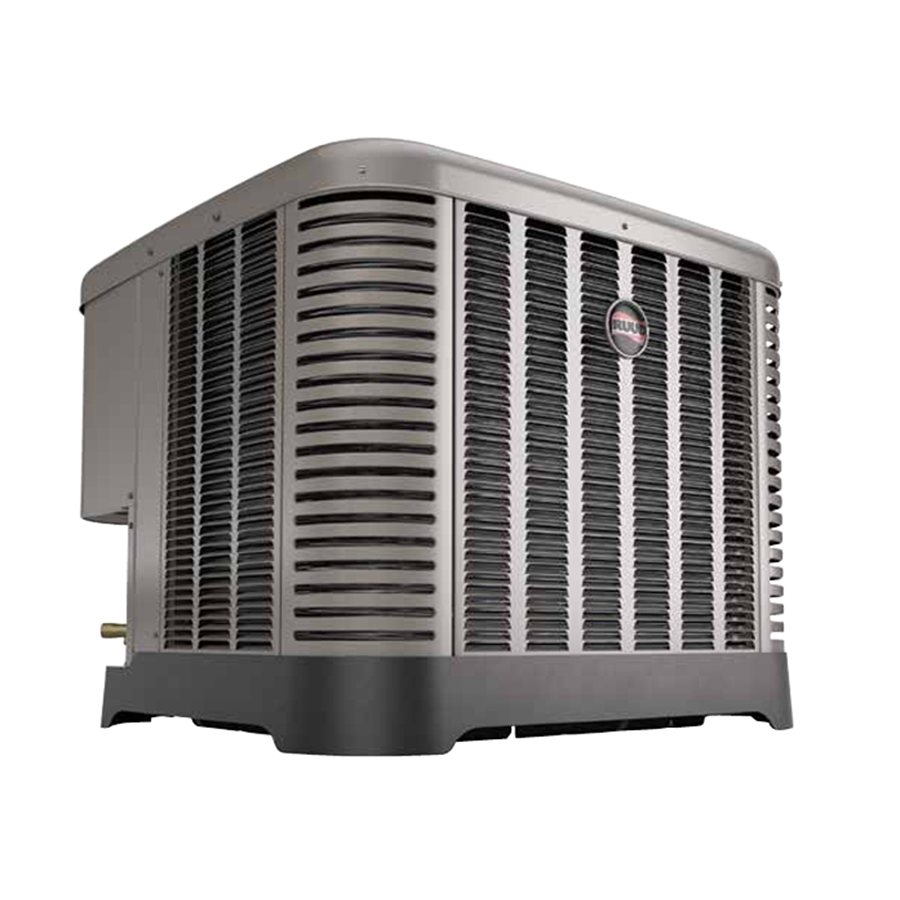

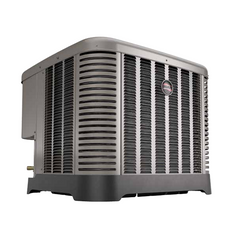

Ruud RA13NY60AJ1NALHP 5 Ton R454B 13 SEER2 Condensing Unit

Product Description

The RUUD RA13NY60AJ1NALHP is a 5-ton residential air conditioning condensing unit operating on R454B refrigerant at a 13 SEER2 efficiency rating. Rated at 60,000 BTU/h of cooling capacity, this unit serves as the outdoor section of a split-system cooling installation. It is designed for standard residential applications where current equipment efficiency and refrigerant transition requirements must be met. Licensed HVAC technicians install and commission this equipment as part of a matched split system. The M1 series designation identifies the product line and helps confirm proper matched-system pairing with compatible indoor coil and air handler components.

This condensing unit is suited for residential split-system cooling installations requiring 5-ton capacity. It uses R454B, a lower-GWP A2L refrigerant that reflects current industry transition requirements under updated refrigerant regulations. Installation must follow applicable local codes and manufacturer guidelines for A2L refrigerant handling, including requirements for leak detection where applicable. The unit is intended for outdoor installation as the condensing section paired with a matched indoor coil or air handler assembly.

Key Features

• 60,000 BTU/h cooling capacity rated for 5-ton residential applications
• 13 SEER2 efficiency rating meets current minimum efficiency standards
• R454B refrigerant charge — lower global warming potential A2L refrigerant
• M1 series platform designed for matched split-system pairing
• Outdoor condensing unit configuration for standard split-system installations

Compatibility

Designed as an OEM-style outdoor condensing unit for use in residential split-system cooling configurations requiring a 5-ton, R454B-compatible matched system assembly.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants. Disconnect and lock out all electrical power before servicing. R454B is a mildly flammable A2L refrigerant and requires compliance with applicable local codes and any jurisdiction-specific requirements for leak detection or ventilation in enclosed equipment spaces. Always follow the equipment manufacturer installation instructions and applicable mechanical and electrical codes for outdoor unit placement, clearances, and electrical connections.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h
• Nominal Tonnage: 5 tons
• Refrigerant: R454B
• Efficiency Rating: 13 SEER2
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA13NY60AJ1NALHP
