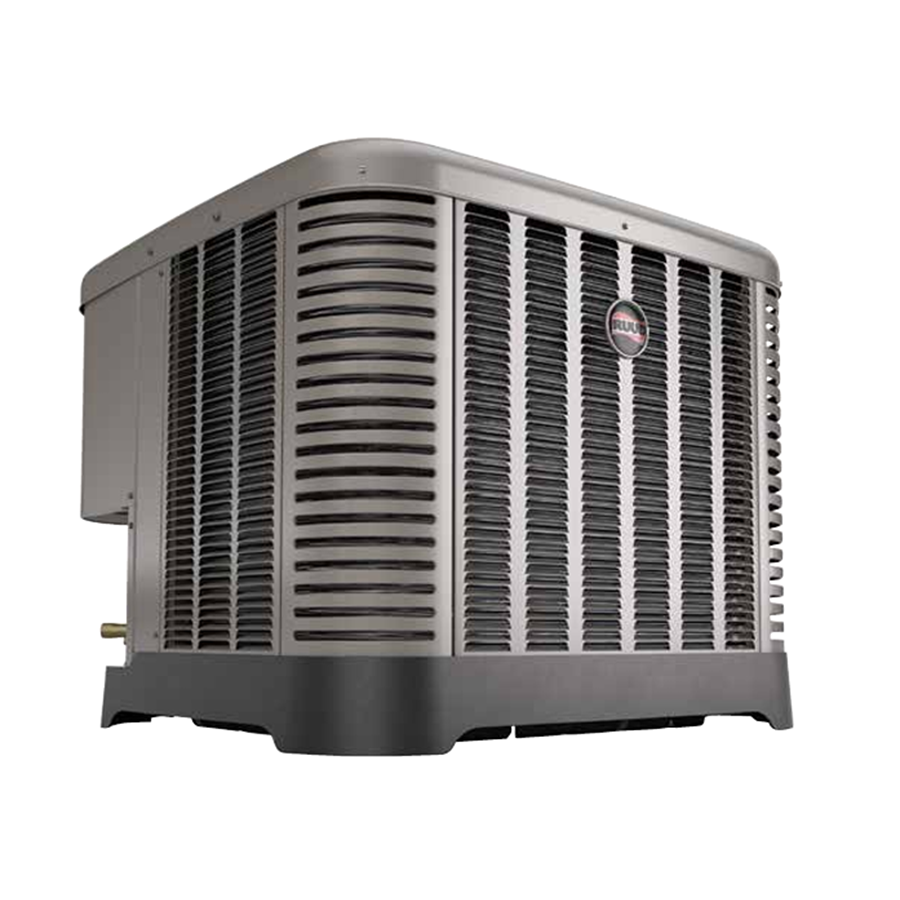

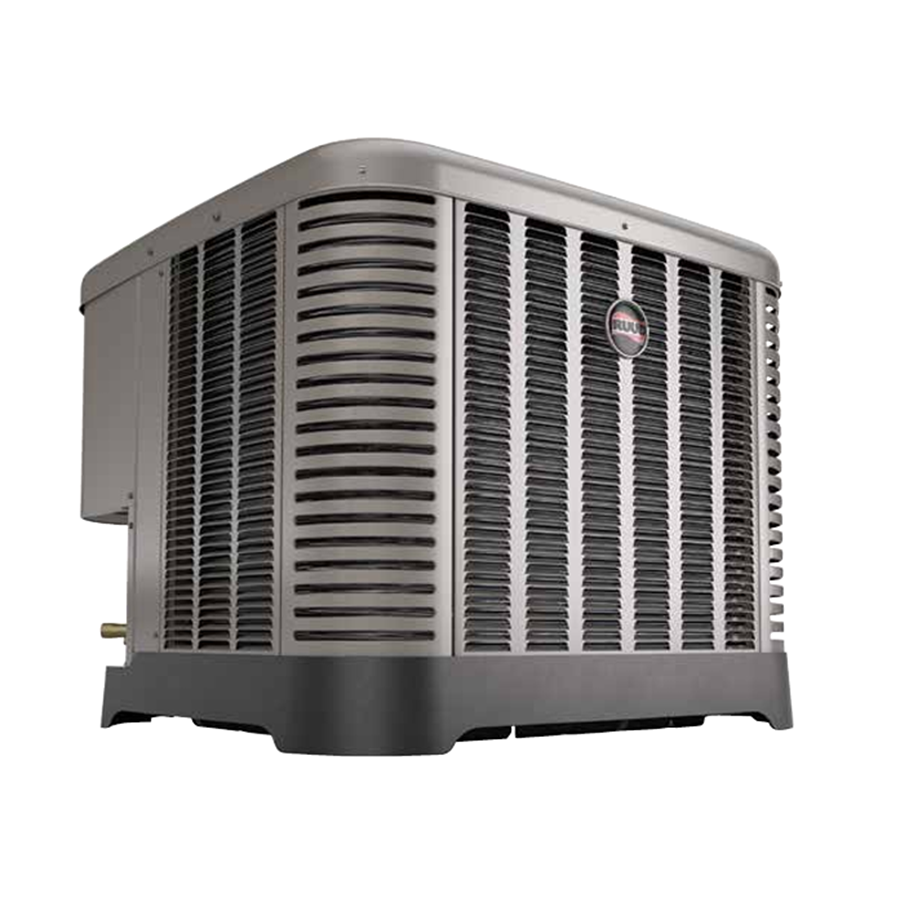

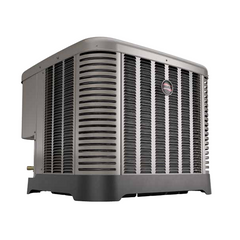

Ruud RA13NY30AJ1NALHP Condensing Unit 2.5 Ton R454B

Product Description

The RUUD RA13NY30AJ1NALHP is a residential split-system air conditioning condensing unit rated at 30,000 BTU/h (2.5 nominal tons) and 13 SEER2. It operates on R454B refrigerant, a lower-global-warming-potential refrigerant that meets current EPA regulatory requirements under the AIM Act. The unit is part of the RUUD M1 series and functions as the outdoor component of a split cooling system, rejecting heat from the refrigerant circuit to the outside air. Licensed HVAC technicians install and service this equipment.

This condensing unit is suited for residential cooling applications where a 2.5-ton capacity matches the calculated heat load of the structure. It pairs with a compatible indoor evaporator coil and air handler or furnace to form a complete split-system installation. The M1 series designation indicates a base-tier efficiency platform designed to meet current minimum federal SEER2 standards in applicable climate regions. It is appropriate for new construction and direct equipment replacement in residential settings.

Key Features

• 30,000 BTU/h cooling capacity at 2.5 nominal tons
• 13 SEER2 efficiency rating meets current minimum federal efficiency standards
• R454B refrigerant compliant with AIM Act low-GWP requirements
• Part of the RUUD M1 series outdoor condensing unit platform

Compatibility

Designed as an OEM-matched outdoor condensing unit intended for use in a split-system cooling or heat pump configuration with a compatible RUUD or Rheem indoor evaporator coil and air handler. Specific matched indoor components should be confirmed using RUUD's published AHRI-certified system combinations for this model.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to the use of R454B refrigerant, which is an A2L mildly flammable refrigerant class requiring adherence to current safety handling procedures. Disconnect and lock out all electrical power before servicing. Refer to ASHRAE 15, local mechanical codes, and the manufacturer installation instructions for clearance, refrigerant line sizing, and electrical supply requirements. Do not mix refrigerant types or use recovery equipment not rated for A2L refrigerants.

Technical Specifications

• Cooling Capacity: 30,000 BTU/h
• Nominal Tonnage: 2.5 tons
• Refrigerant: R454B
• SEER2: 13
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA13NY30AJ1NALHP
