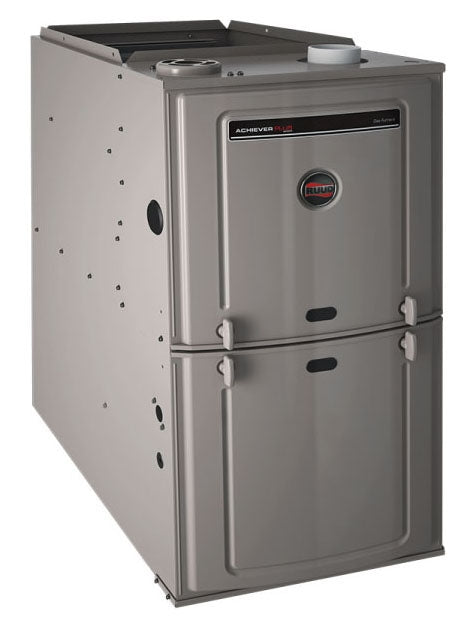

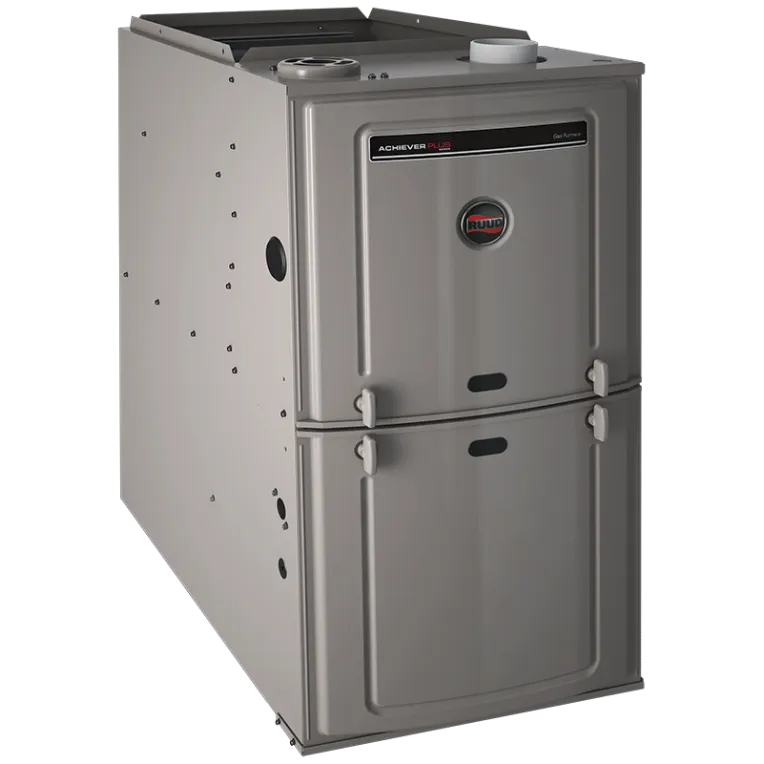

Ruud R801CA125524MSA Gas Furnace 125000 BTU

Product Description

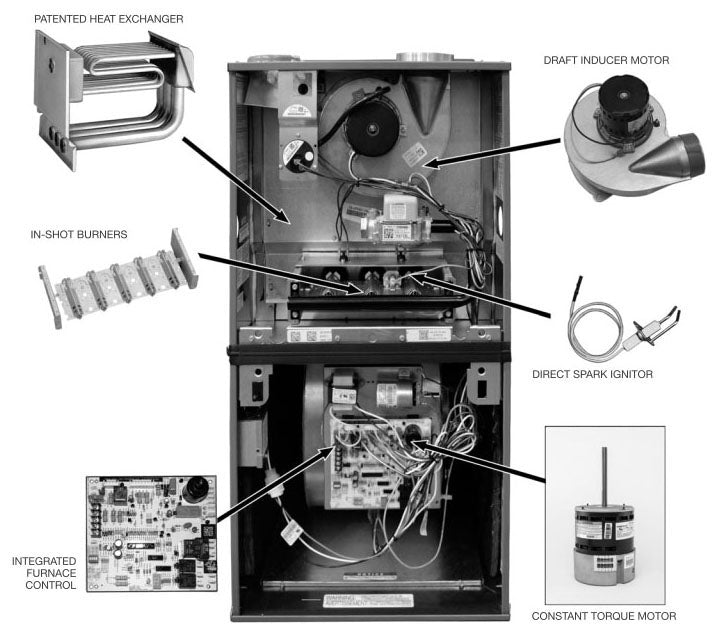

The Ruud R801CA125524MSA gas furnace is a 1-Stage, Upflow/Horizontal unit with a 125000 BTU per hour capacity. It features a constant torque electrically commutated motor and a removable heat exchanger made of aluminized steel for corrosion resistance. Designed for residential applications, it meets CSA (Canada and US) and AHRI standards.

• Heat exchanger is removable for improved serviceability.
• Solid doors provide quiet operation.
• Integrated Control board features dip switches for easy system set up.

Product Highlights

This Ruud gas furnace offers reliable heating with a focus on serviceability and quiet operation, suitable for various residential settings.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: R801CA125524MSA

Technical Specifications

• Btu Per Hour: 125000
• CATALOG NUMBER: R801CA125524MSA
• Capacity: 1844 CFM (Heating), 1950 CFM (Cooling)
• Control Type: 115 Volt AC 60 Hertz
• Gas Inlet Size: 1/2 Inch Threaded
• Inclusion Features: 1/4 Turn Door Knob, Dip Switch
• Manufacturer Name: Ruud
• Manufacturer Part Number: R801CA125524MSA
• Series/Model: R801C
• Type: 1-Stage, Upflow, Horizontal, Standard
• UNSPSC Code: 40101805
• Vent Size: 6 Inch
• Additional Information: Heating Capacity 100000 BTU/Hour; Temperature Rating 35 to 65 Deg F; Material Aluminized Steel; Application Residential; Applicable Standard CSA (Canada and US), AHRI
• Efficiency: 80%
• Ignition Type: Direct Ignition
• Maximum Air Flow: 1934
• Motor Type: ECM
• Nominal Capacity: 125,000 BTU
• Hertz: 50/60Hz
• Air Flow Configuration: Multi-Position
• Fuel Type: Natural Gas
• Gas Valve: Single Stage
• Input Heating Capacity: 125000
• Furnace Type: Gas Furnaces
• AFUE: 80%
• BTU: 125K
• Stages: 1STG
• Configuration: Upflow / Horizontal
• Cabinet Size: 24.5
• Stage: 1
• System Controls: NON-COMMUNICATING
