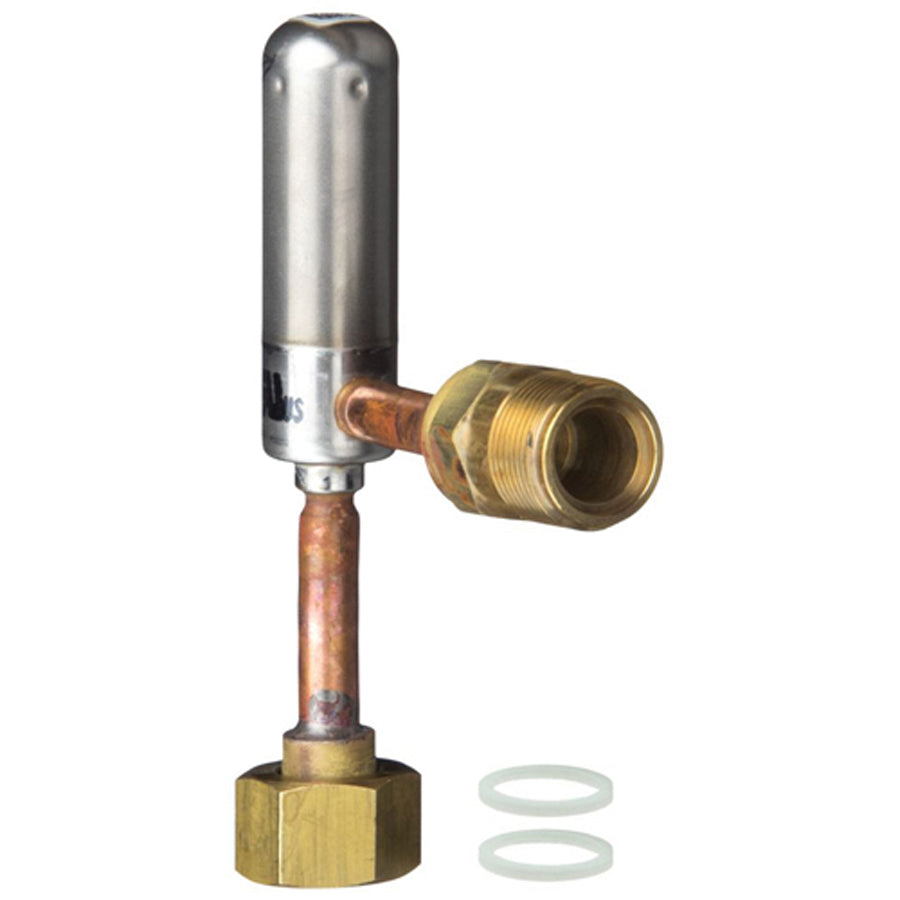

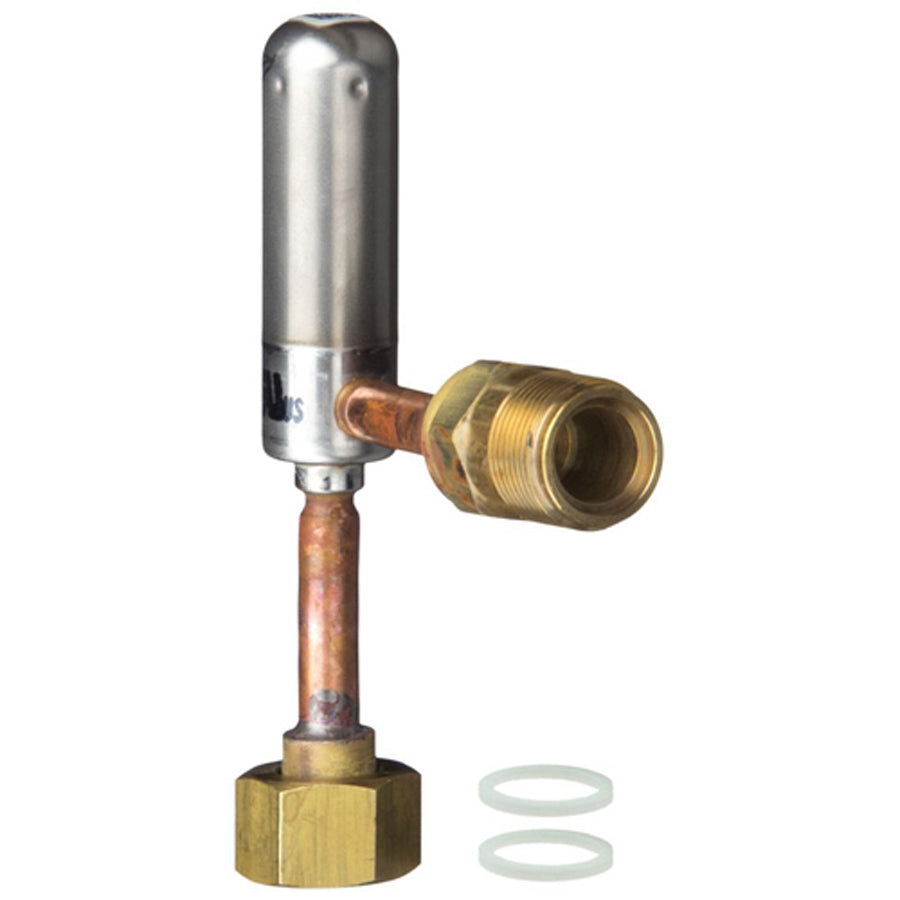

Ruud AS-106282-82 Electronic Expansion Valve Assembly

Product Description

The RUUD AS-106282-82 is an electronic expansion valve (EEV) assembly designed for use in RUUD RCF series furnaces. The assembly includes a Chatleff fitting connection, providing a secure refrigerant circuit interface. The EEV controls refrigerant flow into the evaporator coil by responding to signals from the system control board, allowing precise metering for efficient system operation. Measuring 4.0 inches in length, 3.0 inches in width, and 1.0 inch in height, this compact assembly weighs 2.0 pounds. Installation is performed by licensed HVAC technicians as part of refrigerant-side service or component replacement on compatible RCF series units.

This EEV assembly is used in RUUD RCF series residential furnace applications where electronic refrigerant metering is required. The Chatleff fitting style is specific to this assembly and must be matched during replacement. Compatible units include the RCF-2417SEAMCA, RCF-2417SEAVUA, RCF-2421UEAMCA, RCF-2421UEAVUA, RCF-3617SEAMCA, and RCF-3617SEAVUA. Always verify the unit model number against the parts list before ordering to confirm fitment.

Key Features

• Electronic expansion valve assembly with integrated Chatleff refrigerant fitting
• Provides precise refrigerant metering for efficient system performance
• Compact form factor: 4.0 inches long, 3.0 inches wide, 1.0 inch tall
• Lightweight at 2.0 pounds for straightforward handling during installation
• Direct OEM replacement for listed RUUD RCF series furnace models

Compatibility

Compatible with the following RUUD RCF series furnace models: RCF-2417SEAMCA, RCF-2417SEAVUA, RCF-2421UEAMCA, RCF-2421UEAVUA, RCF-3617SEAMCA, and RCF-3617SEAVUA.

Installation Notes

This assembly must be installed by a licensed HVAC technician, as the work involves refrigerant-side components subject to EPA Section 608 regulations. Recover all refrigerant and isolate the system before removing the existing EEV assembly. Verify the Chatleff fitting connection is properly seated and leak-tested after installation. Restore refrigerant charge according to the unit nameplate specifications before returning the system to service.

Technical Specifications

• Type: Electronic Expansion Valve Assembly
• Connection Type: Chatleff Fitting
• Length: 4.0 inches
• Width: 3.0 inches
• Height: 1.0 inch
• Weight: 2.0 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: AS-106282-82
