Ruud AE-103585-03 Solid Base Kit 24 Inch Cabinets

Product Description

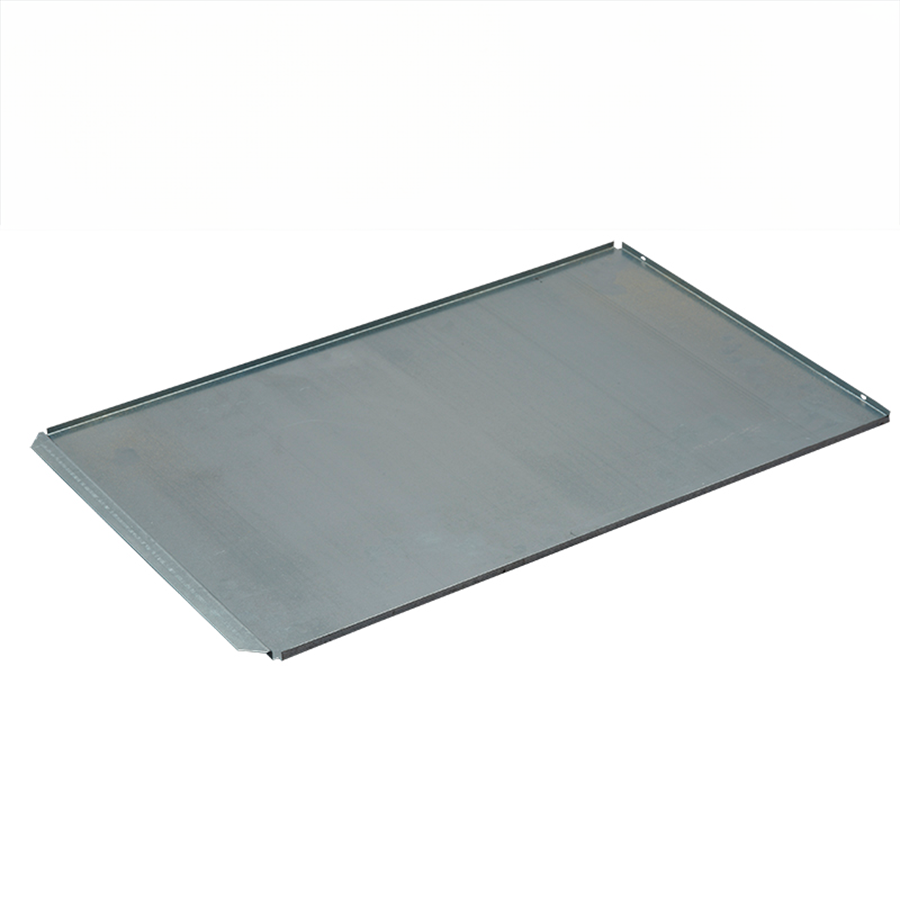

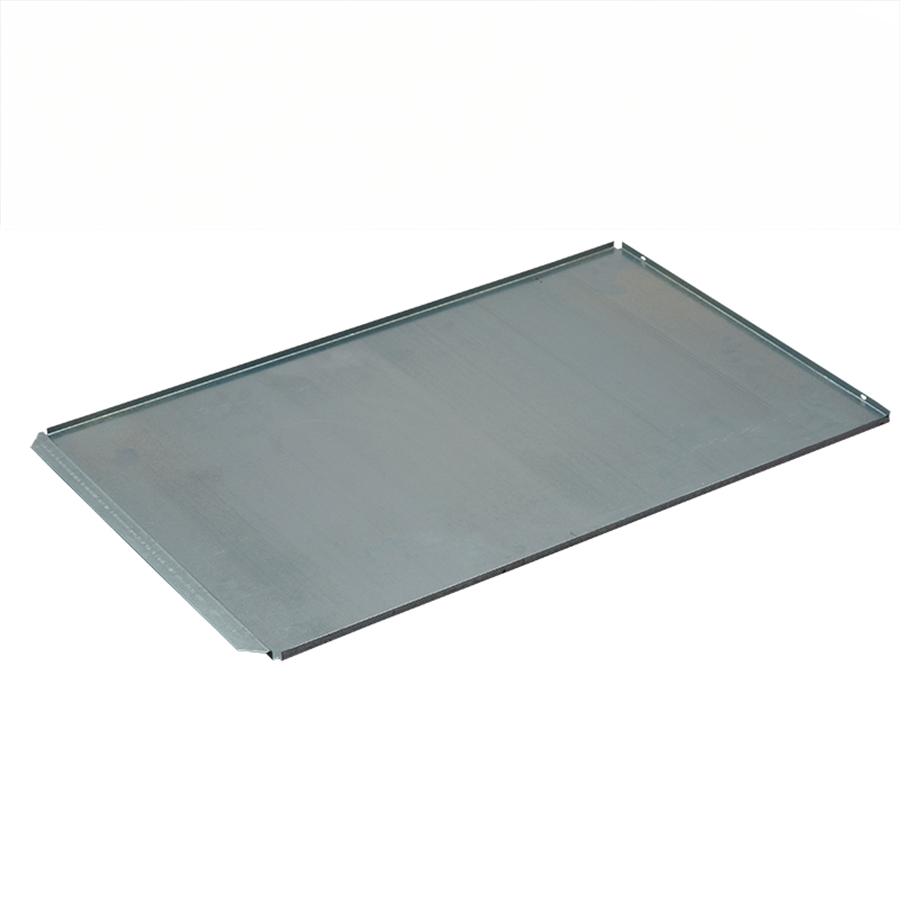

The RUUD AE-103585-03 is an OEM replacement solid base kit designed for 24-inch wide furnace cabinets. Constructed from durable sheet metal, this solid bottom forms the structural base of the cabinet assembly, providing the rigid foundation that the HVAC unit frame depends on for proper alignment and support. It is an exact-fit replacement part, meaning no modification or custom fabrication is required during installation. Licensed HVAC technicians performing furnace cabinet service or unit replacement will find this part a direct substitute for the original factory component.

This solid base kit is intended for use with 24-inch wide furnace cabinet configurations. It is compatible with RUUD gas furnace models in the R96VA, R97V-USA, R98MV, and R98V-USA series, making it a relevant service part for residential forced-air heating systems where the existing solid bottom has been damaged, corroded, or compromised. It is typically installed during major furnace service, cabinet repair, or full unit reassembly scenarios.

Key Features

• OEM exact-fit replacement — no modification required
• Sheet metal construction provides structural rigidity for cabinet base support
• Designed for 24-inch wide furnace cabinet configurations
• Compatible with R96VA, R97V-USA, R98MV, and R98V-USA series furnaces
• Direct factory-style substitution for damaged or worn solid bottoms

Compatibility

Compatible with RUUD furnace models in the R96VA, R97V-USA, R98MV, and R98V-USA series using 24-inch wide cabinets.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all electrical power to the furnace and shut off the gas supply before beginning any cabinet disassembly or component replacement. Standard sheet metal hand tools are typically required for removal and reinstallation of the base assembly. Verify cabinet width and model compatibility before ordering to confirm proper fit.

Technical Specifications

• Item Type: Solid Bottom
• Cabinet Width: 24 inches
• Material: Sheet Metal

Standard Information

• Brand: RUUD
• Manufacturer Part Number: AE-103585-03
