Ruud AE-103585-01 Solid Base Kit 17 Inch Wide Cabinet

Product Description

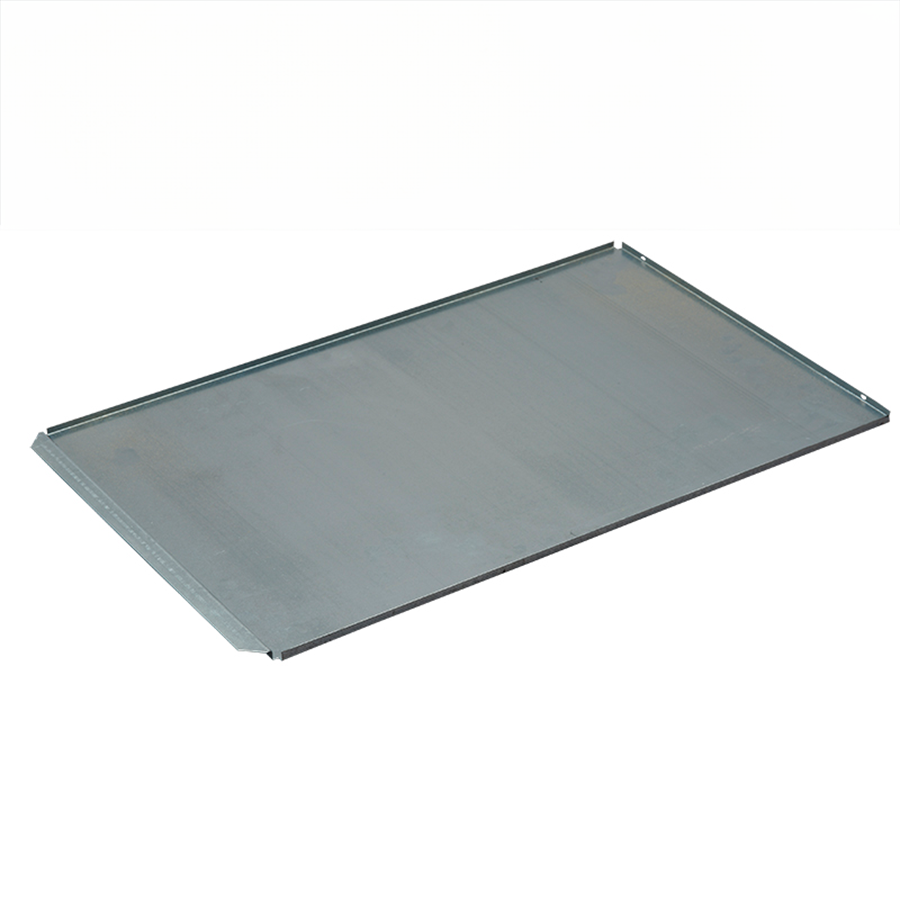

The RUUD AE-103585-01 is an OEM replacement solid base kit designed for 17-inch wide HVAC unit cabinets. Constructed from durable sheet metal, this base kit forms the structural foundation of compatible furnace or air handler cabinets. It provides a solid, stable bottom enclosure that supports the cabinet frame and internal components. Licensed HVAC technicians typically install this part during cabinet restoration or unit refurbishment when the original base has deteriorated or been damaged. The sheet metal construction delivers long-term rigidity and dimensional accuracy consistent with original factory specifications.

This base kit is intended for use with 17-inch wide HVAC unit cabinets in residential applications. It is suited for installations where the original solid bottom has failed or is missing entirely, restoring the structural integrity of the cabinet assembly. Compatible unit series include the R96VA, R97V-USA, R98MV, and R98V-USA. These are typically residential gas furnace product lines where cabinet fit and proper airflow containment are critical to system performance.

Key Features

• OEM replacement part engineered for exact fit in 17-inch wide HVAC cabinets
• Sheet metal construction provides structural durability and dimensional stability
• Solid bottom design encloses the cabinet base and supports the unit frame
• Direct replacement reduces field modification time during installation
• Compatible with multiple RUUD residential furnace series

Compatibility

Compatible with RUUD residential HVAC units in the following series: R96VA, R97V-USA, R98MV, and R98V-USA. Designed for use with 17-inch wide unit cabinets as an OEM-style solid bottom replacement.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the breaker and shut off the gas supply before beginning any cabinet disassembly or base replacement work. Verify cabinet width and unit model compatibility before installation to ensure proper fit. Follow local mechanical codes and the manufacturer service documentation throughout the procedure.

Technical Specifications

• Item Type: Solid Bottom
• Cabinet Width: 17 inches
• Material: Sheet Metal

Standard Information

• Brand: RUUD
• Manufacturer Part Number: AE-103585-01
