Ruud 70-102345-01 Fan Blade 24 Inch 3-blade Ccw

Product Description

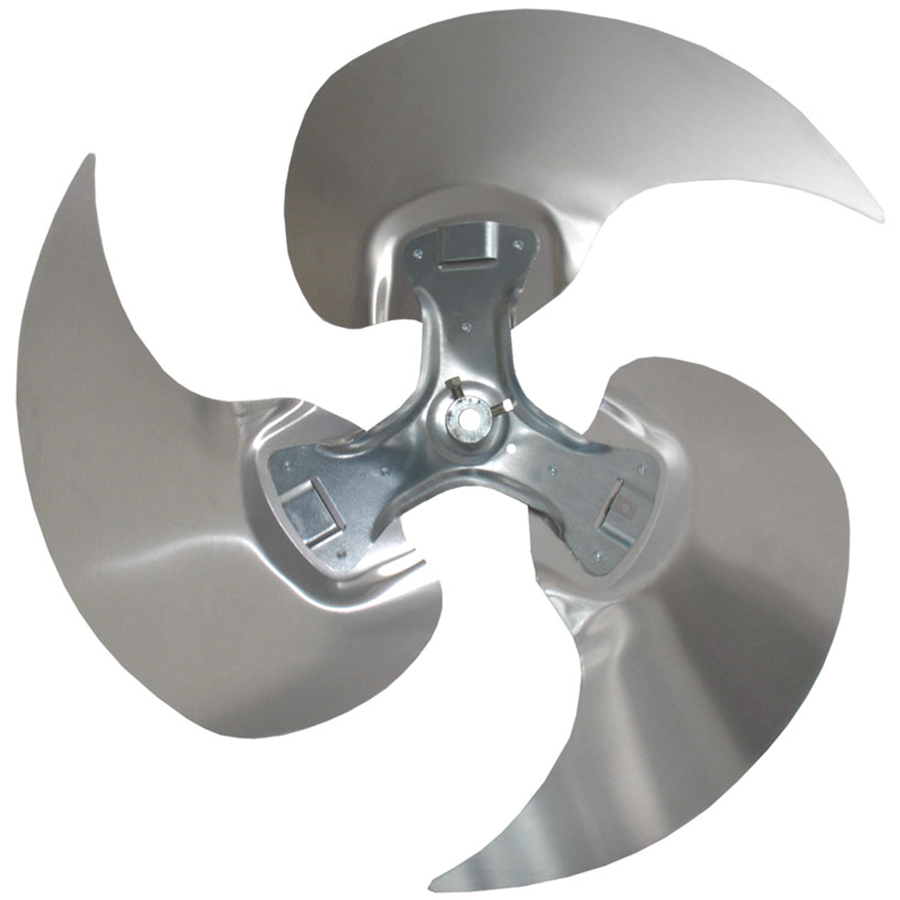

The RUUD 70-102345-01 is a three-blade axial impeller fan blade designed as a direct replacement for residential and commercial HVAC systems. Measuring 24 inches in overall diameter with a 26-degree pitch and a 1/2-inch bore diameter, this blade delivers consistent airflow performance suited to condenser and air handler fan assemblies. The hub is located on the inlet side, and the blade rotates counterclockwise (CCW) when viewed from the air discharge side. Construction uses galvanized steel and aluminum, providing corrosion resistance and structural durability in outdoor and mechanical room environments. Licensed HVAC technicians handling condenser unit service or fan motor replacements will find this blade ready for standard fitment procedures.

This fan blade is suited for both residential and light commercial HVAC applications where a 24-inch, three-blade CCW axial impeller is required. Typical installations include rooftop condensing units, split-system outdoor sections, and packaged unit fan assemblies. The configurable design accommodates a range of project needs, making it a practical stock item for service contractors managing diverse equipment in the field.

Key Features

• 24-inch overall diameter axial impeller for high-volume airflow in condenser and fan applications
• Counterclockwise (CCW) rotation as viewed from the air discharge side
• 26-degree blade pitch for optimized airflow performance
• 1/2-inch bore diameter with hub located on the inlet side
• Galvanized steel and aluminum construction for corrosion resistance and long service life
• Suitable for both residential and commercial HVAC installations

Compatibility

Designed as an OEM-style replacement axial fan blade for residential and commercial HVAC condensing units and air handler fan assemblies requiring a 24-inch, three-blade, CCW impeller with a 1/2-inch bore.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out electrical power to the unit before removing the existing fan blade or motor assembly. Verify that blade rotation direction, bore diameter, pitch, and hub location match the original equipment specifications before securing the blade to the motor shaft. Follow all applicable local mechanical codes and manufacturer torque guidance for set-screw fasteners on the motor shaft.

Technical Specifications

• Overall Diameter: 24 inches
• Number of Blades: 3
• Rotation: CCW (facing air discharge side)
• Pitch: 26 degrees
• Bore Diameter: 0.5 inches
• Hub Location: Inlet Side
• Material: Galvanized Steel and Aluminum

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 70-102345-01
