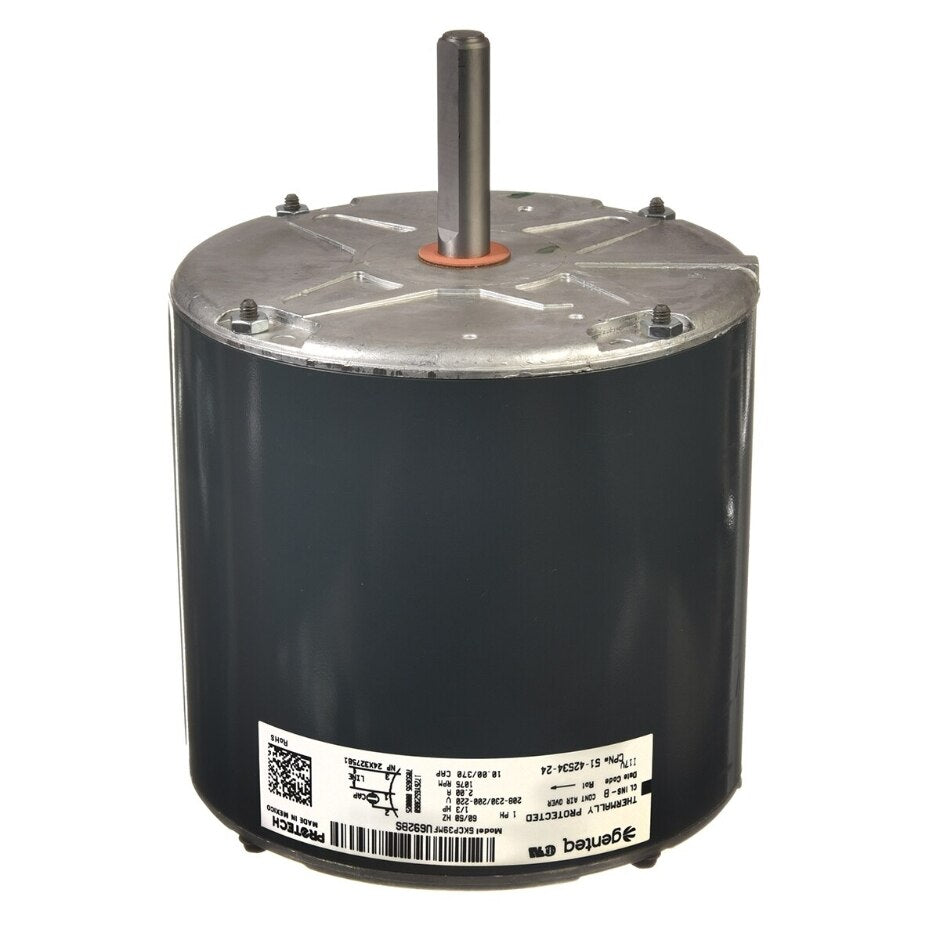

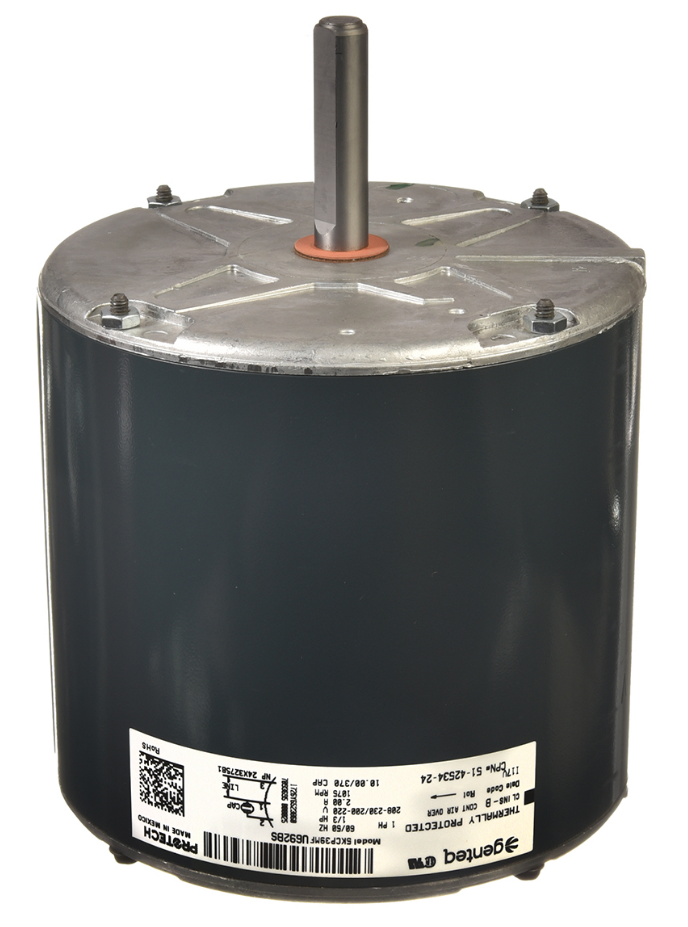

RUUD 51-42534-24 Condenser Motor 1/3 HP 208-230V 1-Speed

Product Description

The RUUD 51-42534-24 is a condenser motor that operates at 208-230 volts. This motor is suitable for various condenser applications and is built for single-phase power. It delivers a reliable performance of one-third horsepower at a speed of 1075 RPM.

• Direct drive motor for various condenser applications.
• Single-phase operation at 208-230V.
• Provides 1/3 HP with a consistent speed of 1075 RPM.

Product Highlights

This condenser motor is suitable for use in fans, blowers, and pumps. It features a robust steel frame and aluminum flange, ensuring durability and efficiency.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-42534-24

Technical Specifications

• Application: Condenser
• Horsepower: 1/3 HP
• Input Voltage: 208 | 220 | 230 V
• Frequency: 50 | 60 Hz
• Number of Phases: 1
• RPM: 1075
• Speeds: 1
• Drive Type: Direct Drive
• Bearing Type: Ball
• Frame Size: 48
• Motor Body Diameter: 6-5/8 inches
• Overall Motor Length: 7-9/16 inches
• Shaft Length: 2-1/16 inches
• Shaft Diameter: 1/2 inches
• Mounting Type: End-boss | Shell-band
• Approximate Weight: 10.55 lbs
