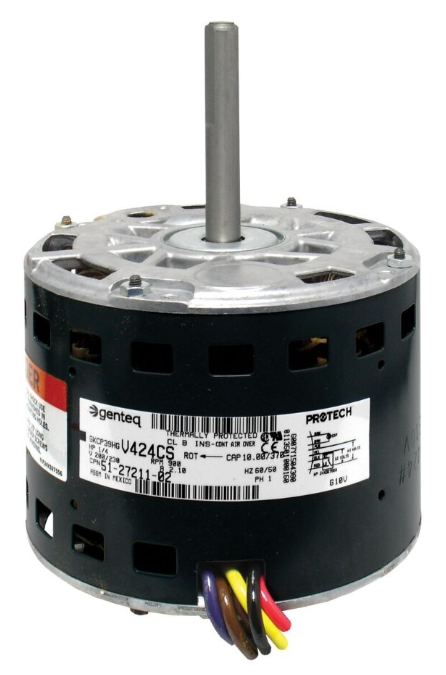

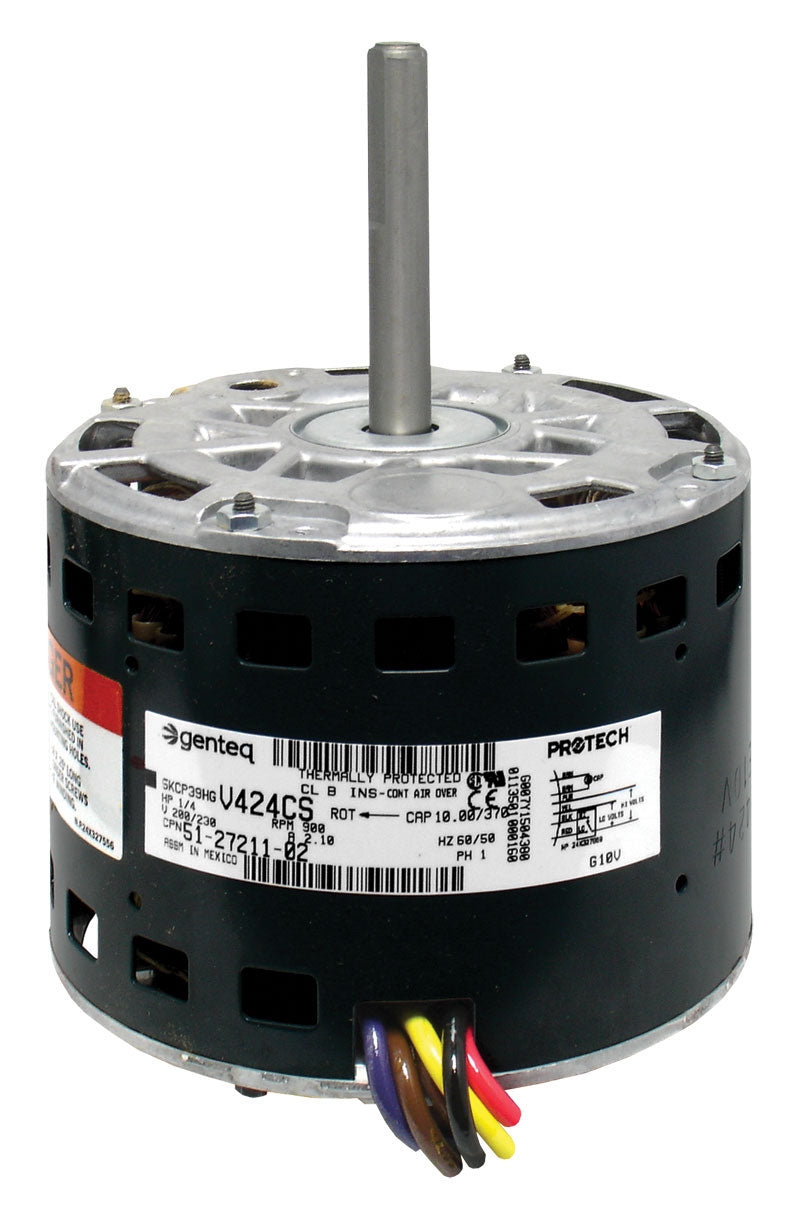

RUUD 51-27211-02 Blower Motor 1/4 hp 208 to 230 VAC

Product Description

The RUUD 51-27211-02 is a blower motor that is suited for HVAC setups. It operates within a voltage range of two hundred eight to two hundred thirty VAC, making it reliable for various heating and cooling systems.

• Rated at 1/4 hp with a speed of 825 rpm.
• Single-phase with counter-clockwise rotation.
• Comes with sleeve bearing for durability.

Product Highlights

This motor is essential for efficient air circulation, featuring a compact design for straightforward installation. Ideal for direct drive applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-27211-02

Technical Specifications

• Bearing Type: Sleeve
• Dimensions: 5-5/8 inches diameter x 7-13/16 inches length
• Drive Type: Direct
• Mounting Type: Shell screw, shell band
• Number of Speeds: 2
• Rotation Type: Counter-clockwise
• Shaft Size: 1/2 inches diameter x 3-5/16 inches length
• Input Voltage: 208 to 230 VAC
• Output Current: 2.1 A full load
• HP Rating: 1/4 hp
• Speed Rating: 825 rpm
• Phase: 1 phase
• Frequency Rating: 50 Hz, 60 Hz
• Frame Size: 48
• Motor Type: Blower Motor
