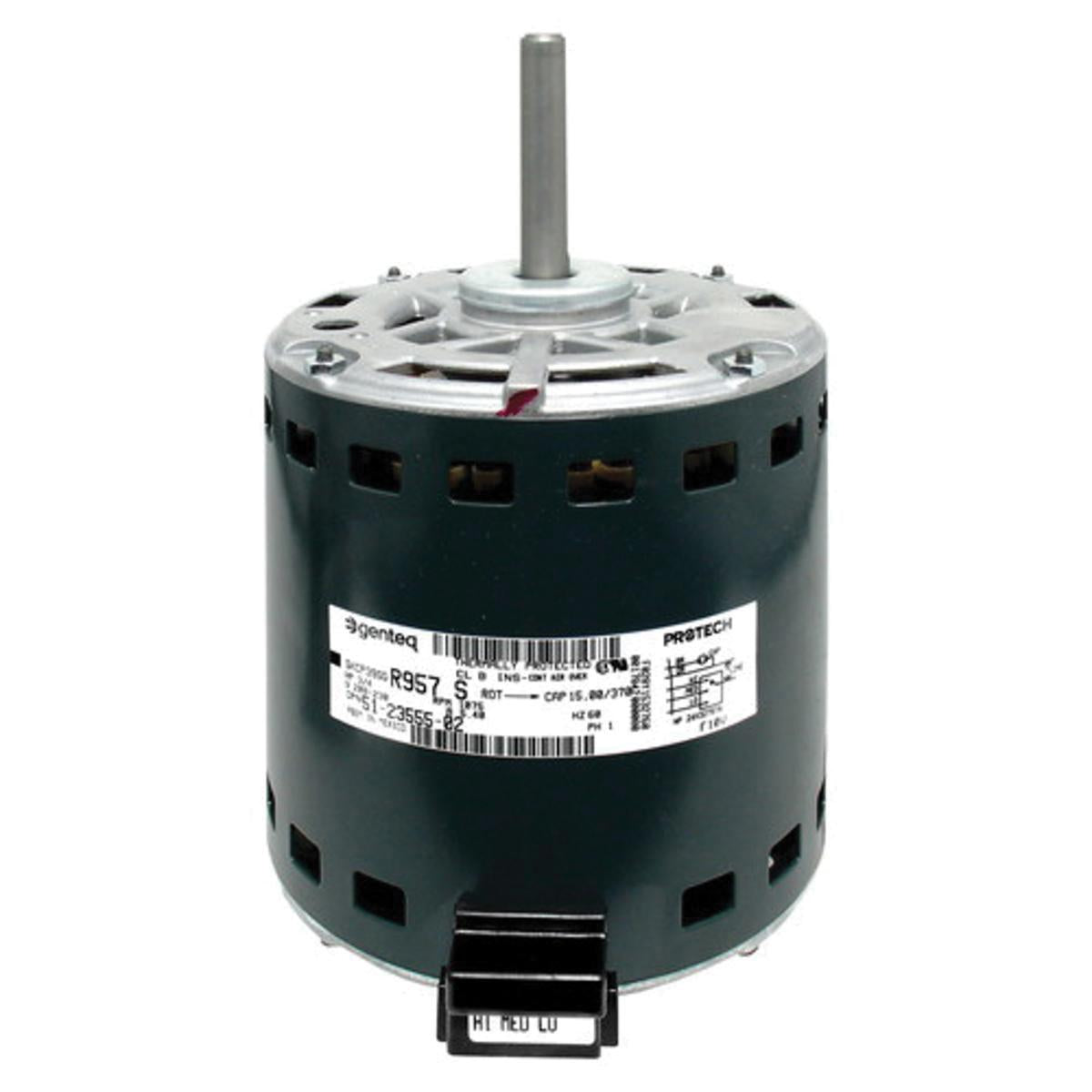

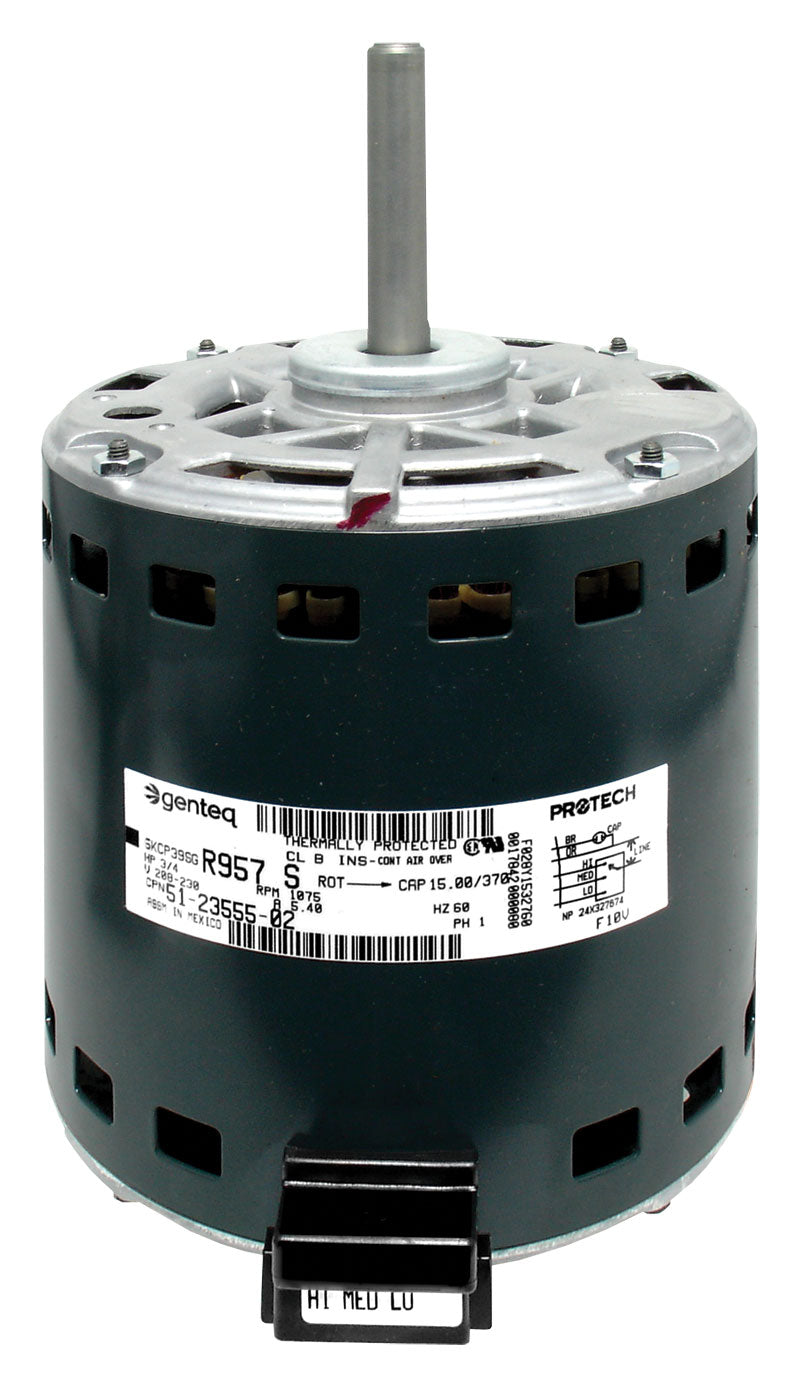

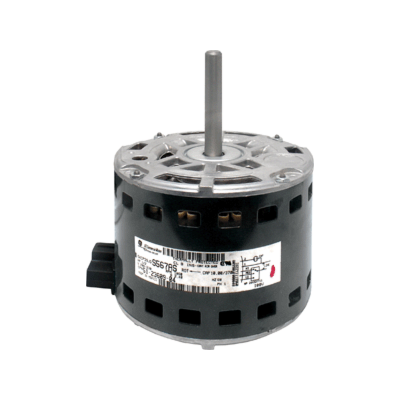

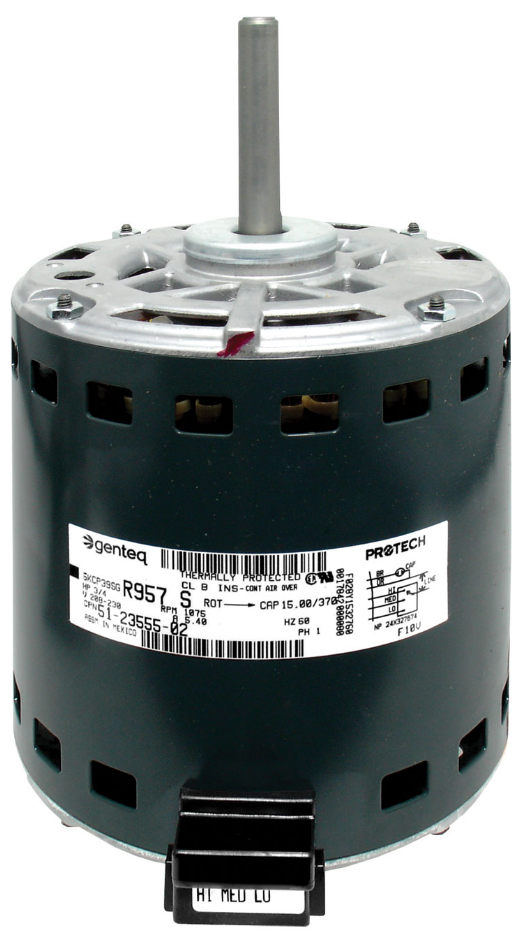

RUUD 51-23555-02 Blower Motor 3/4 HP

Product Description

The RUUD 51-23555-02 is a blower motor suitable for indoor applications. It operates effectively on a voltage range of two hundred eight to two hundred thirty volts, and has a three-quarter horsepower rating. The motor runs at a speed of one thousand seventy-five revolutions per minute and supports three operating speeds.

• Operates at 208 to 230V, 60 Hz
• 3/4 HP motor with 1075 RPM
• Three-speed functionality with direct drive

Product Highlights

Designed for reliable operation, this motor is perfect for various heating, ventilation, and air conditioning applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-23555-02

Technical Specifications

• Voltage Rating: 208 to 230 V
• Full Load Amperage: 5.4 A
• Horsepower: 3/4 hp
• Speed: 1075 rpm
• Phase: 1 ph
• Frequency: 60 Hz
• Frame Size: 48
• Bearing Type: Sleeve
• Drive Type: Direct
• Mounting Type: Shell Band
• Number of Speeds: 3
• Rotation Type: Clockwise Opposite Shaft End
• Shaft Size: 1/2 in Dia x 2-3/4 in L
• Capacitor: 15mfd/370V
• Diameter: 5-5/8
• Height: 6.90 in
• Length: 14.55 in
• Weight: 19.71 lb
• Width: 7.25 in
