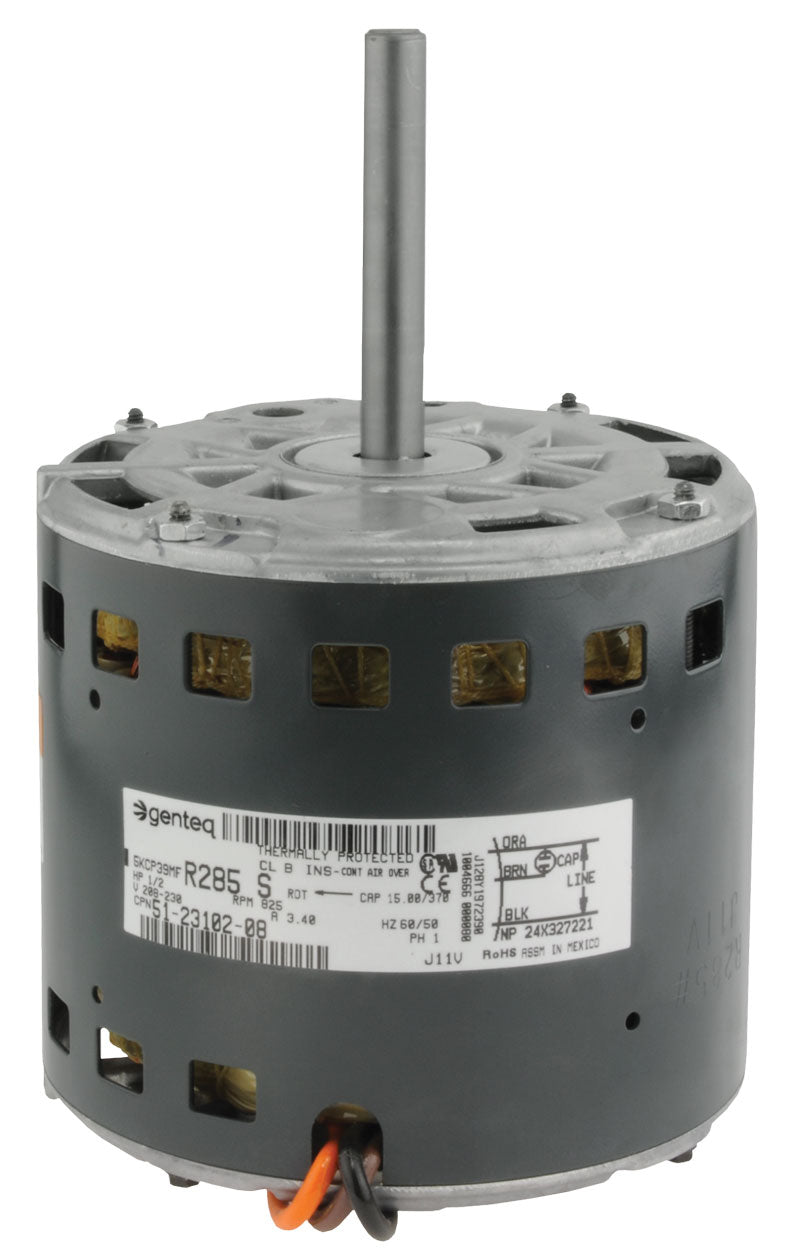

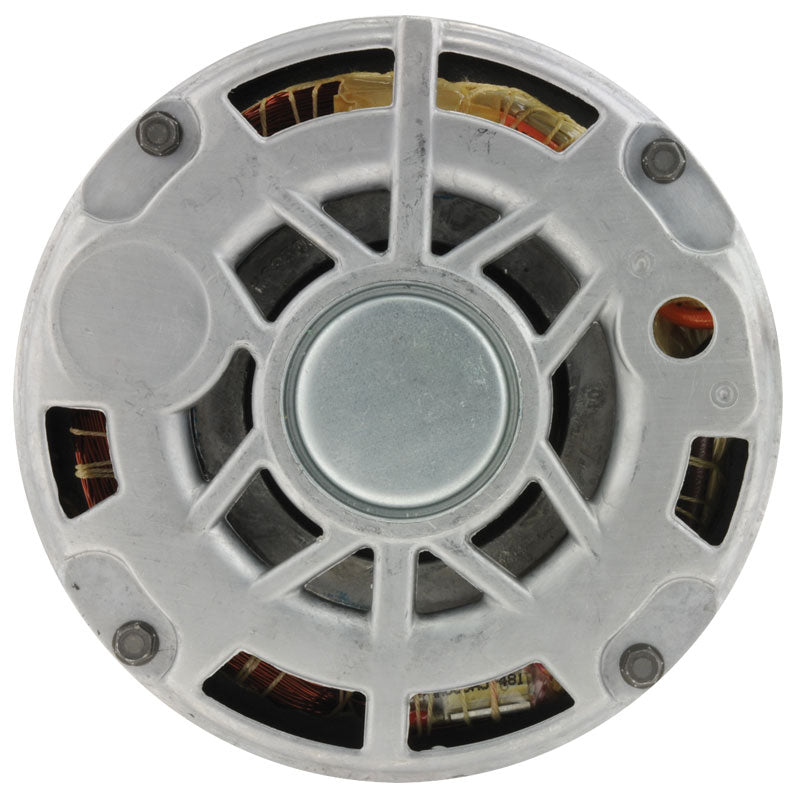

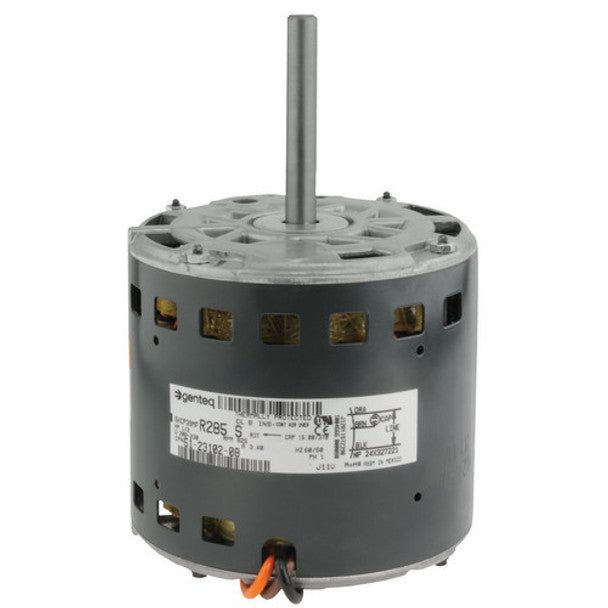

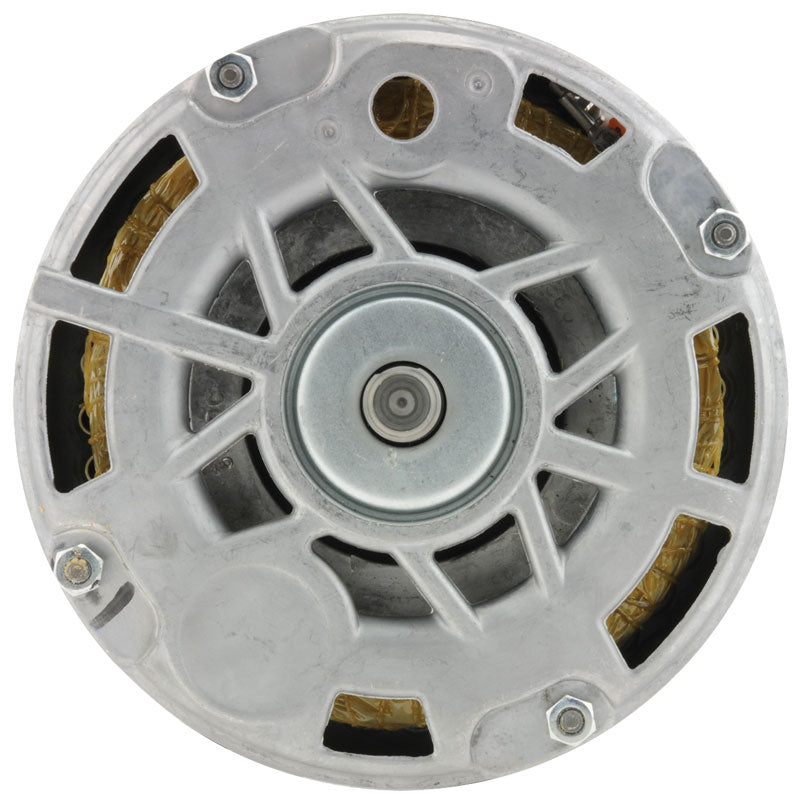

RUUD 51-23102-08 Blower Motor 1/2 HP 208-230V

Product Description

The RUUD 51-23102-08 is a reliable blower motor with a power rating of half a horsepower. This motor operates at eight hundred twenty-five RPM and supports input voltages of two hundred eight to two hundred thirty volts. It has a frame size of forty-eight and includes a shaft with a diameter of one-half inch. This motor serves as an OEM replacement for models from Rheem, Ruud, and Weatherking, making it a versatile option for various HVAC applications.

• Motor Application: Blower PSC
• Rotation Direction: CCW
• Compatible with Rheem, Ruud, and Weatherking models

Product Highlights

This blower motor is designed for durability and efficiency in HVAC systems. It is suited for use in a range of cooling and heating applications, ensuring proper airflow and system performance.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-23102-08

Technical Specifications

• Horse Power: 1/2
• Number of Speeds: 1
• High Speed (RPM): 825
• Input Voltage: 208-230/1/50-60
• Run Capacitor (uF/V): 15/370
• FLA at 230V (A): 3.4
• LRA at 230V (A): 4.7
• Shaft Diameter (inches): 1/2
• Motor Body Diameter (inches): 5-5/8
• Keyed/Flat Shaft Length (inches): 1-1/2
• Overall Shaft Length (inches): 3-1/4
• Motor Body Length (inches): 5
• Overall Motor Length (inches): 8-1/4
• Mounting Type: Shell-band/Shell-screw
• Bearing Type: Sleeve
• Frame Size: 48
