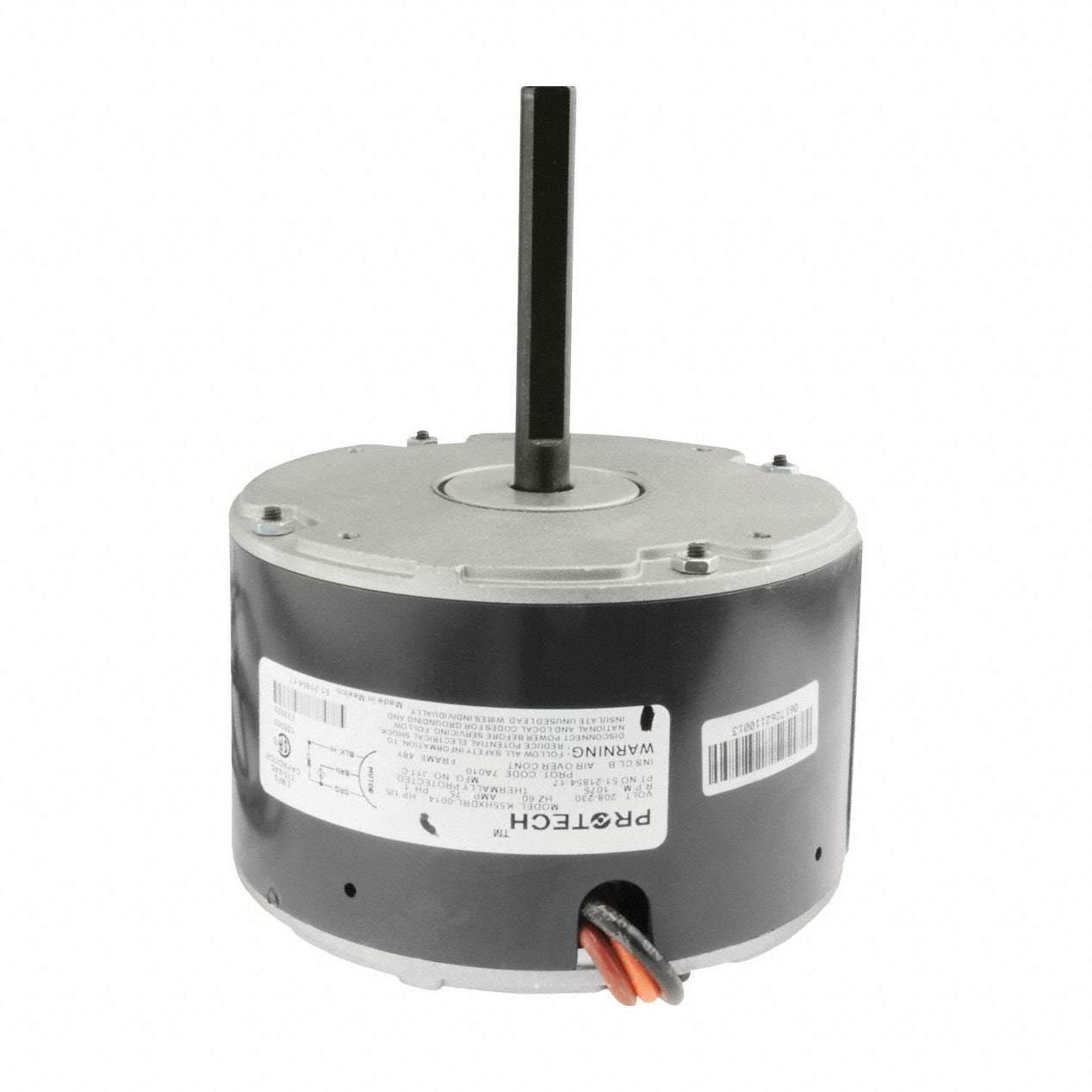

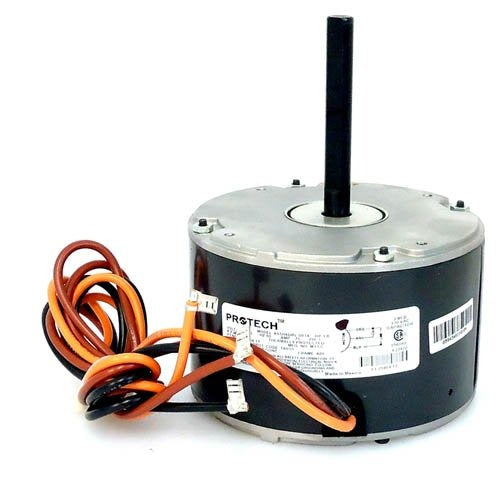

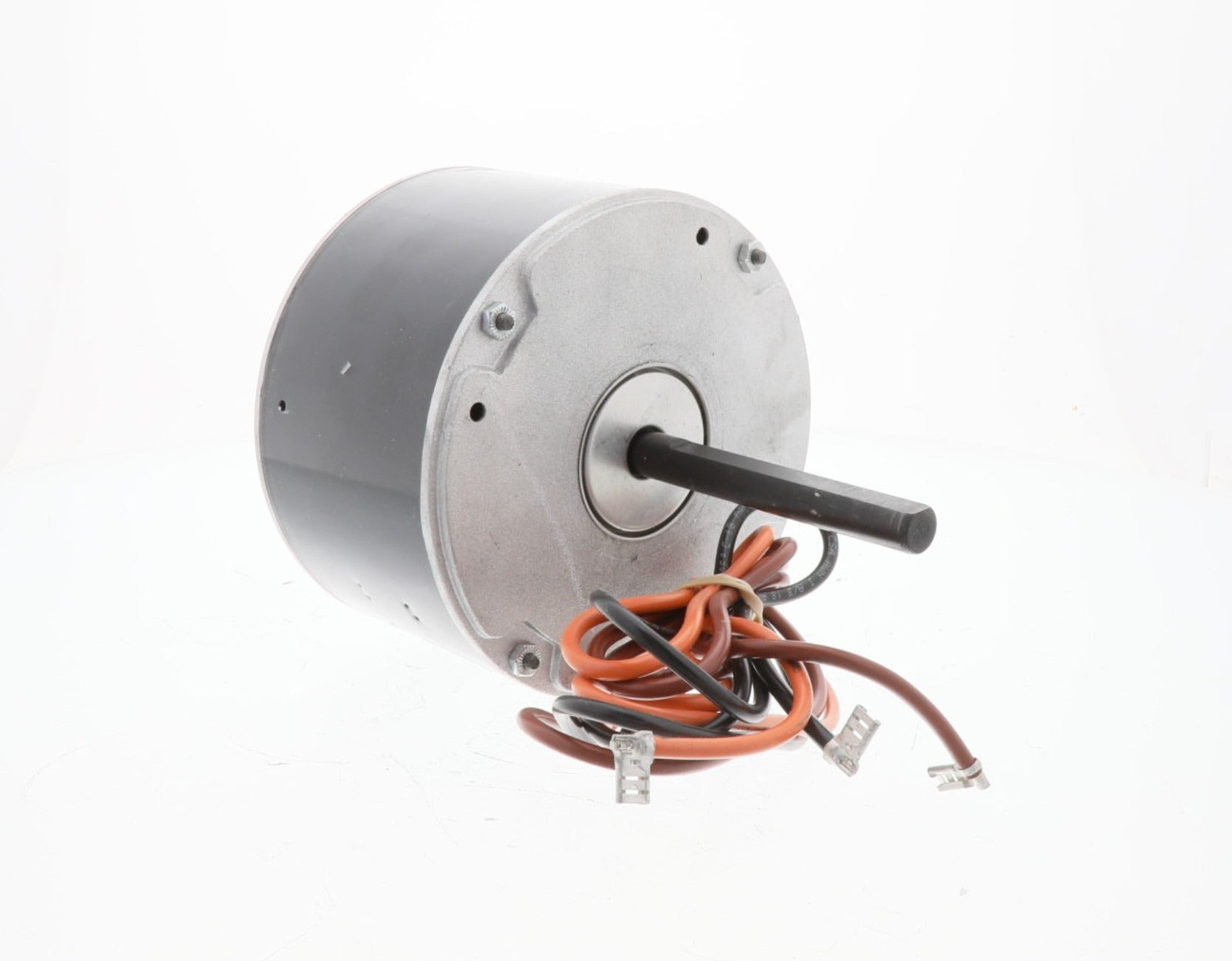

Ruud 51-21854-17 Condenser Fan Motor 1/6 HP (1075 RPM) Replacement 174384

Product Description

Ruud 51-21854-17 is a 1/6 HP condenser fan motor rated for 208-230 V and 1075 RPM for use in HVAC condenser fan applications. The single-phase, single-speed motor uses a permanent split capacitor design with sleeve bearings and direct drive. Nameplate data lists a full load current of approximately 0.75 A and a 60 Hz frequency; mounting is by belly band and the motor rotation is CCWSE.

• 1/6 HP, single-phase condenser fan motor operating at 208-230 V and 60 Hz
• Single-speed 1075 RPM, permanent split capacitor design with sleeve bearings and direct drive
• Belly band mounting; shaft: 1/2 in diameter, 3-11/16 in length; nameplate full load current ~0.75 A

Product Highlights

Condenser fan replacement motor for Ruud/Rheem units, 1/6 HP, 208-230 V, 1075 RPM

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-21854-17
• Country of Origin: Mexico
