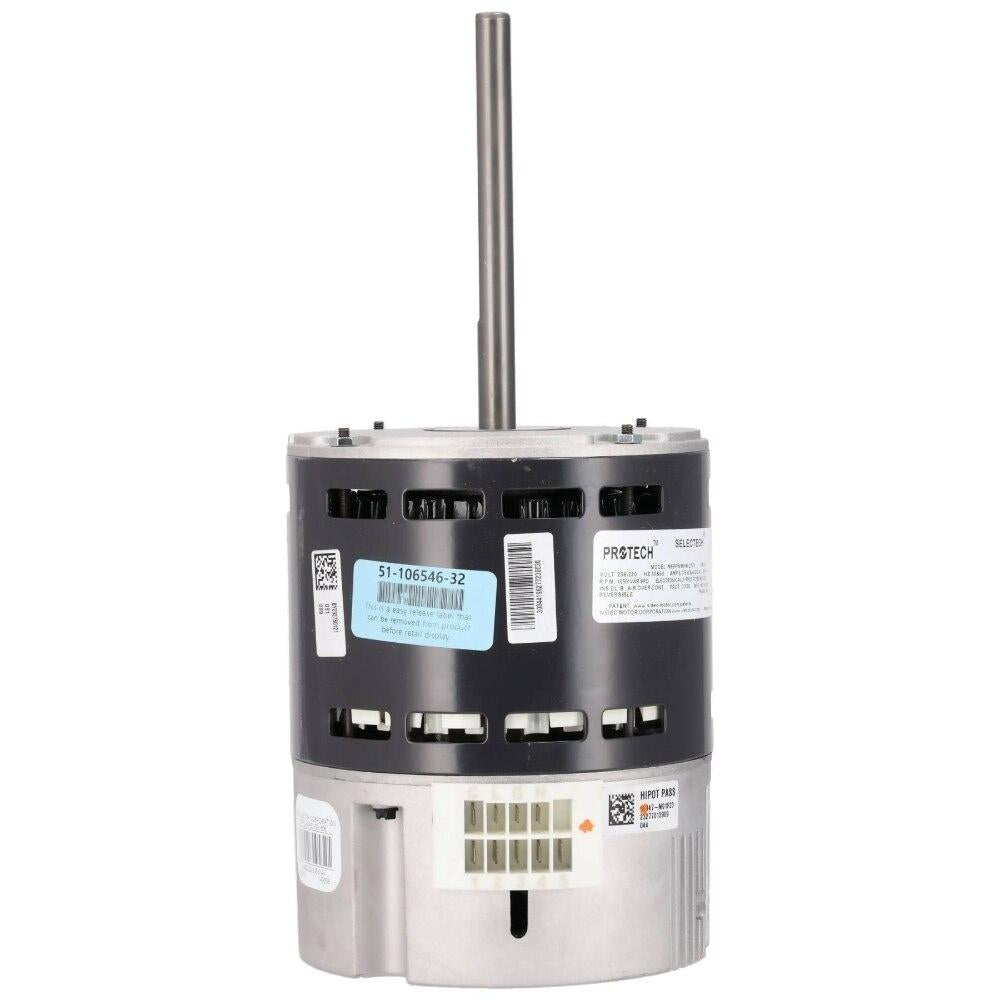

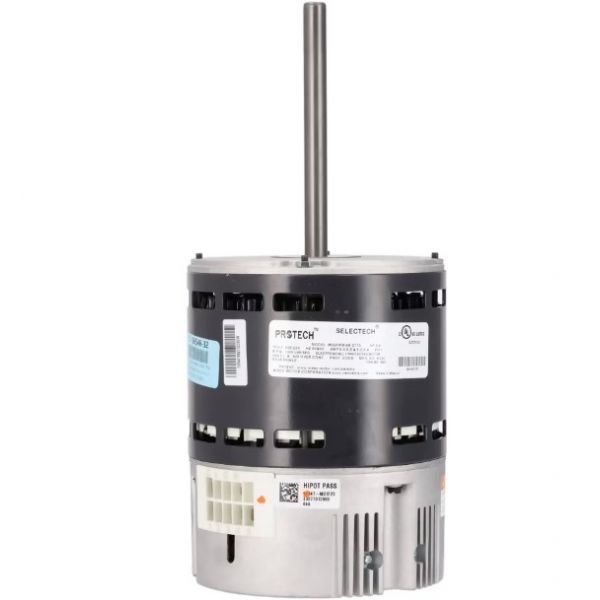

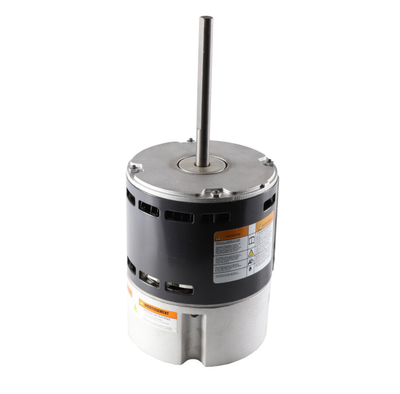

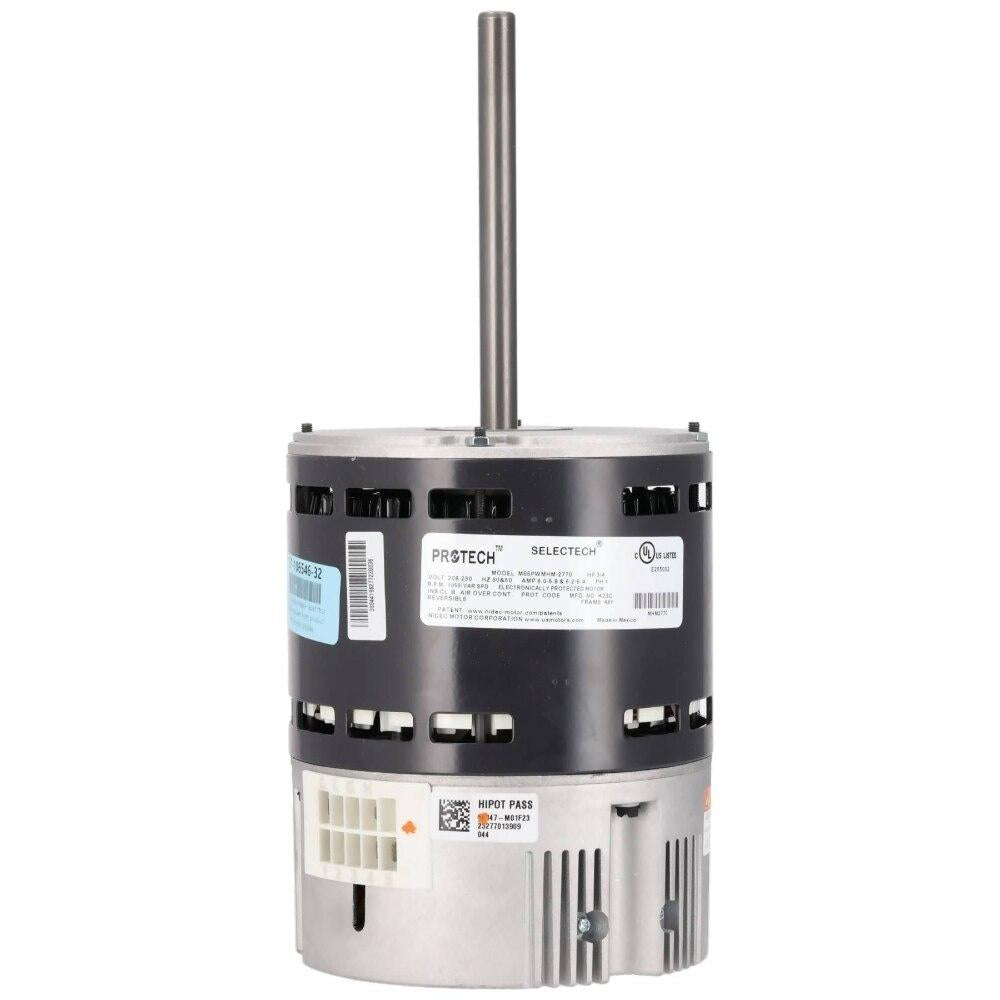

RUUD 51-106546-32 Variable Speed Condenser Motor

Product Description

The RUUD 51-106546-32 is a variable speed condenser motor that operates at 208-230 volts. This motor is intended for use in HVAC systems, pumps, and fans, facilitating airflow control and improving temperature management. It is designed with a three-quarter horsepower rating making it suitable for direct drive applications.

• Variable speed operation for enhanced efficiency
• Compatible with various condensers
• Features a 48Y frame size

Product Highlights

This motor offers reliable performance in a range of applications, helping HVAC professionals maintain optimal conditions.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-106546-32

Technical Specifications

• Type: Condenser
• Series: SelecTech Gen 3
• Horsepower: 3/4 HP
• Voltage: 208-230V
• Frequency: 60 Hz
• Frame Size: 48Y Frame
• Shaft Diameter: 1/2 inch
• Shaft Length: 5-1/2 inches
• Bearing Type: Ball
• Mounting Type: Shell-Band
• Overall Width: 12-9/16 inches
• Drive Type: Direct Drive
