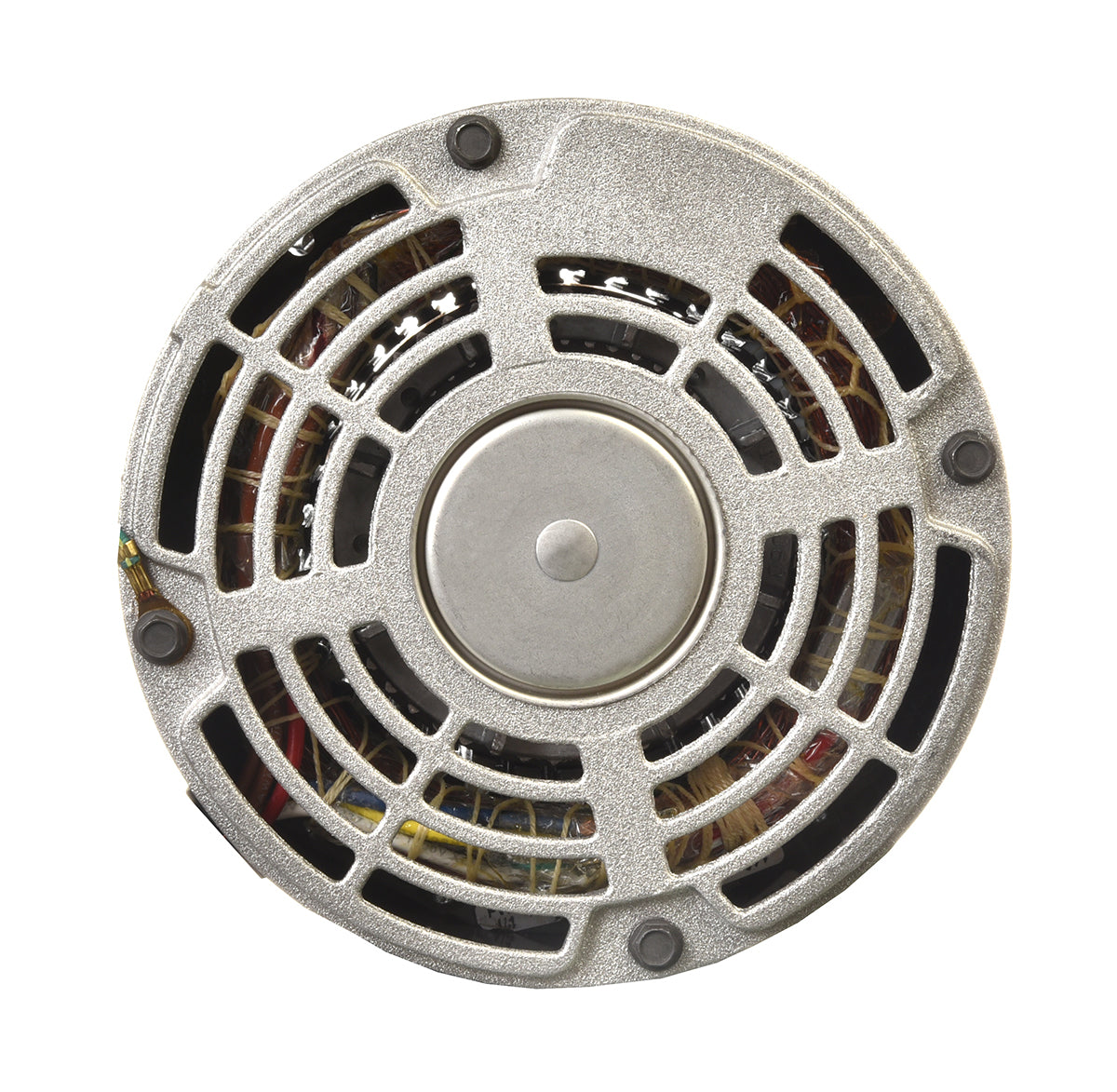

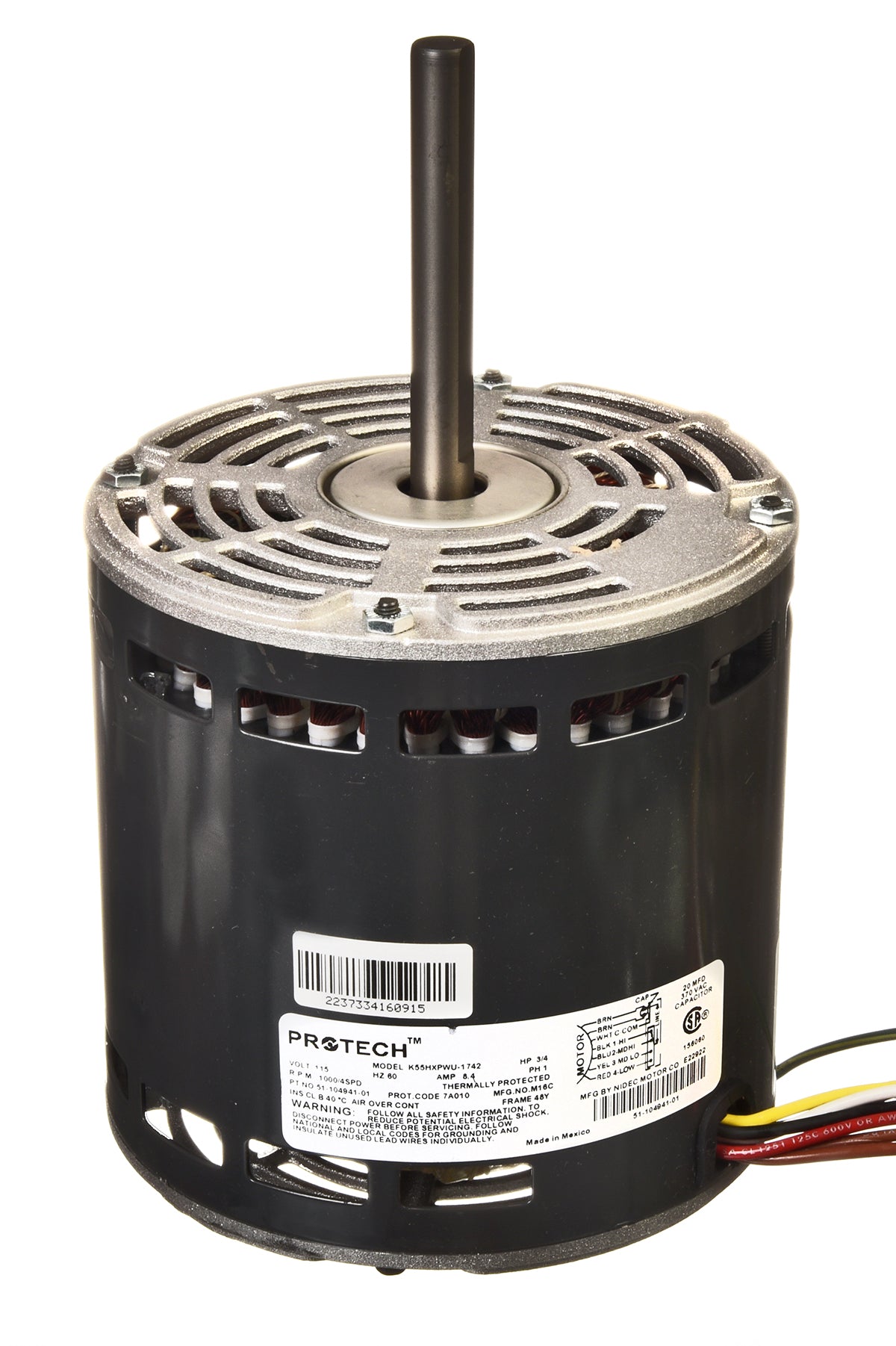

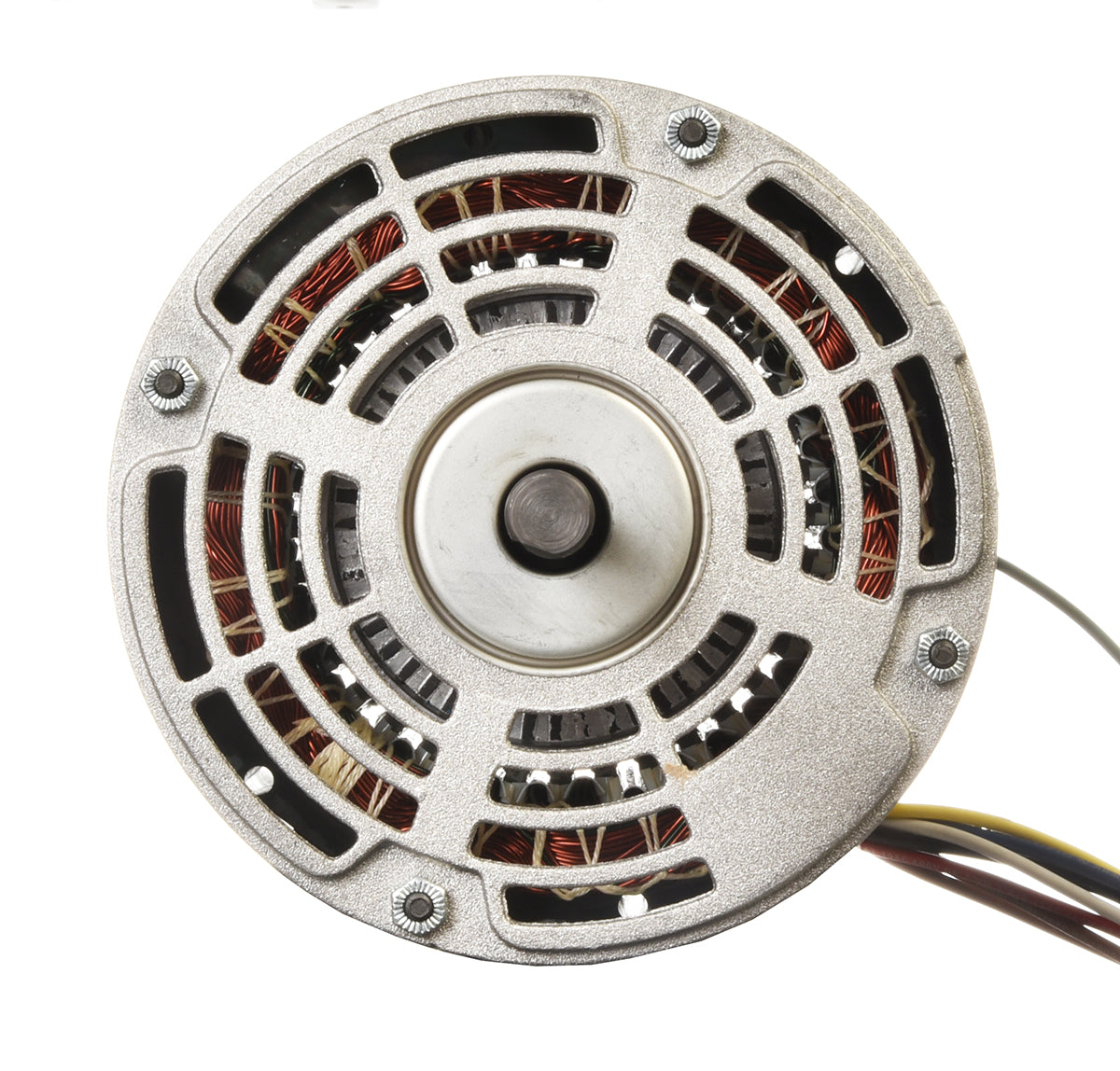

Ruud 51-104941-01 Motor -3/4 hp(4speed) R/01

Product Description

The RUUD 51-104941-01 blower motor is essential for regulated and improved air circulation, quality, distribution and room temperature control. The function of a blower motor in HVAC systems is to drive the blower fan that circulates air from your furnace or AC system into the home. By maintaining steady airflow, it enhances system performance and provides a comfortable, healthy indoor environment.

• Essential for regulated and improved air circulation
• Drives the blower fan that circulates air
• Enhances system performance and provides a comfortable, healthy indoor environment

Product Highlights

This RUUD blower motor is designed to improve air circulation and maintain a comfortable indoor environment by driving the blower fan in HVAC systems.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-104941-01

Technical Specifications

• Application: Motor Blower PSC
• Horse Power: 3/4
• Speeds: 4
• High Speed (RPM): 1075
• Input Voltage: 120/1/60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 20/370
• FLA at 120V (A): 8.4
• LRA at 120V (A): 14.3
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 3
• Overall Shaft Length (in.): 3-1/2
• Motor Body Length (in.): 5-9/16
• Overall Motor Length (in.): 9-1/16
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Ball
• Brand: Rheem
• Manufacturer: Rheem
• Product Type: Blower Motor
