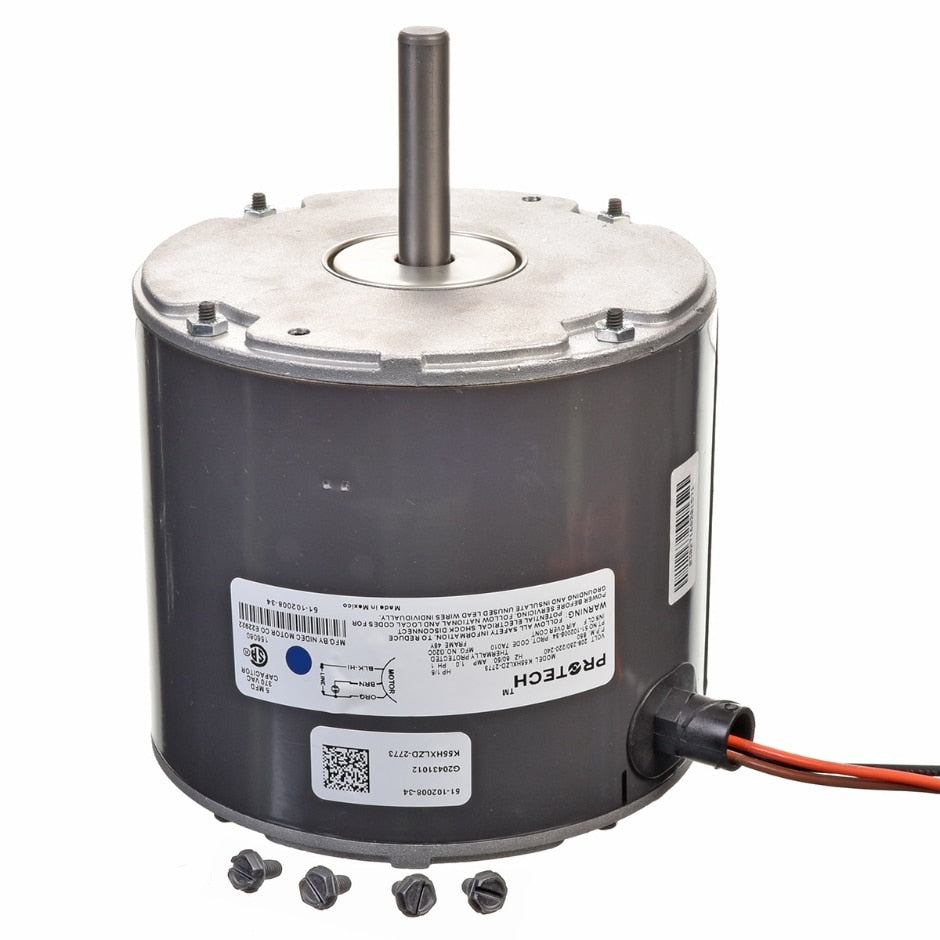

Ruud 51-102008-34 Condenser Fan Motor 1/5 Hp 825 Rpm

Product Description

The RUUD 51-102008-34 is a PSC condenser fan motor designed for outdoor refrigeration and air conditioning equipment. Rated at 1/5 HP and 825 RPM, it operates on 208/230 volt single-phase power at 50/60 Hz, making it suitable for both domestic and export applications. Full-load amperage at 230 volts is 1 amp, with a locked-rotor amperage of 2.4 amps. The motor uses a 5 MFD/370-volt run capacitor and rotates counterclockwise when viewed from the shaft end. Ball bearings support reliable operation in outdoor condenser environments. Licensed HVAC technicians install this motor as a service replacement in residential and light commercial cooling systems.

This motor fits condenser unit applications where a 48-frame, shell-band or end-boss mounted PSC motor is required. The 1/2-inch shaft diameter and single-speed configuration make it a straightforward drop-in service replacement in outdoor condensing units requiring a 825 RPM, 1/5 HP motor. It is well suited to residential split-system air conditioners and similar equipment where compact motor dimensions and reliable ball-bearing construction are priorities.

Key Features

• 1/5 HP single-speed PSC motor rated at 825 RPM
• 208/230 volt single-phase operation at 50/60 Hz for broad compatibility
• Counterclockwise rotation (viewed from shaft end) for standard condenser fan blade mounting
• Ball bearing construction for durability in outdoor condenser service
• Shell-band and end-boss mounting for versatile installation
• Requires a 5 MFD/370-volt run capacitor (not included)

Compatibility

Designed as an OEM-style replacement PSC condenser fan motor for residential and light commercial outdoor condensing units requiring a 48-frame, 1/5 HP, 825 RPM, 208/230 volt single-phase motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before beginning service. Confirm the replacement run capacitor rating matches the motor specification of 5 MFD at 370 volts before energizing the unit. Follow local mechanical and electrical codes, including applicable NEC requirements, for motor replacement in outdoor equipment.

Technical Specifications

• Application: Condenser PSC Motor
• Horsepower: 1/5 HP
• Speeds: 1
• High Speed: 825 RPM
• Voltage: 208/230 volts
• Phase: 1
• Frequency: 50/60 Hz
• Full Load Amperage (230V): 1 amp
• Locked Rotor Amperage (230V): 2.4 amps
• Run Capacitor: 5 MFD / 370 volts
• Rotation Direction (OSE): CCW
• Frame Size: 48
• Bearing Type: Ball
• Mounting: Shell-band / End-boss
• Shaft Diameter: 0.5 inches
• Keyed/Flat Shaft Length: 1.25 inches
• Overall Shaft Length: 2.25 inches
• Motor Body Diameter: 5.625 inches
• Motor Body Length: 5.0625 inches
• Overall Motor Length: 7.3125 inches
• Shipping Weight: 10.6 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-102008-34
