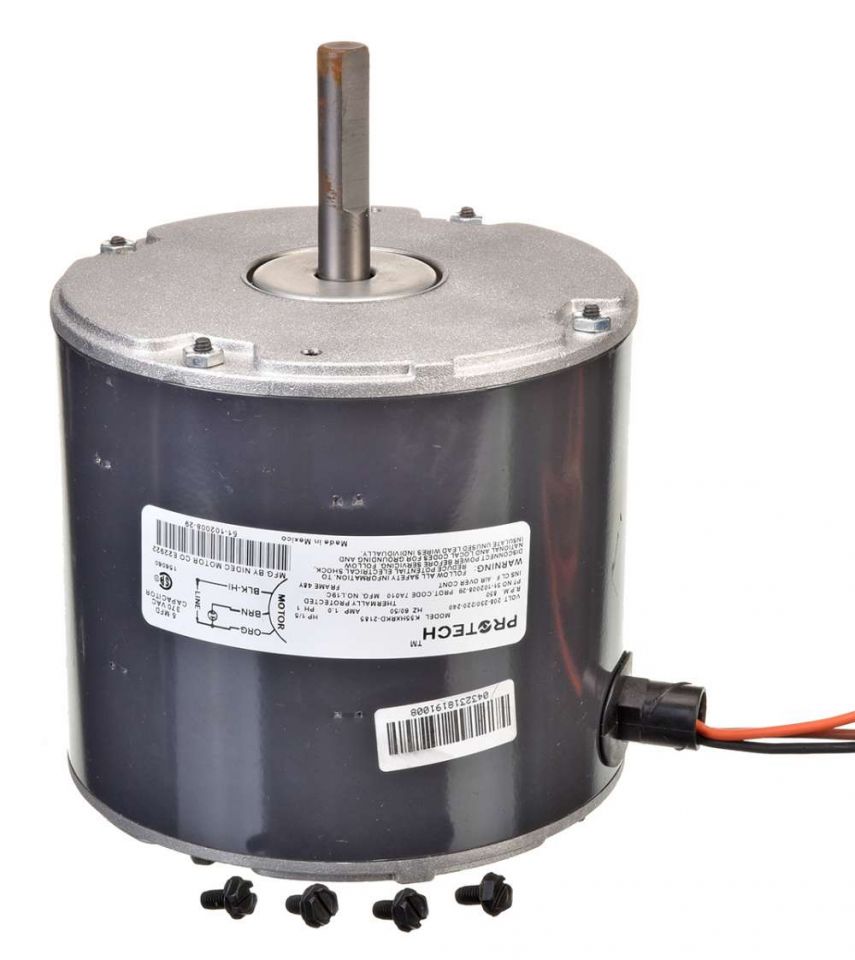

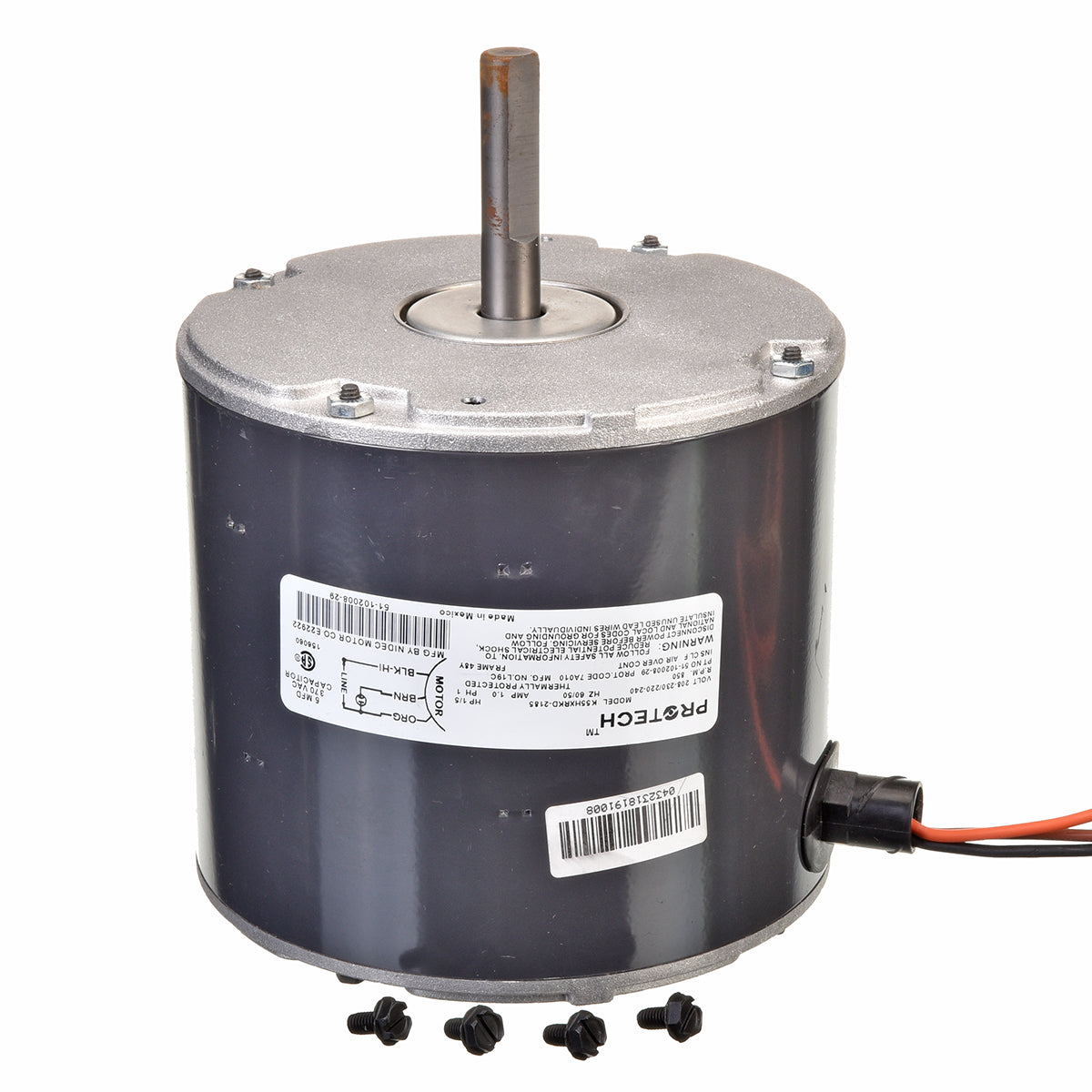

RUUD 51-102008-29 Condenser Motor 1/5 HP 208-230V 825 RPM

Product Description

The RUUD 51-102008-29 is a condenser motor specifically designed for HVAC systems. This motor operates efficiently at a voltage of 208-230V and delivers a power output of 1/5 horsepower. It rotates at a speed of 825 RPM, making it suitable for use as an OEM replacement in Rheem, RUUD, and Weatherking models, as well as other compatible applications.

• Condenser motor with 1/5 HP power.
• Operates on 208-230V power supply.
• Rotates at a speed of 825 RPM.

Product Highlights

This PSC type motor features clockwise shaft end rotation and is ideal for various HVAC applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102008-29

Technical Specifications

• Product Type: Condenser Motor
• Horse Power: 1/5
• Speed: 1
• RPM: 825
• Input Voltage: 208-230/1/50-60
• Rotation Direction: CCW
• Capacitor: 5/370
• Full Load Amperage at 230V: 1
• Locked Rotor Amperage at 230V: 2.4
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Shaft Length: 1-1/4 inches
• Overall Shaft Length: 2-3/16 inches
• Motor Body Length: 5-1/16 inches
• Overall Motor Length: 7-5/16 inches
• Mounting Type: Shell-band/End-boss
• Frame Size: 48
• Bearing Type: Ball
