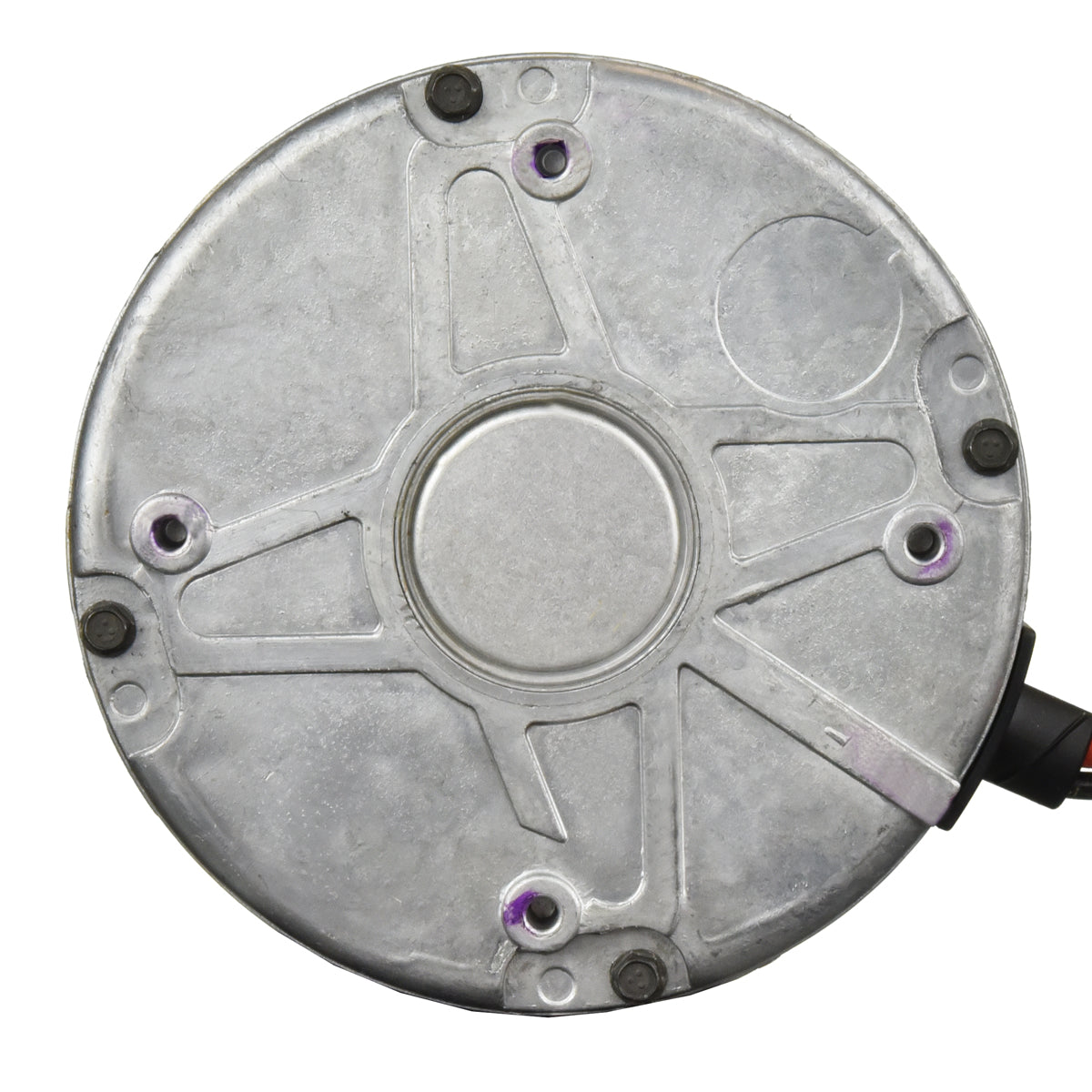

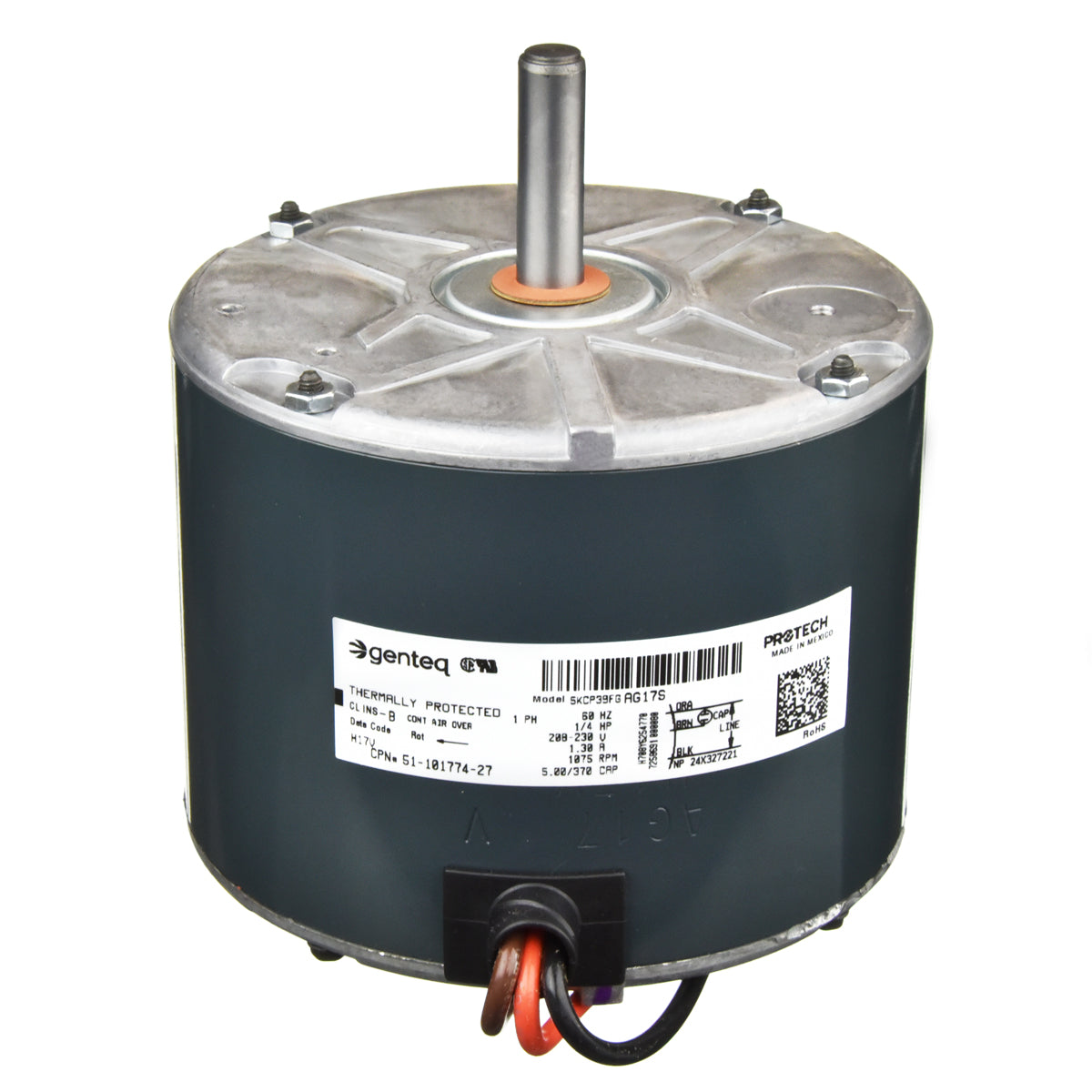

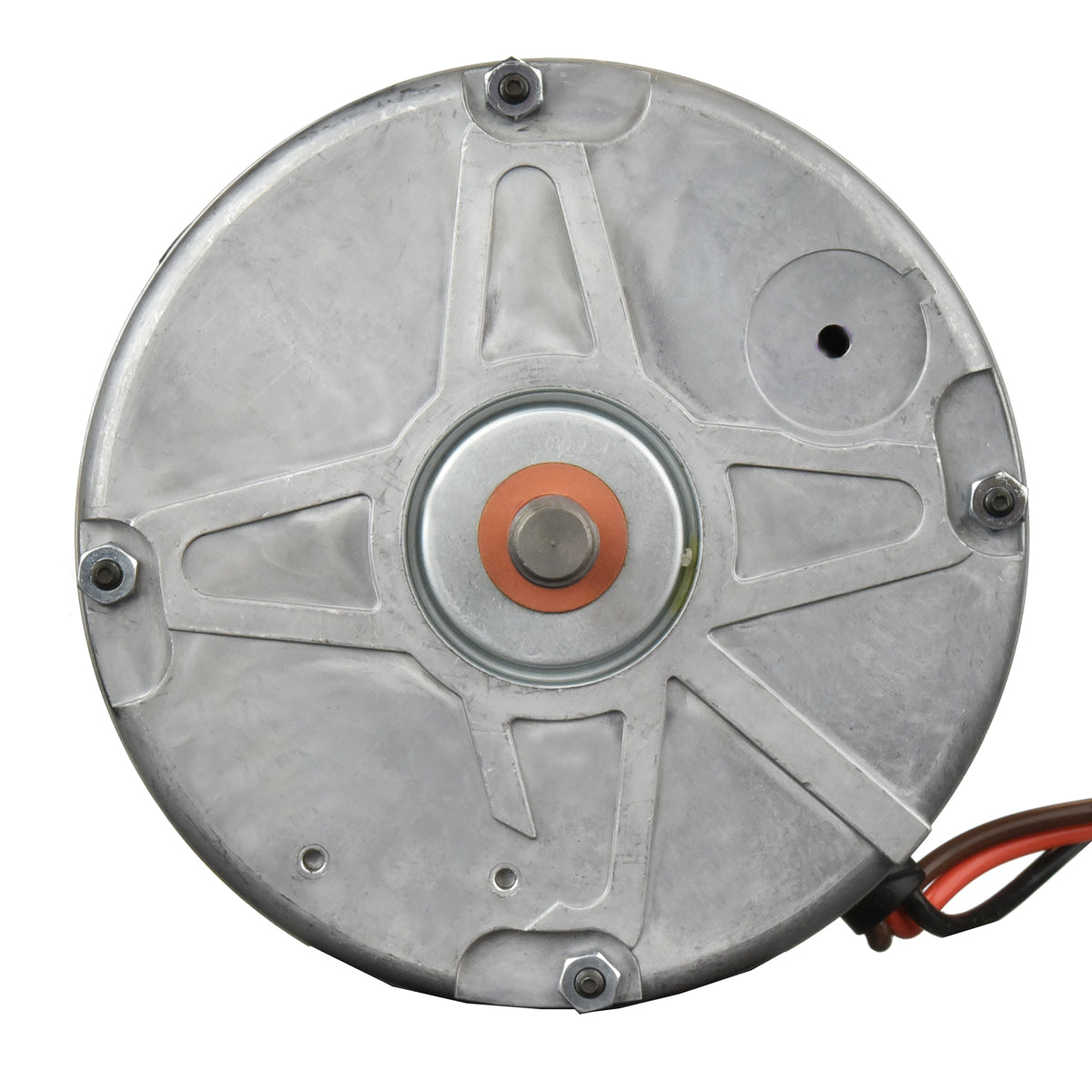

RUUD 51-101774-27 Condenser Fan Motor - 1/4 HP

Product Description

The RUUD 51-101774-27 is a condenser fan motor suitable for HVAC systems. It operates at a voltage of two hundred eight to two hundred thirty volts and delivers a power output of one-fourth horsepower at a speed of one thousand seventy-five RPM. This motor features a single-speed option and rotates counter-clockwise when viewed from the shaft end.

• Designed for shell-band or end-boss mounting
• Includes sleeve bearing type for durability
• Ideal for various condenser applications

Product Highlights

The RUUD 51-101774-27 is engineered for efficient performance in HVAC systems, ensuring optimal airflow and cooling.

Product Information

Standard Information

• Motor Application: Condenser PSC
• Rotation Direction: CCW

Technical Specifications

• Horse Power: 1/4
• Number of Speeds: 1
• High Speed (RPM): 1075
• Input Voltage: 208-230/1/60
• Run Capacitor: 5/370
• FLA at 230V: 1.2
• LRA at 230V: 2.5
• Shaft Diameter: 1/2
• Motor Body Diameter: 5-5/8
• Keyed/Flat Shaft Length: 1-1/2
• Overall Shaft Length: 1-3/4
• Motor Body Length: 4-7/16
• Overall Motor Length: 6-3/16
• Frame Size: 48
• Bearing Type: Sleeve
