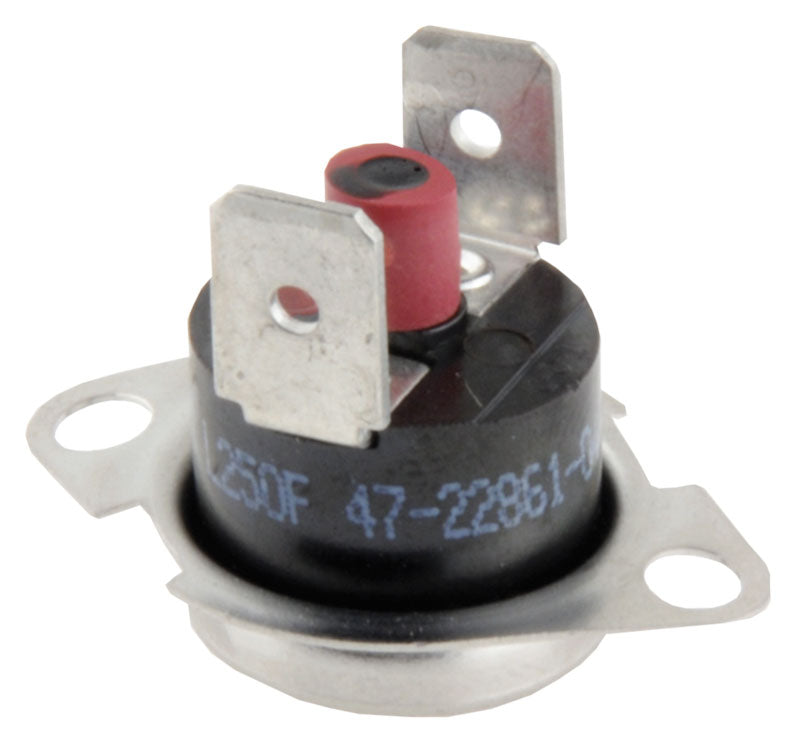

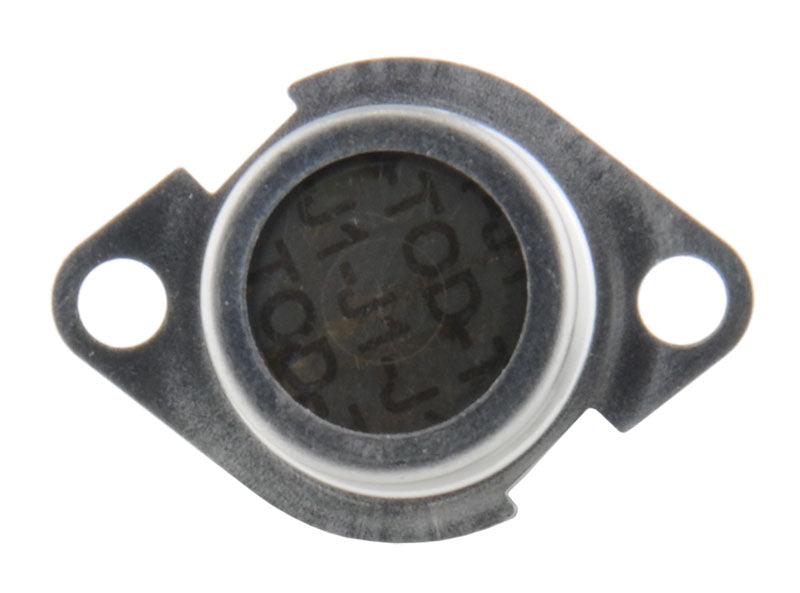

Ruud 47-22861-04 Protech Manual Reset Limit Switch

Product Description

The RUUD 47-22861-04 Protech Manual Reset Limit Switch is designed for use in various HVAC applications. This switch features a manual reset mode and SPST contact configuration. It has a flanged airstream mounting design and 1/4 in. quick connect connections. The switch opens at 250 degrees F and closes at -31 degrees F.

• Manual reset mode
• SPST normally closed switch
• Flanged airstream mounting

Product Highlights

Manual reset limit switch with quick connect connections and a flanged airstream mount.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-22861-04

Technical Specifications

• Operation Mode: Manual
• Contact Type: Normally Closed
• Connector Type: Quick
• Switch Type: SPST
• Brand: ProTech
• Material: Copper
• Voltage: 120/230 VAC
• Amperage: 15/10 A
• Poles: 1
• Open Temperature: 250 deg F
• Close Temperature: -31 deg F
• Minimum Manual Reset Temperature: 130 deg F
• Connection: 1/4 in Quick Connect
• Mounting: Flanged Airstream
• High Limit: 250
• Low Limit: -31
• Type: Flanged
• Approximate Height (inches): 0.75
• Approximate Length (inches): 3.85
• Approximate Width (inches): 3.40
