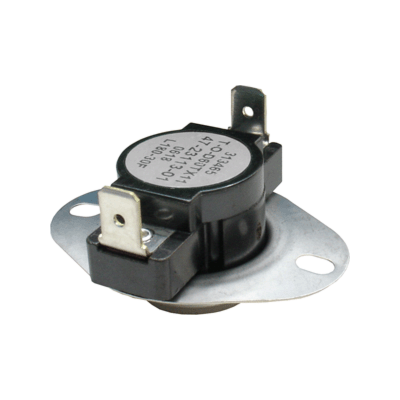

Ruud 47-104465-03 Automatic Reset Limit Switch

Product Description

The RUUD 47-104465-03 is an automatic reset limit switch. This Therm-O-Disc® 60T large flanged airstream temperature limit control switch features SPST switching. It has a maximum voltage of 230VAC and a maximum current of 25A, opening at 125 deg. F and closing at 115 deg. F.

• Automatic reset temperature limit control switch
• SPST Switching
• Maximum voltage: 230VAC, maximum current: 25A

Product Highlights

Automatic reset limit switch with SPST switching, maximum voltage of 230VAC and a maximum current of 25A.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-104465-03

Technical Specifications

• MPN: 47-104465-03
• Condition: New
• Amperage: 25A
• Close: 115 deg. F
• Color Code: Blue
• Nominal Difference: 10 deg. F
• Notes: 25/32" Maximum Mounting Insertion Depth
• Open: 125 deg. F
• Poles: 1-Pole
• Series-Brand: Therm-O-Disc
• Switching: SPST
• Tolerance Close: +/-5 deg. F
• Tolerance Open: +/-5 deg. F
• Voltage: 230VAC
