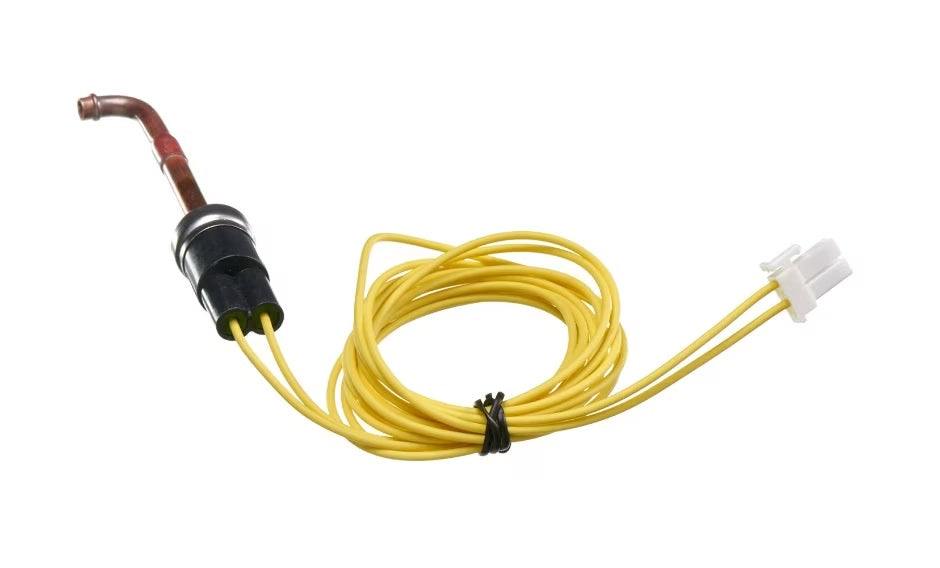

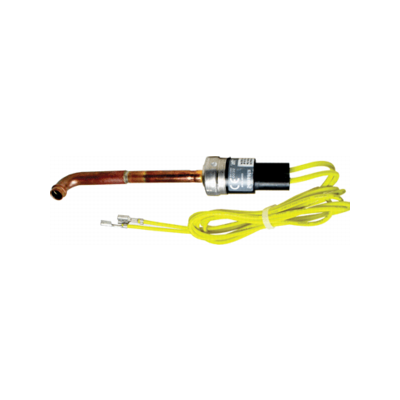

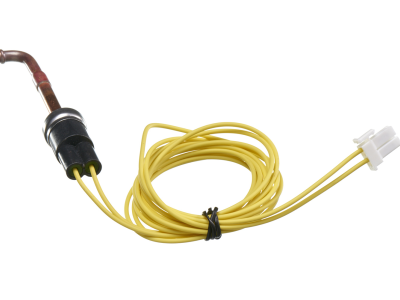

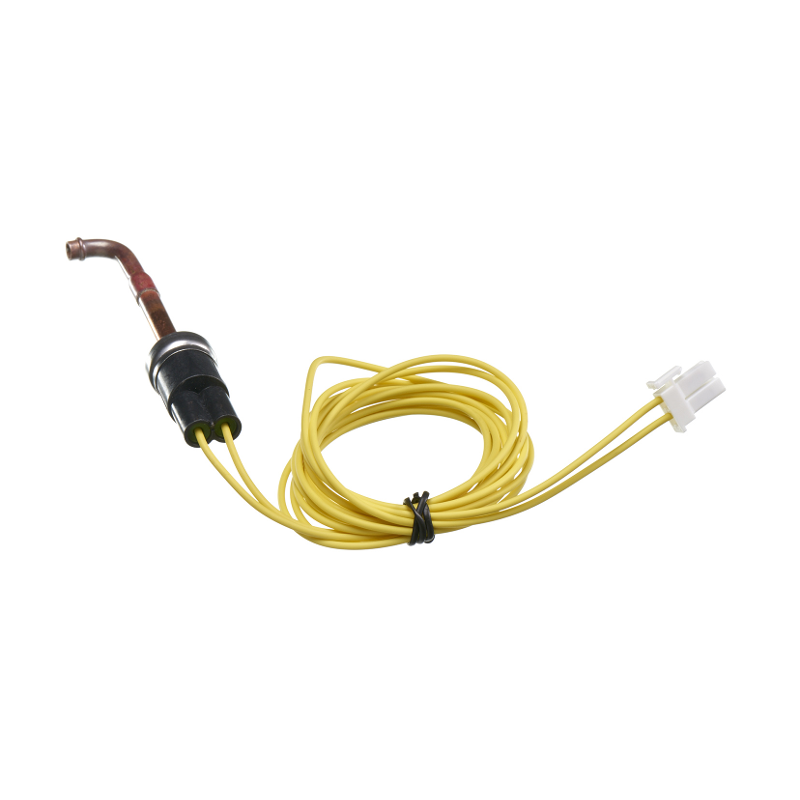

RUUD 47-103669-04 High Pressure Limit Switch with Auto Reset

Product Description

The RUUD 47-103669-04 is a high-pressure limit switch designed for safety in HVAC systems. It monitors refrigerant pressure and automatically resets when safe levels are achieved. This unit is equipped with a sweat connection for straightforward installation into various system models.

• Automatic reset functionality
• Designed with a sweat connection
• Reliable high-pressure limit control

Product Highlights

This limit switch enhances system safety by preventing high-pressure situations.

Product Information

Standard Information

• Brand: RUUD
• MPN: 47-103669-04

Technical Specifications

• Connection Ends: Sweat
• Connection Sizes: 1/4 inches
• Open Pressure: 610 psig
• Close Pressure: 420 psig
• Tolerance Open: +/- 10 psig
• Tolerance Close: +/- 15 psig
• High Limit: 610 psig
• Low Limit: 420 psig
• Type: Probe
• Approximate Height: 2.20 inches
• Approximate Length: 5.60 inches
• Approximate Weight: 0.19 pounds
• Approximate Width: 3.15 inches
• Product Group: Accessories
