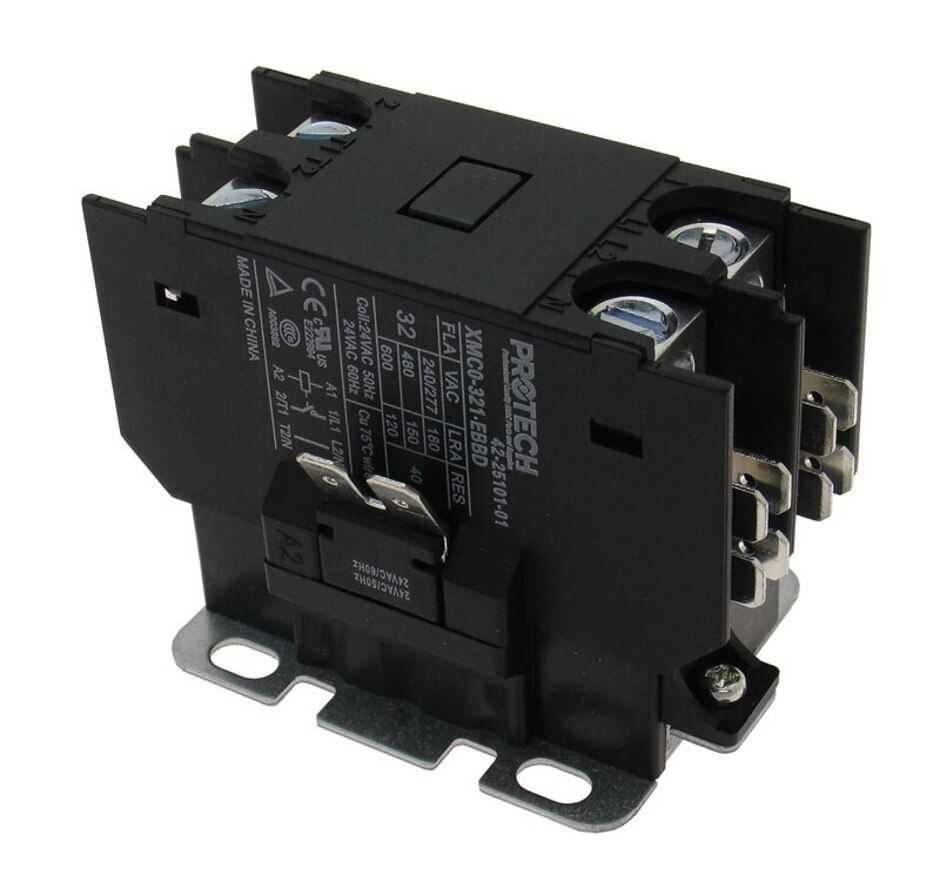

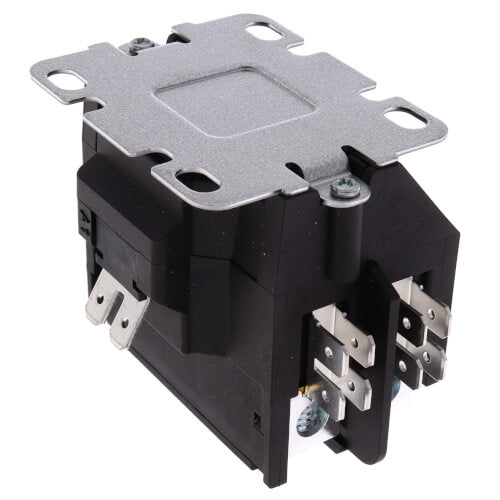

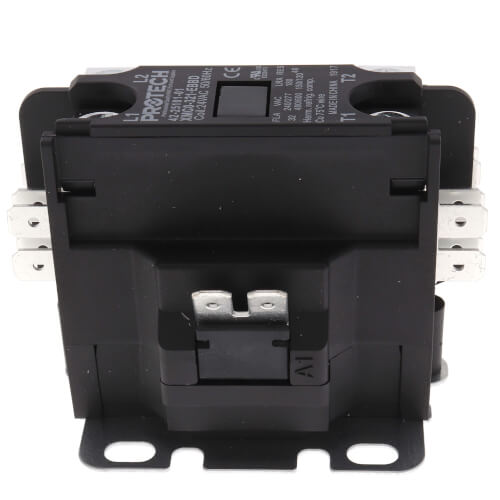

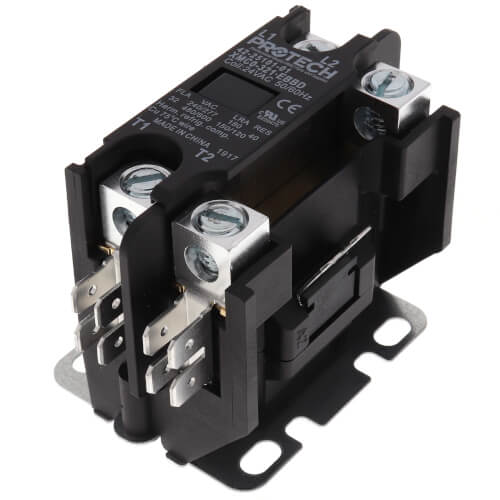

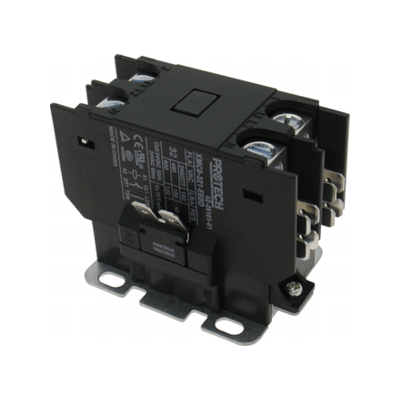

RUUD 42-25101-01 1-Pole 30A Contactor

Product Description

The RUUD 42-25101-01 is a reliable 1-pole contactor for heating and cooling systems. This contactor operates as an electrical switch, equipped with a control coil and metal plunger that manage the opening and closing of electrical contacts. It is essential for regulating the power to the condenser unit and maintaining the desired temperature in HVAC systems.

• Single pole configuration for effective operation.
• Coil voltage of twenty-four volts.
• Rated for resistive loads up to forty amperes.

Product Highlights

Compact design suitable for split systems, ensuring consistent HVAC performance.

Product Information

Standard Information

• Brand: RUUD
• Model Number: 42-25101-01

Technical Specifications

• Number of Poles: 1
• Coil Voltage: 24 VAC
• Motor FLA Rating at 230V (A): 32
• Motor LRA Rating at 230V (A): 180
• Resistive Rating at 230V (A): 40
• Motor FLA Rating at 460V (A): 32
• Motor LRA Rating at 460V (A): 150
• Resistive Rating at 460V (A): 40
• Motor FLA Rating at 575V (A): 32
• Motor LRA Rating at 575V (A): 120
• Resistive Rating at 575V (A): 40
