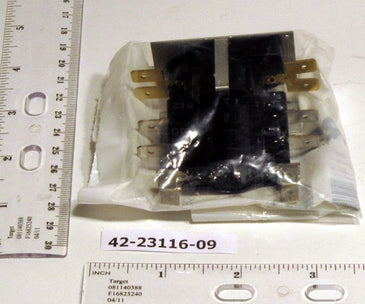

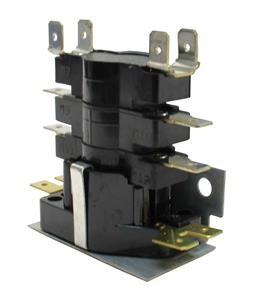

RUUD 42-23116-09 Relay Sequencer

Product Description

The RUUD 42-23116-09 is a reliable sequencing relay designed for industrial use. It integrates into various electrical systems for effective control. This model includes a three pole, single throw (3PST) normally open contact configuration, allowing for multiple switching applications. It offers adjustable on and off timings for different switch positions, ensuring seamless operation in industrial settings. The robust design makes this relay suitable for harsh environments.

• Designed for industrial electrical systems
• Includes 3PST normally open contacts
• Offers adjustable timing sequences

Product Highlights

This sequencer provides efficient control for multiple relay functions, making it ideal for various applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 42-23116-09

Technical Specifications

• Application: Sequencer
• Type: Sequencing Relay
• Voltage: 24V
• Contact Configuration: 3PST
• Normally Open Contacts: Yes
• Switches: 3
• Action: TPST
• Timing ON M1-M2: 10-30
• Timing ON M3-M4: 10-30
• Timing ON M5-M6: 10-30
• Timing OFF M1-M2: 30-60
• Timing OFF M3-M4: 30-60
