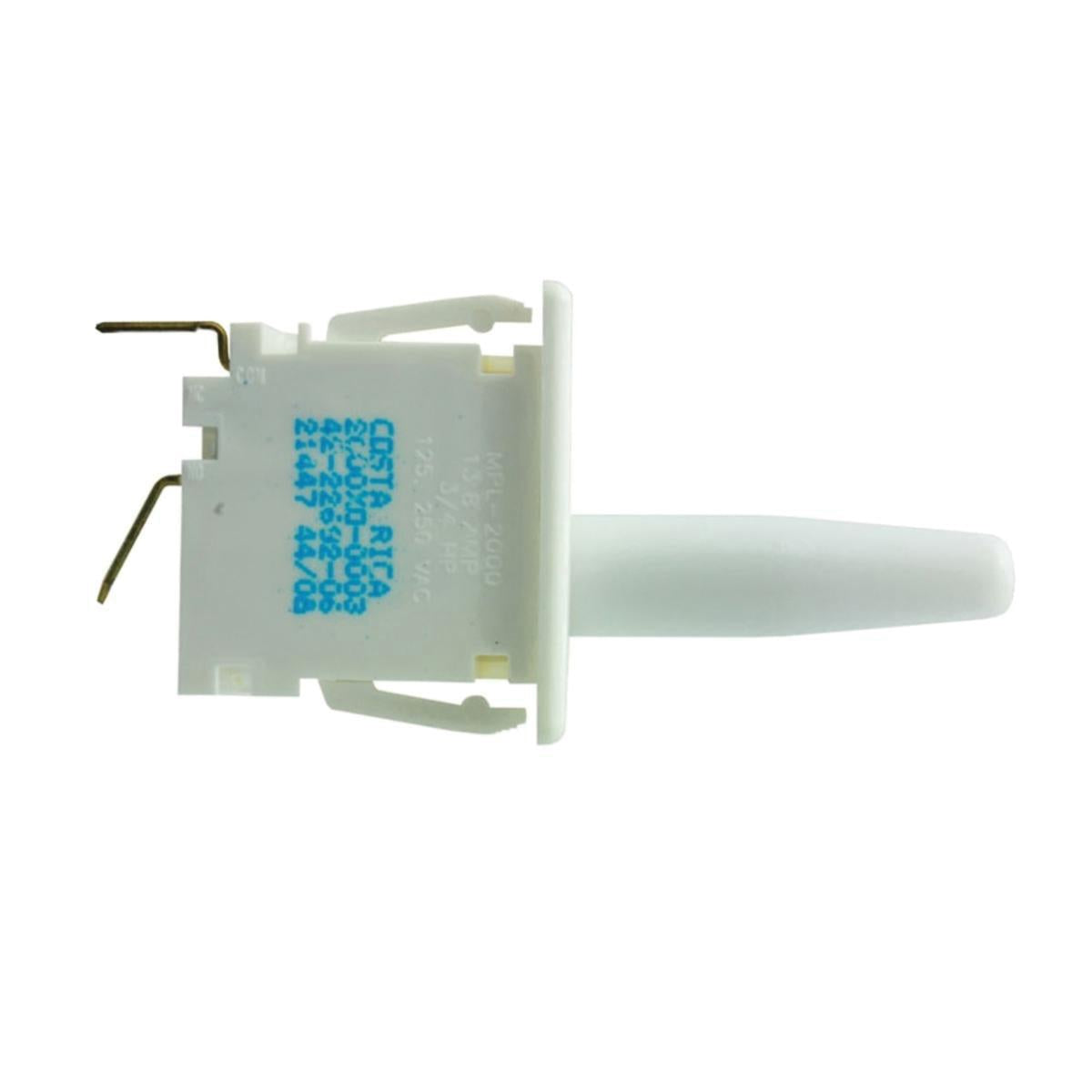

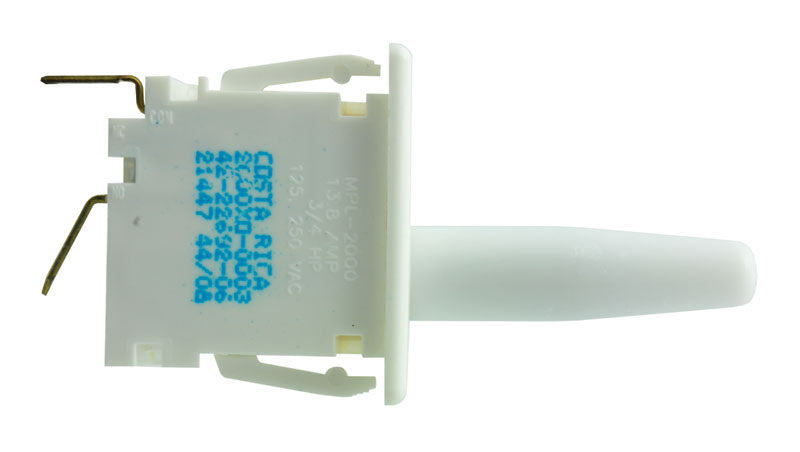

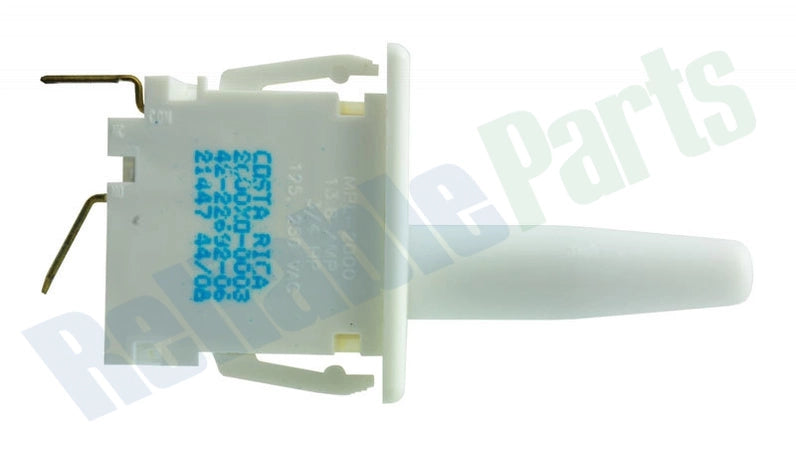

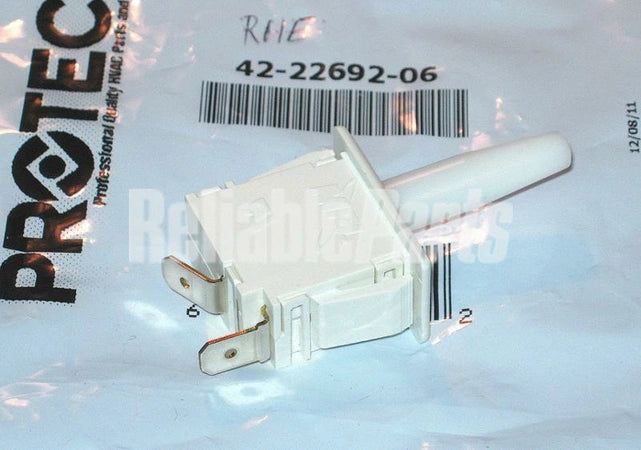

RUUD 42-22692-06 Furnace Door Safety Switch

Product Description

The RUUD 42-22692-06 is a door safety switch suitable for HVAC systems like air conditioners and refrigerators. It is a normally open, single pole, single throw switch, featuring a push-button design. This switch has a mounting hole size of one and one-eighth inches high by nine-sixteenths inches wide.

• Normally Open, Single Pole, Single Throw (NO SPST) configuration
• Design for easy installation in various HVAC systems
• Push button style for reliable operation

Product Highlights

This door safety switch ensures safe operation for HVAC units by cutting power when the furnace door is opened.

Product Information

Standard Information

• Part Number: 42-22692-06
• Contact Configuration: NO SPST

Technical Specifications

• Voltage Rating: 120/230 V
• Amperage Rating: 13.8 A
• Approximate Height: 0.65 inches
• Approximate Length: 3.90 inches
• Approximate Width: 3.90 inches
• Approximate Weight: 0.03 pounds
• Suitable For Use With: Air Conditioners, Refrigerators
