RUUD 42-21593-02 Sequencing Relay SPDT

Product Description

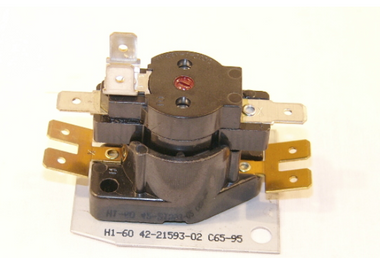

The RUUD 42-21593-02 is a sequencing relay with a single pole double throw (SPDT) contact design. This relay supports normally open and normally closed options and is intended for flush mount installations using a mounting plate with a hole and tab. It operates with a twenty-four volt AC power supply and features adjustable on and off timings for both poles.

• Contact Configuration: SPDT (NO/NC)
• Mounting: Flush mount with plate, hole, and tab
• Connections: 1/4 inch quick connects

Product Highlights

This sequencing relay allows for precise control in HVAC systems and other applications, making it a vital component for energy management and operational efficiency.

Product Information

Standard Information

• Brand: RUUD
• MPN: 42-21593-02

Technical Specifications

• Mounting: Flush mount plate with mounting hole and tab
• Power Supply: 24 VAC
• Current Rating: 0.16A steady state, 0.9A inrush
• Contact Configuration: SPDT - normally open and normally closed
• Number of Poles: 1
• On Timing - Pole 1: 1-60 seconds
• On Timing - Pole 2: 1-60 seconds
• Off Timing - Pole 1: 65-95 seconds
• Off Timing - Pole 2: 65-95 seconds
• Connections: 1/4 inch quick connects
• Motor FLA at 120V: 14 amps
• Motor LRA at 120V: 72 amps
• Pilot Duty Rating at 120V: 125 VA
• Motor FLA at 230V: 7 amps
• Motor LRA at 230V: 42 amps
• Pilot Duty Rating at 230V: 125 VA
• Resistive Rating at 230V: 25 amps
• Motor FLA at 460V: 3 amps
• Motor LRA at 460V: 18 amps
• Pilot Duty Rating at 460V: 125 VA
• Resistive Rating at 460V: 12.5 amps
