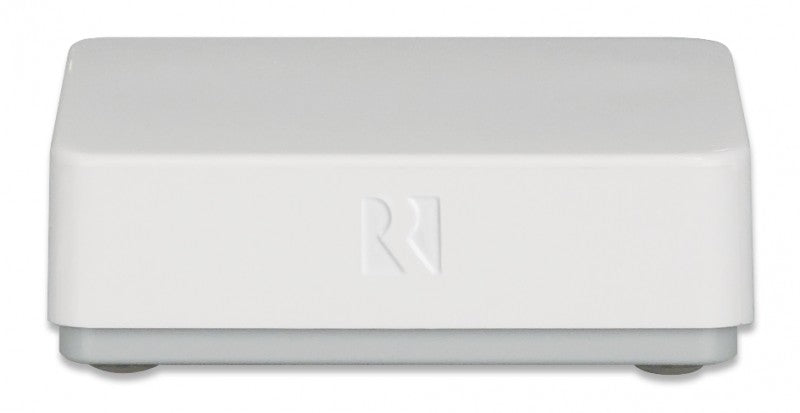

Russound BTC-1X Bluetooth Remote Transceiver

Product Description

The RUSSOUND BTC-1X Bluetooth module is a transceiver that lets you wirelessly connect a portable media player, smartphone, or other Bluetooth equipped device to any Russound MCA-Series controller. It transmits balanced line audio to the XStream Bluetooth input and supports the aptX codec, providing enhanced audio quality. The BTC-1X can extend Bluetooth reception beyond normal limits.

• Installs via a single CAT-5e up to 300' (91.4m) away from the MCA-Series Controller
• Adds a Bluetooth streaming source connection
• Dramatically extends Bluetooth range up to 49'

Product Highlights

The BTC-1X integrates easily with the MCA-Series controller via a dedicated CAT-5 connection, and no other connection or power supply is required. Free custom naming software is available.

Product Information

Standard Information

• Brand: RUSSOUND
• Manufacturer Part Number: BTC-1X
• Country of Origin: China

Technical Specifications

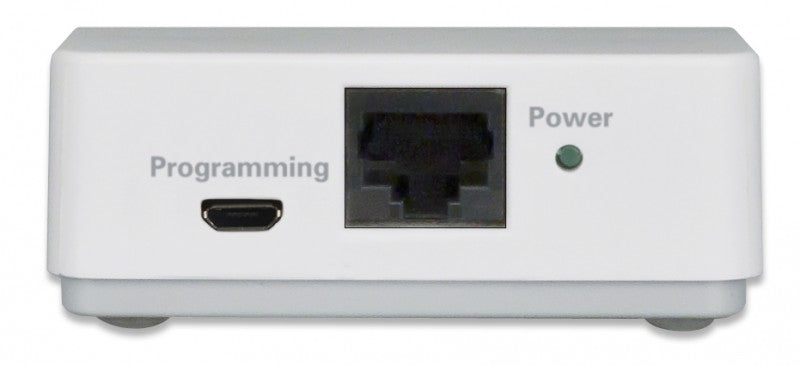

• Connections: (1) Programming connection: MicroUSB (cable not included) (1) RJ-45 controller connection (T568A standard)
• Frequency Range: 2.402 - 2.483.5 MHz
• Max Cable Length: 300' (CAT-5e) to controller
• Power Requirement(s): Power supplied by the controller via CAT-5
• Brand: Russound
• Type: Remote Transceiver
• Model: Russound BTC-1X
• Country of Origin: China
