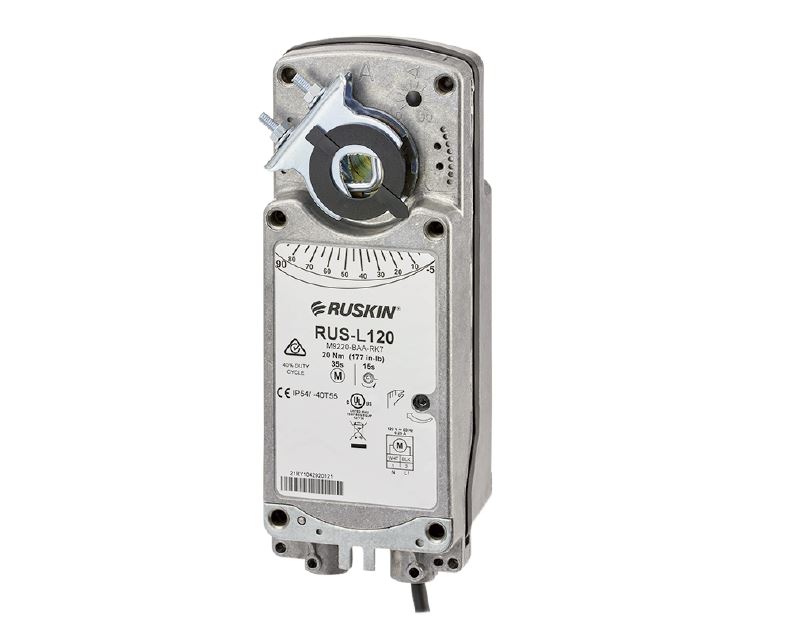

Ruskin RUS-L120 Electric On/Off Spring Return Actuator 120V

Product Description

The Ruskin RUS-L120 is an Electric On/Off Spring Return Actuator designed for HVAC systems. It operates on 120 volts and ensures accurate control of dampers. This actuator automatically moves dampers to a safe position during power failures, providing reliability. With a maximum consumption of 0.25 amps while driving and 0.13 amps in holding mode, it offers efficient performance. The actuator features a connection cable of three feet and a return time of less than fifteen seconds. It is capable of accommodating shaft sizes from three quarters of an inch to one and one-sixteenth inches and operates in environments with temperatures ranging from negative forty degrees Fahrenheit to one hundred thirty-one degrees Fahrenheit, while enduring humidity levels up to ninety percent.

• Accurate control of HVAC dampers
• Spring return feature for safety
• Effective operation during power outages

Product Highlights

Essential for controlling dampers in HVAC systems, the Ruskin RUS-L120 offers reliability and swift response during interruptions.

Product Information

Standard Information

• Type: Actuator
• Voltage: 120V

Technical Specifications

• Shaft Mounting: 3/4 in to 1-1/16 in
• Spring Return: Yes
• Running Time: Drive-24 to 57 seconds, Spring-less than 15 seconds
• Power Consumption: Running 0.25 amps, Holding 0.13 amps
• Electrical Connection: 3' Cable
• Humidity: 5% to 90% non-condensing
• Ambient Temperature Range: -40°F to 131°F
• Brand: Ruskin
