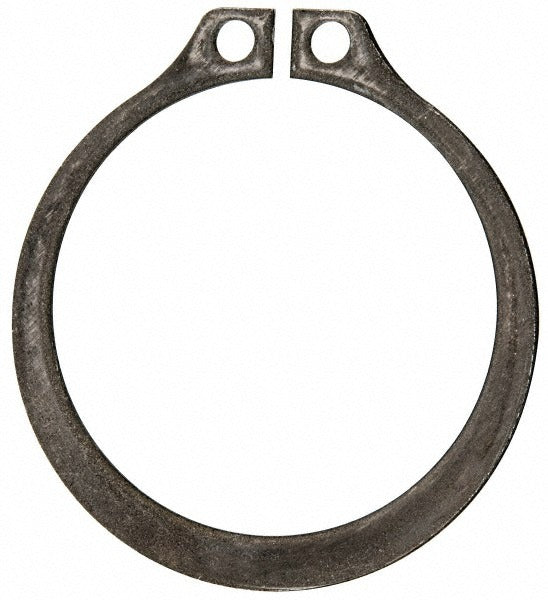

Rotor Clip SH162ST Pa B100 External Retaining Ring

Product Description

The ROTOR CLIP SH162ST PA B100 is an external retaining ring designed to secure components on a 1-5/8 inch (1.625 inch) diameter shaft. Manufactured from SAE 1060-1090 carbon steel with a phosphate finish, this ring seats into a 1.529 inch groove diameter and provides reliable axial retention in rotating and stationary assemblies. With a ring thickness of 0.062 inches and a hardness rating of 47-52 HRC, it delivers the mechanical strength required for demanding industrial and OEM applications. Installation and removal are handled by licensed maintenance technicians and mechanical assemblers working across a wide range of equipment types.

This external retaining ring is suited for use in industrial machinery, drive assemblies, gearboxes, pump shafts, and other mechanical systems that require precise axial component retention. The 1-5/8 inch shaft size is common in mid-range industrial drives and rotating equipment. The phosphate finish provides baseline corrosion resistance suitable for protected environments. This ring ships in a minimum order quantity of 100 units, making it appropriate for production line procurement, MRO stocking, and OEM assembly operations.

Key Features

• Fits 1-5/8 inch (1.625 inch) shaft diameter for precise axial retention
• 1.529 inch groove diameter with a tolerance of -0.005 to +0.005 inches
• SAE 1060-1090 carbon steel construction meets UNS G10600-G10900 and ISO 13485:2015 standards
• Phosphate finish for surface protection in non-corrosive or protected environments
• Hardness of 47-52 HRC for reliable performance under mechanical load
• Ring thickness of 0.062 inches with a tight tolerance of -0.003 to +0.003 inches

Compatibility

Designed as an OEM-style external retaining ring for 1-5/8 inch shaft diameter applications in industrial and mechanical assemblies requiring SAE 1060-1090 carbon steel construction.

Installation Notes

External retaining rings of this type are installed by qualified mechanical technicians using proper retaining ring pliers sized for the ring diameter. De-energize and lock out all power sources before servicing any rotating assembly. Confirm groove dimensions match the ring specifications before installation to avoid ring dislodgement under load. Inspect the groove for burrs or damage prior to seating the ring.
