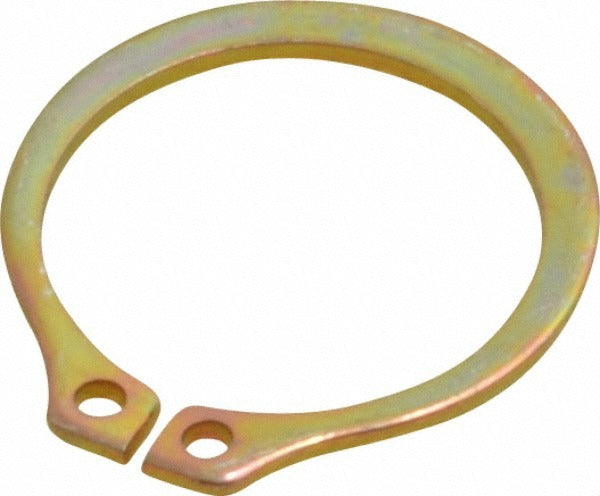

Rotor Clip SH-62ST Mcd External Retaining Ring 5/8 in

Product Description

The ROTOR CLIP SH-62ST MCD is an external retaining ring designed to seat in a machined groove on a 5/8-inch shaft and prevent axial movement of assembled components. Manufactured from SAE 1060-1090 spring steel with a cadmium-plated finish, the ring delivers reliable corrosion resistance and the spring-back retention force required in demanding mechanical assemblies. The groove diameter is 0.588 inches, ring thickness is 0.035 inches, and hardness is rated at 66-71 HRC. It meets Military Specification MS 16624-1062 and is produced to SAE 1060-1090, UNS G10600-G10900, and ISO 13485:2015 standards. Licensed HVAC, plumbing, and mechanical technicians working on shaft-driven components install this ring using standard retaining ring pliers.

This external retaining ring is suited for use on 5/8-inch shafts in light-duty to medium-duty mechanical assemblies, including motors, pumps, gearboxes, and actuators found in HVAC, plumbing, pool, and general industrial equipment. The cadmium-plated finish is appropriate for environments where mild corrosion protection is required. This part is sold in a package quantity of one ring, with a minimum order quantity of 100 units, making it appropriate for service shops and contractors maintaining a parts inventory.

Key Features

• Fits 5/8-inch (0.625-inch) shaft diameter with a 0.588-inch groove diameter
• SAE 1060-1090 spring steel construction rated at 66-71 HRC hardness
• Cadmium-plated finish for corrosion resistance in service environments
• Meets Military Specification MS 16624-1062
• Conforms to SAE 1060-1090, UNS G10600-G10900, and ISO 13485:2015 standards
• Groove width of 0.039 inches and ring thickness of 0.035 inches for precise fitment

Compatibility

Designed as an OEM-style external retaining ring for 5/8-inch shafts with a 0.588-inch groove diameter, suitable for mechanical assemblies requiring axial retention in HVAC, plumbing, pool, and general industrial equipment.

Installation Notes

Installation requires external retaining ring pliers sized for the ring gap; never use makeshift tools, as improper installation can cause the ring to slip or deform. Power down and de-energize any equipment before servicing shaft assemblies. Inspect the shaft groove for burrs or debris before seating the ring to ensure full groove engagement. Follow applicable OSHA lockout/tagout procedures when working on rotating equipment.
