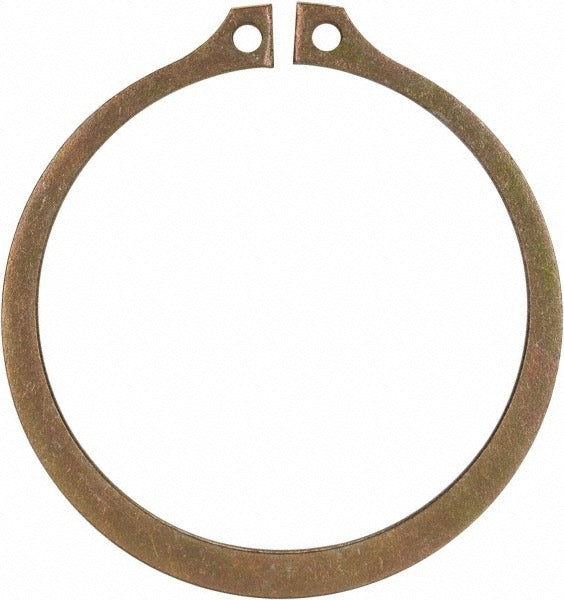

Rotor Clip SH-250ST Zd External Retaining Ring 2-1/2 in

Product Description

The ROTOR CLIP SH-250ST ZD is an external retaining ring designed to secure components on shafts in precision mechanical assemblies. It fits a 2.5-inch shaft diameter and seats into a groove that measures 2.36 inches in diameter and 0.086 inches wide. The ring is manufactured from SAE 1060-1090 carbon steel and finished with a yellow zinc dichromate coating for corrosion resistance. With a hardness rating of 47-52 HRC, this ring provides reliable axial retention under load. Mechanical assemblers, maintenance technicians, and industrial tradespeople install this ring wherever shaft-mounted components require a positive stop or retention point.

This external retaining ring is suited for use on 2.5-inch shafts in industrial and mechanical equipment, including pump assemblies, gearboxes, motors, and drive components. It is installed into a precision-machined external groove on the shaft. The ring conforms to SAE 1060-1090 and UNS G10600-G10900 standards and is produced to ISO 13485:2015 quality management requirements, making it appropriate for demanding mechanical and instrumentation applications. It is sold in a minimum order quantity of 5 units.

Key Features

• Fits 2.5-inch shaft diameter with a 2.36-inch groove diameter
• SAE 1060-1090 carbon steel construction with 47-52 HRC hardness
• Yellow zinc dichromate finish provides corrosion resistance
• Ring thickness of 0.078 inches with a tight tolerance of plus or minus 0.003 inches
• Groove width of 0.086 inches with a tolerance of 0.000 to 0.005 inches
• Manufactured to ISO 13485:2015 quality management standards

Compatibility

Designed as an OEM-style external retaining ring for 2.5-inch shafts requiring a groove diameter of 2.36 inches. Verify shaft groove dimensions against the specified tolerances before installation.

Installation Notes

External retaining rings of this type are installed and removed using retaining ring pliers sized for the ring gap; do not substitute flat-blade tools that could deform the ring or damage the groove. Relieve all shaft loads and de-energize or lock out any rotating machinery before servicing. Inspect the shaft groove for burrs, wear, or out-of-tolerance dimensions prior to seating the ring. Follow applicable ASME and employer safety standards for mechanical fastener installation.
