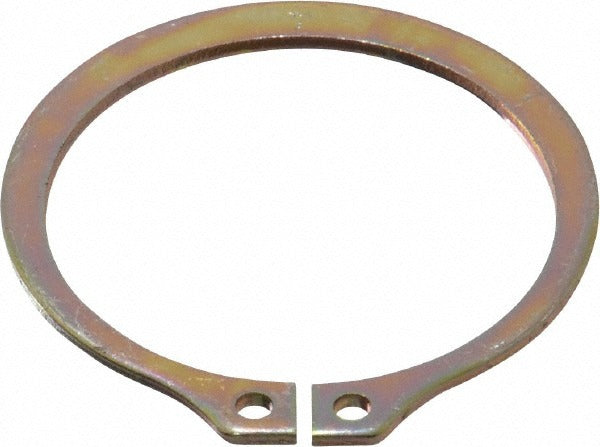

Rotor Clip SH-137ST Mcd External Retaining Ring 1-3/8 in

Product Description

The ROTOR CLIP SH-137ST MCD is an external retaining ring designed to secure components on shafts in assemblies where axial retention is required. Manufactured from SAE 1060-1090 spring steel (UNS G10600-G10900) with a cadmium-plated finish, this ring seats in a machined external groove on a 1.375-inch diameter shaft. The groove diameter is 1.291 inches with a ring thickness of 0.050 inches. Hardness is rated at 47-52 HRC, providing the spring tension needed to maintain a firm seat under load. Mechanical assemblers, maintenance technicians, and industrial tradespeople install this type of ring during shaft-and-bearing or shaft-and-gear assembly operations.

This retaining ring is suited for use in mechanical power transmission, rotating shaft assemblies, pump and motor shafts, and similar industrial applications requiring a low-profile external groove fastener. The cadmium plating provides corrosion resistance in environments where bare steel is insufficient. The ring meets Military Specification MS 16624-1137 and ISO 13485:2015 standards, making it appropriate for both general industrial and regulated-industry assembly applications. Minimum order quantity is 100 pieces.

Key Features

• Fits 1.375-inch (1-3/8 inches) external shaft diameter with a 1.291-inch groove diameter
• SAE 1060-1090 spring steel construction, hardness 47-52 HRC for reliable spring retention
• Cadmium-plated finish for corrosion resistance in demanding environments
• Meets Military Specification MS 16624-1137 and ISO 13485:2015
• Ring thickness of 0.050 inches with tight tolerance of plus or minus 0.002 inches
• Groove width of 0.056 inches accommodates standard external groove profiles

Compatibility

Designed as an OEM-style external retaining ring for 1.375-inch diameter shafts with a 1.291-inch groove diameter machined to standard external groove specifications per SAE 1060-1090 and MS 16624-1137.

Installation Notes

External retaining rings of this type are installed and removed by mechanical assemblers or maintenance technicians using retaining ring pliers sized for external rings. The shaft assembly should be de-energized and de-pressurized before service. Ensure the groove is clean and free of burrs before seating the ring to avoid improper seating or ring distortion. Do not over-spread the ring during installation, as exceeding the elastic limit will permanently deform the ring and compromise retention.
