Rotor Clip DSH-10ST PDB100 External Retaining Ring 10mm

Product Description

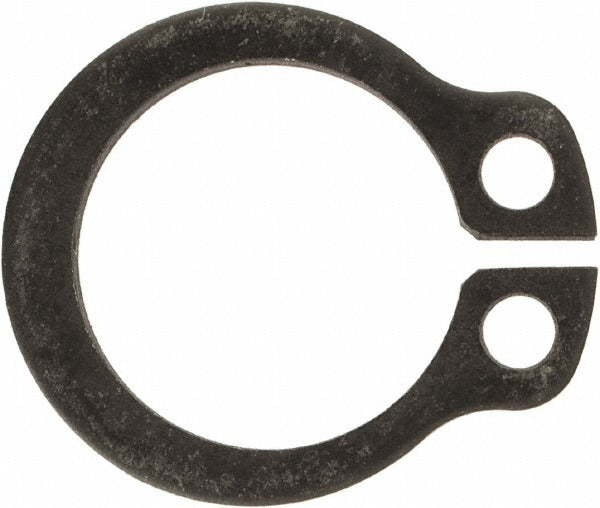

The ROTOR CLIP DSH-10ST PDB100 is an external retaining ring designed to secure components on a 10 mm diameter shaft. Manufactured from 1060-1090 spring steel with a phosphate and oil finish, it seats into a 9.6 mm groove diameter to provide reliable axial retention. Ring thickness measures 1.00 mm with a tolerance of -0.06 mm. Hardness is rated 63-69.5 HR30N, giving it the strength needed for dynamic and static load applications. This ring meets DIN 471 and SAE 1060-1090 fastener standards. Licensed HVAC technicians, industrial mechanics, and maintenance professionals install these rings as part of shaft assemblies requiring precise positional control of rotating or sliding components.

This external retaining ring is suited for use in light industrial machinery, HVAC blower shaft assemblies, pump shafts, and similar mechanical systems where a metric 10 mm shaft is present. The phosphate and oil finish provides baseline corrosion resistance in typical indoor mechanical environments. It is sold in a minimum order quantity of 100 units, making it appropriate for production-level procurement or stocking in a professional shop environment.

Key Features

• External retaining ring style seats in groove on shaft outer diameter
• 10 mm shaft diameter with 9.6 mm groove diameter and 0.20 mm groove depth
• 1060-1090 spring steel construction rated 63-69.5 HR30N hardness
• Phosphate and oil finish for baseline corrosion resistance
• Meets DIN 471 and SAE 1060-1090 fastener standards
• Groove width of 1.10 mm and ring thickness of 1.00 mm for precise fitment

Compatibility

Designed as an OEM-style external retaining ring for metric shaft assemblies requiring a 10 mm shaft diameter and conforming to DIN 471 dimensional standards.

Installation Notes

External retaining rings of this type are typically installed by mechanical technicians using snap ring pliers sized for external rings. Power down and de-energize all rotating equipment before servicing shaft assemblies. Inspect the shaft groove for burrs or damage before installing the ring to ensure proper seating and retention. Refer to applicable machinery maintenance standards and manufacturer torque specifications for the surrounding assembly.
