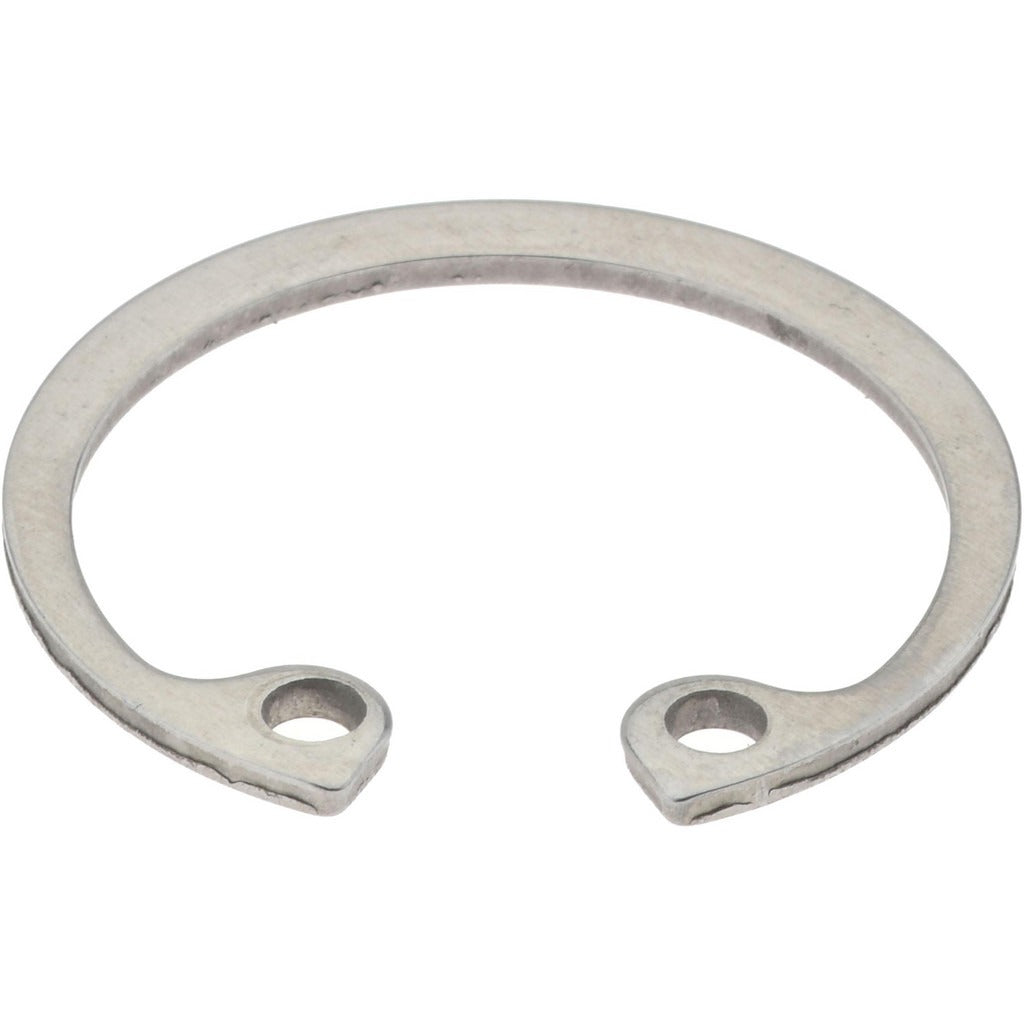

Rotor Clip DHO-24SG Metric Internal Snap Retaining Ring 24mm

Product Description

The ROTOR CLIP DHO-24SG is a metric internal snap retaining ring designed for a 24mm bore diameter with a 25.2mm nominal size. Manufactured from 1060/1090 carbon steel with a phosphate finish, it provides reliable axial retention of shafts, pins, and assemblies within bored housings. The ring measures 1.2mm thick with a free outer diameter of 25.9mm. Groove dimensions are 1.3mm wide by 0.6mm deep. Hardness is rated at Rockwell C 47-54, supporting a groove safety-factor thrust load of 1,730.96 pounds and a ring safety-factor thrust load of 3,124.72 pounds. Machinists, maintenance technicians, and assembly professionals install this ring in precision mechanical assemblies.

The DHO-24SG is suited for light-duty to medium-duty mechanical assemblies where a compact, metric internal retaining ring is required. Typical applications include gearboxes, bearing housings, pump shafts, and pneumatic or hydraulic cylinder assemblies. The phosphate surface treatment offers moderate corrosion resistance and improves lubrication retention in service. This ring is packaged in quantities of two per package and is well-suited for both field repair and production-line use where metric fastening standards apply.

Key Features

• 24mm bore diameter with 25.2mm nominal size for precise metric fitment
• 1060/1090 carbon steel construction with phosphate finish for durability and corrosion resistance
• Rockwell C 47-54 hardness for reliable performance under thrust loading
• Groove safety-factor thrust load capacity of 1,730.96 pounds
• Ring safety-factor thrust load capacity of 3,124.72 pounds
• Groove dimensions of 1.3mm wide by 0.6mm deep with 1.2mm ring thickness

Compatibility

Designed as an OEM-style metric internal snap retaining ring for 24mm bore housings in standard mechanical assemblies conforming to metric groove specifications.

Installation Notes

Installation is typically performed by machinists or mechanical technicians using internal snap ring pliers sized for the ring lug holes. The bore housing and groove should be inspected for burrs or damage before installation. Ensure the assembly is depressurized and de-energized before servicing any component retained by this ring. Do not reuse a ring that has been overstressed or deformed during removal.
