Rotor Clip DHO-18ST PDB100 Snap Ring 18mm Bore

Product Description

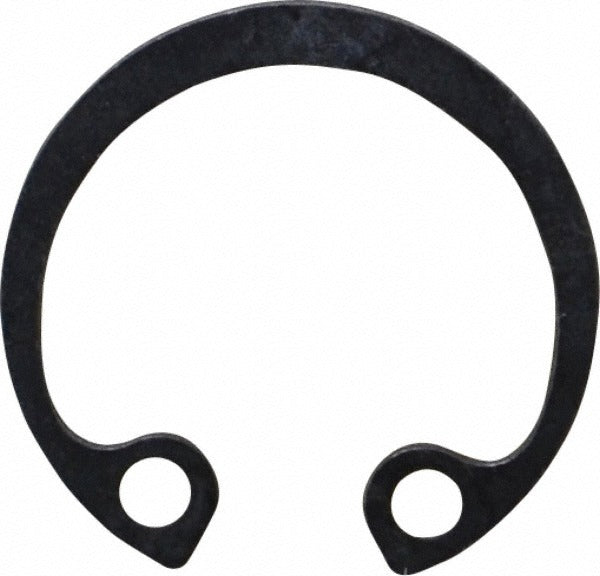

The ROTOR CLIP DHO-18ST PDB100 is a metric internal snap retaining ring designed for 18mm bore applications. Made from 1060/1090 spring steel with a phosphate finish, this ring seats into a machined internal groove to retain shafts, pins, or assemblies against axial movement. Ring thickness is 1mm, free outside diameter measures 19.5mm, groove width is 1.1mm, and groove depth is 0.5mm. Hardness is rated Rockwell 30N 66 to 72. The phosphate finish provides baseline corrosion resistance and lubricity for assembly. This ring is used by machinists, maintenance technicians, and mechanical assembly professionals across a wide range of industrial and mechanical applications.

This internal retaining ring is suited for use in bores with a nominal size of 19mm. Typical applications include gearboxes, motors, pumps, hydraulic cylinders, and general mechanical assemblies where a reliable, low-profile axial retention solution is required. The ring is installed into a precision-machined internal groove and is removed and installed using standard snap ring pliers. It is appropriate for both light-duty and moderate-load industrial environments.

Key Features

• 18mm bore diameter with 19mm nominal size for metric groove systems
• Spring steel construction, material grade SAE 1060 to 1090, for reliable retention under load
• Phosphate finish for corrosion resistance and ease of installation
• Thrust load capacity of 1,079 pounds at groove safety factor and 1,461.2 pounds at ring safety factor
• Hardness rated Rockwell 30N 66 to 72 for consistent performance across temperature ranges
• Conforms to SAE 1060 to 1090, UNS G10600 to G10900, and ISO 13485:2016 standards

Compatibility

Designed as a metric internal snap retaining ring for 18mm bore, 19mm nominal groove diameter applications. Consult your assembly drawings to confirm groove width of 1.1mm and groove depth of 0.5mm before installation.

Installation Notes

Installation and removal require snap ring pliers sized for internal metric rings. Shut down and de-energize any equipment before servicing components that use this ring. Ensure the bore groove is clean, free of burrs, and machined to tolerance before seating the ring. Do not reuse a ring that has been overstressed, distorted, or shows signs of fatigue cracking.
