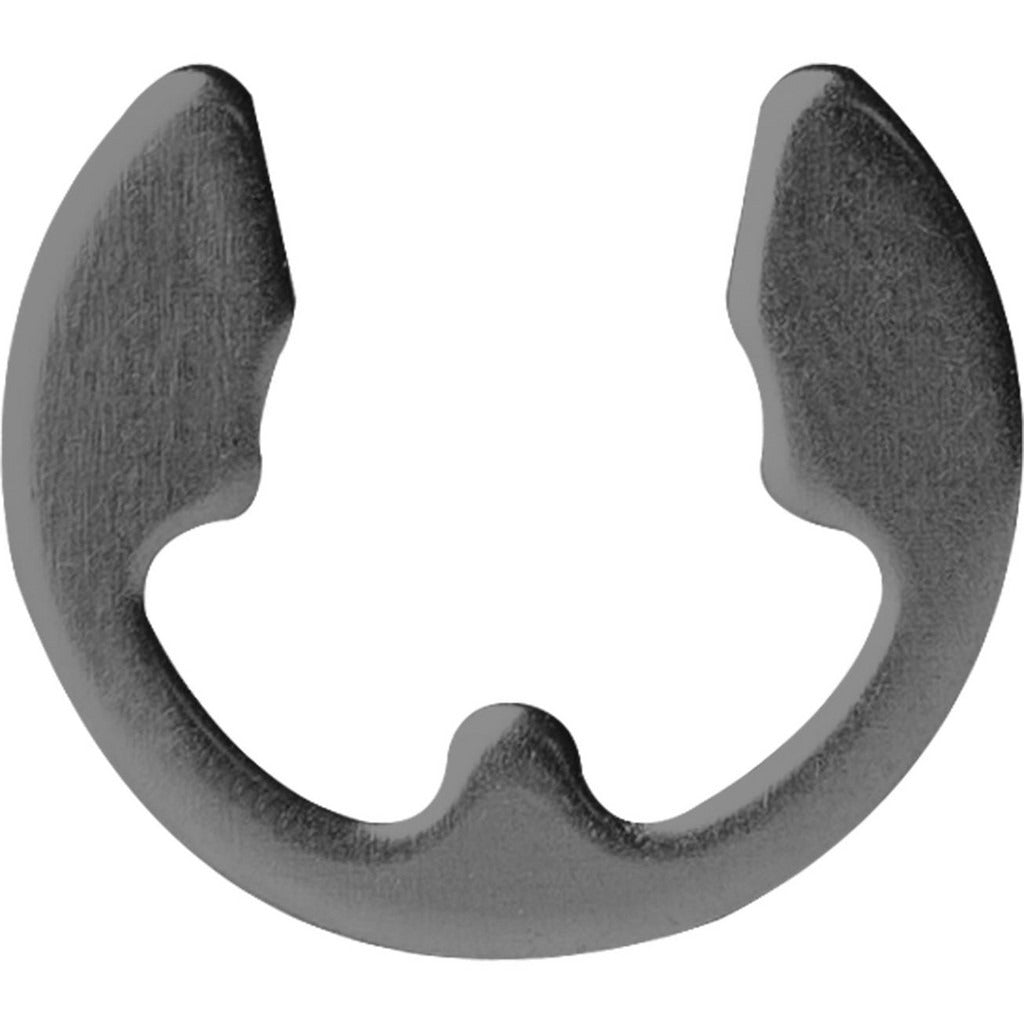

Rotor Clip DE-9ST Pd B100 External E Style Retaining Ring

Product Description

The ROTOR CLIP DE-9ST PD B100 is an external E style retaining ring designed to secure components on shafts without the need for machined grooves at the shaft end. It seats in a 9 mm groove diameter and fits shafts ranging from 13 to 14 mm in diameter. Manufactured from 1060-1090 spring steel with a phosphate and oil finish, the ring delivers reliable hardness in the 65 to 72 HR30N range. This fastener is installed by maintenance technicians, mechanical assemblers, and trade professionals working on rotating assemblies, drive shafts, and precision mechanical systems where axial retention of components is required.

This E style retaining ring is suited for metric shaft assemblies in light industrial, commercial, and trade equipment applications. Its three-prong design allows for tool-free or snap-ring plier installation directly onto the shaft groove without requiring full shaft disassembly. It is a metric-dimensioned part conforming to DIN 6799, making it appropriate for equipment engineered to European or international standards. The minimum order quantity for this part is 100 units, with individual package quantity of 1.

Key Features

• E style external ring seats into a 9 mm groove diameter on shafts from 13 to 14 mm
• 1060-1090 spring steel construction with hardness rated 65 to 72 HR30N
• Phosphate and oil finish for corrosion resistance in typical service environments
• Three-prong design for quick side-load installation onto shaft groove
• Meets DIN 6799 and SAE 1060-1090 fastener standards
• Minimum order quantity of 100 units per order

Compatibility

Designed as an OEM-style replacement or new-installation retaining ring for metric shaft assemblies requiring a 9 mm groove diameter and shaft diameters between 13 and 14 mm per DIN 6799 specifications.

Installation Notes

Installation and removal should be performed by a qualified technician using proper external E ring pliers or snap-ring tools sized for the ring dimensions. De-energize and lock out all equipment before servicing any rotating assembly. Inspect the shaft groove for burrs or damage before seating the ring to ensure full prong engagement. Do not reuse retaining rings that have been deformed or overstressed during removal.
