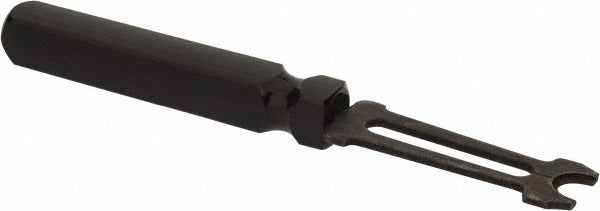

Rotor Clip A-160 Retaining Ring Applicator External

Product Description

The ROTOR CLIP A-160 is an external retaining ring applicator designed for installing radial retaining rings onto shafts and housings. The tool features a blade length of 2.218 inches and a body width of 0.812 inches, with a tip length of 0.593 inches. The A-160 is heat treated for durability under repetitive installation loads. It is used by maintenance technicians, assemblers, and trade professionals who work with retaining ring fasteners in mechanical assemblies across HVAC, industrial, and general equipment service applications.

This applicator is suited for radial external retaining ring installation tasks in both production and field service environments. The compact blade profile allows access to tight shaft assemblies where manual installation would risk ring distortion or improper seating. The A-160 is appropriate for bench assembly work and on-site equipment repair where consistent ring placement is required.

Key Features

• Blade length of 2.218 inches for reach into recessed grooves
• Body width of 0.812 inches for a controlled grip profile
• Tip length of 0.593 inches for precise ring engagement
• Heat treated construction for extended service life under repetitive use
• Designed for radial external retaining rings
• Meets ISO 13485:2016 standards

Compatibility

Designed for use with radial external retaining rings in standard groove applications. Consult ROTOR CLIP ring sizing charts to confirm ring-to-applicator compatibility before use.

Installation Notes

Use of appropriate eye protection is recommended when installing retaining rings, as rings can eject under spring tension during application. Verify the shaft groove dimensions and ring size are matched to the applicator tip before beginning work. The A-160 is not tether capable and should be secured appropriately when working at elevation. Always inspect the applicator tip for wear or deformation before use to prevent ring misapplication.
