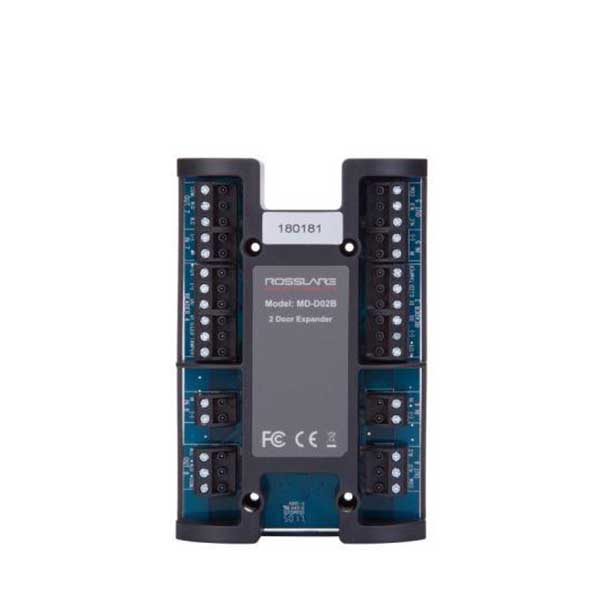

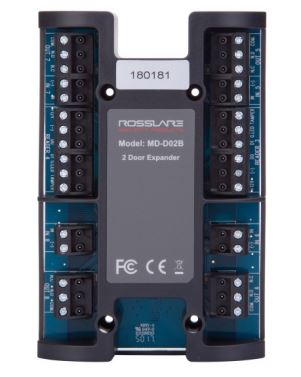

Rosslare MD-D02B Two Reader Expansion Board B Series AC225B

Product Description

The ROSSLARE MD-D02B 2-Reader expansion board is designed for residential and commercial applications. It adds two additional readers or keypad inputs, four relay outputs, and four supervised inputs to the access control panel. It supports Wiegand, Clock-and-Data, or other formats supported by Rosslare's AxTraxNG software transmission formats. The host access controller has complete control over the additional readers, inputs, and outputs.

• Adds two proximity readers or keypads
• Features four relay outputs and four supervised inputs to the access control panel
• Compatible with Wiegand or Clock-and-Data transmission keypad or biometric readers

Product Highlights

The MD-D02B expansion board is cost-effective and allows for modular installation. Input and output configurability is available using Rosslare’s AxTraxNG™ software.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: MD-D02B

Technical Specifications

• Input Voltage: 12 VDC from host controller
• Input Current: Standby: 30 mA Maximum: 135 mA
• Number of Reader Ports: 2
• Number of Inputs: 4
• Output Relays: 4 x 5 A with N.O., N.C. and COM contacts Form-C Relays
• Inputs Voltage: 5 VDC maximum voltage
• Reader Output Voltage: 12 VDC
• Max. Reader Current: 300 mA
• LED Control Output: Open collector, active low
• Tamper Input: 5 VDC maximum voltage
• Dimensions: 100 x 75.9 x 32.5 mm (3.9 x 3.0 x 1.3 in.)
• Vendor Item No.: MD-D02B
• Item Category Code: ACCESS CONTROL
