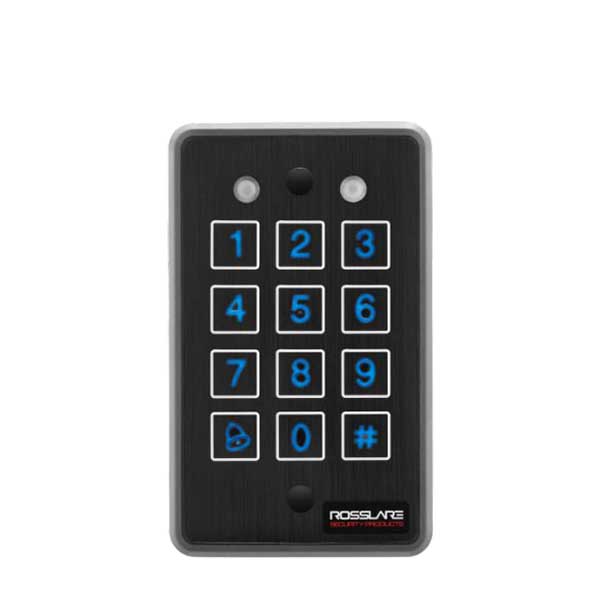

Rosslare AYC-T65B Convertible Ultra Slim Proximity & Pin Reader

Product Description

The ROSSLARE AYC-T65B is a convertible ultra slim proximity and PIN reader that offers programmable PIN & Proximity transmission formats, LED control, and tamper detection. Designed with a rugged metallic housing and waterproof enclosure, the unit is suitable for both indoor and outdoor use. The illuminated piezoelectric keypad ensures visibility day or night.

• Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible unique illuminated piezoelectric keypad

Product Highlights

Durable access control unit with advanced features, suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: AYC-T65B
• Country of Origin: United States

Technical Specifications

• Operating Voltage Range: 5–16 VDC
• Input Current: 92 mA
• Input Current Max: 105 mA
• Max Read Range: 40 mm
• Keypad: 3x4 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry
• LED Control: Dry Contact N.O.
• Facility Code: Programmable
• Read Card Format: Selectable Wiegand 26-Bit, Clock & Data
• Operating Temperature: -30°C to 65°C (-22°F to 150°F)
• MPN: AYC-T65B
• Capacity - Users: 500
• Frequency: 125kHz
• Indoor or Outdoor Use: Indoor; Outdoor
• Input Voltage: 5 to 16
• Interface: Wiegand, Clock and Data
• Mounting Style: Surface-Mount
• Product Type: Proximity and PIN Reader
• Read Format: Proximity Card, PIN
• Read Range: 1.58 in. (40mm)
