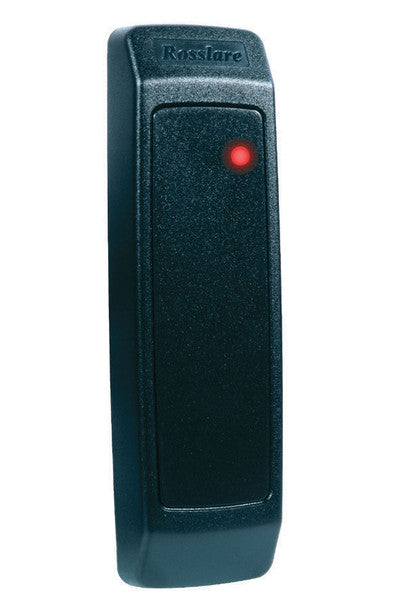

Rosslare AY-L23G Outdoor Long-Range RF Reader 433.92 MHz

Product Description

The ROSSLARE AY-L23G is a long-range wireless receiver designed to activate electronic barriers, garage doors, home security systems, or other devices accepting auxiliary input. Compatible with Rosslare's SA-23 family of wireless remote control transmitters, it receives signals up to 230 ft. It outputs the ID in two Wiegand formats and acts as a remote control when attached to a controller as a reader input.

• Excellent RF performance with internal antenna.
• Offers two different Wiegand output formats.
• Features optical wall and case tamper protection with tamper output signal.

Product Highlights

This long-range RF receiver has ultra-low current consumption and is mountable on a flat surface. It interfaces with any control panel with an available reader input.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: AY-L23G

Technical Specifications

• Operating Voltage Range: 7 to 24 VDC
• Input Current: Standby: 26 mA , Max: 65 mA
• Read Range: 230 ft.
• RF Frequency: 433.92 MHz
• Output format: 2 Wiegand (sel. 26,32,34,40 Bits): Wiegand1: D0 D1 Wiegand2: D0 D1 2 Output (Open Collector) Output1 (200mA) Output2 (200mA)
• Tamper Output: Open collector, active Open, max. sink current of 16 mA
• Maximum Cable Distance to Controller: 500 ft.
• LED Control: Green, Orange
• Dimensions: 5.7 x 1.7 x 0.8 in.
• Device Certifications: IP65
