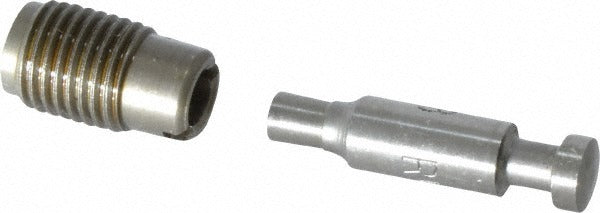

Roper Whitney 200050188 Round Punch Die Set 3/16 Inch

Product Description

The ROPER WHITNEY 200050188 is a round punch and die set designed for use with the Roper Whitney No. 5 hand punch. The set produces clean 3/16-inch round holes and features a throat depth of 1-3/4 inches, allowing work to be positioned further from the sheet edge. Overall length measures 1.25 inches. At 0.05 pounds, the set is compact and easy to handle during repetitive punching tasks. It is installed and used by metalworkers, HVAC fabricators, electricians, and sheet metal mechanics who require consistent, accurate hole sizing in light-gauge sheet stock.

This punch and die set is suited for light-gauge sheet metal fabrication work in both shop and field environments. Typical applications include punching mounting holes, knockout holes, and connector clearances in ductwork, electrical enclosures, brackets, and similar flat stock. The 3/16-inch punch size is a common standard for small fastener and rivet clearance work. The set is sold as a single unit and is intended as a direct replacement or spare for the Roper Whitney No. 5 hand punch tool.

Key Features

• 3/16-inch maximum punch diameter for consistent round hole production
• 1-3/4-inch throat depth allows punching further from sheet edges
• Overall length of 1.25 inches for compact fit in the punch tool
• Designed specifically for use with the Roper Whitney No. 5 hand punch
• Lightweight at 0.05 pounds for easy handling and storage

Compatibility

Designed for use with the Roper Whitney No. 5 hand punch set (MSC 09271024). Verify punch tool model before ordering to confirm proper fit.

Installation Notes

Installation of this punch and die set is performed by sheet metal mechanics or fabricators familiar with hand punch tooling. Before changing punch and die components, ensure the hand punch is not under load and the work area is clear. Proper alignment of the punch and die is required to avoid tool damage and ensure clean hole edges. Follow the tool manufacturer guidelines for seating and securing the punch and die within the punch frame.
