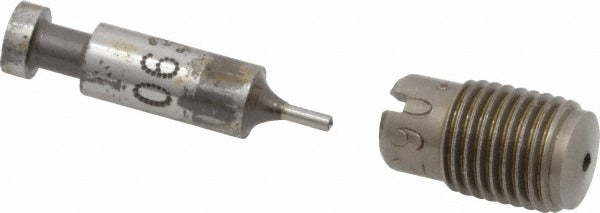

Roper Whitney 200050063 Round Punch Die Set 1/16 in

Product Description

The ROPER WHITNEY 200050063 is a round punch and die set designed for punching clean, precise 1/16-inch round holes in sheet metal and light-gauge materials. With an overall length of 1.25 inches, this compact set is built for use in manual punch presses and compatible bench-top tooling. It is the appropriate tooling choice when a technician needs repeatable, burr-minimized holes for grommets, fasteners, or conduit entry points in thin sheet stock. HVAC fabricators, sheet metal workers, and light industrial tradespeople are the primary users of this type of tooling.

This punch and die set is suited for light-gauge sheet metal fabrication tasks encountered in residential and commercial HVAC ductwork, electrical enclosure work, and general sheet metal shop operations. The 1/16-inch punch size handles small-diameter hole applications where a knockout or standard step bit would be impractical. It is intended for use in a bench punch press or manual punch frame that accepts this tooling diameter and shank configuration.

Key Features

• 1/16-inch maximum punch diameter for small, precise round holes
• Overall length of 1.25 inches for compact tooling setups
• Round punch and die set configuration for matched, clean hole geometry
• Lightweight at 0.05 pounds for easy handling and tool changeout
• Suitable for light-gauge sheet metal and thin material applications

Compatibility

Designed as an OEM-style replacement or standard punch tooling for manual bench punch presses and compatible punch frames that accept 1/16-inch round punch and die sets.

Installation Notes

Installation and use of this punch and die set should be performed by a qualified sheet metal technician or machinist familiar with manual punch press operation. Ensure the punch press is fully depressurized or disengaged before changing tooling. Verify that the die and punch are properly seated and aligned in the tool holder before applying force to avoid tooling damage or workpiece defects. Always wear appropriate PPE, including safety glasses, when operating punch tooling.
