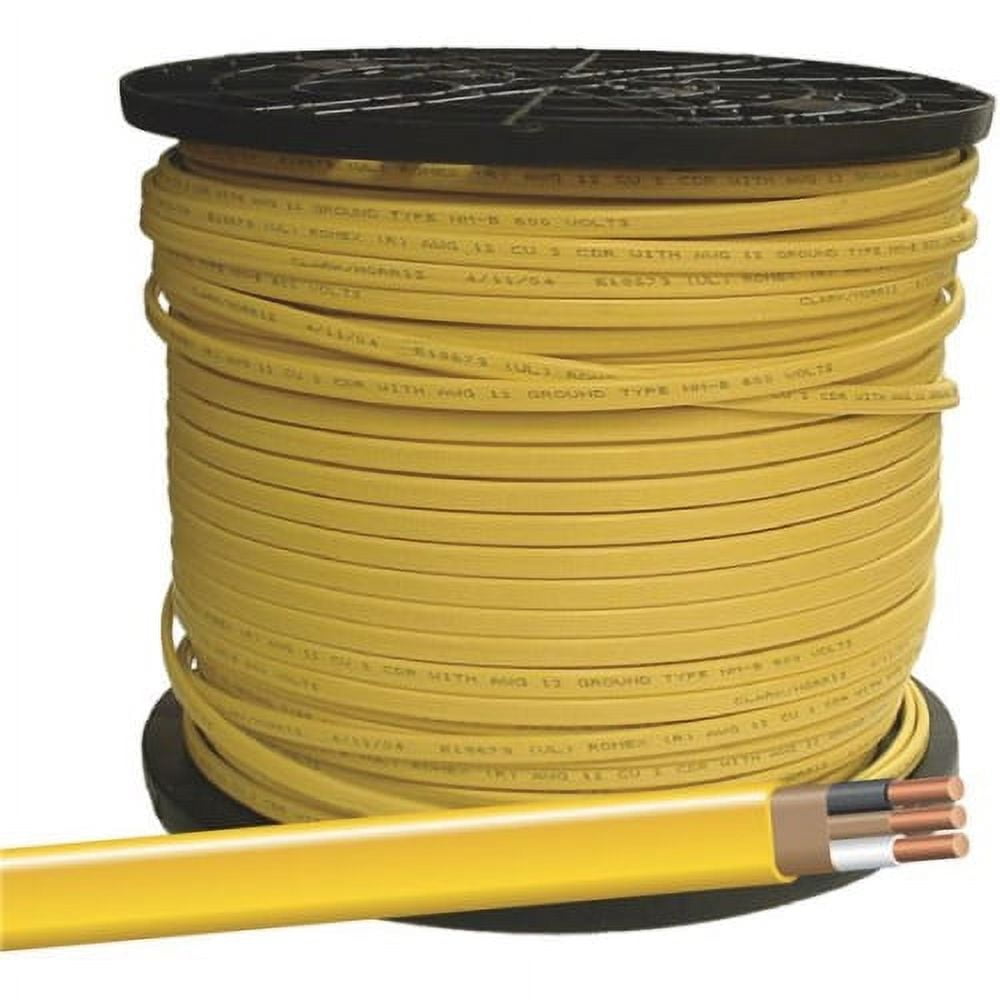

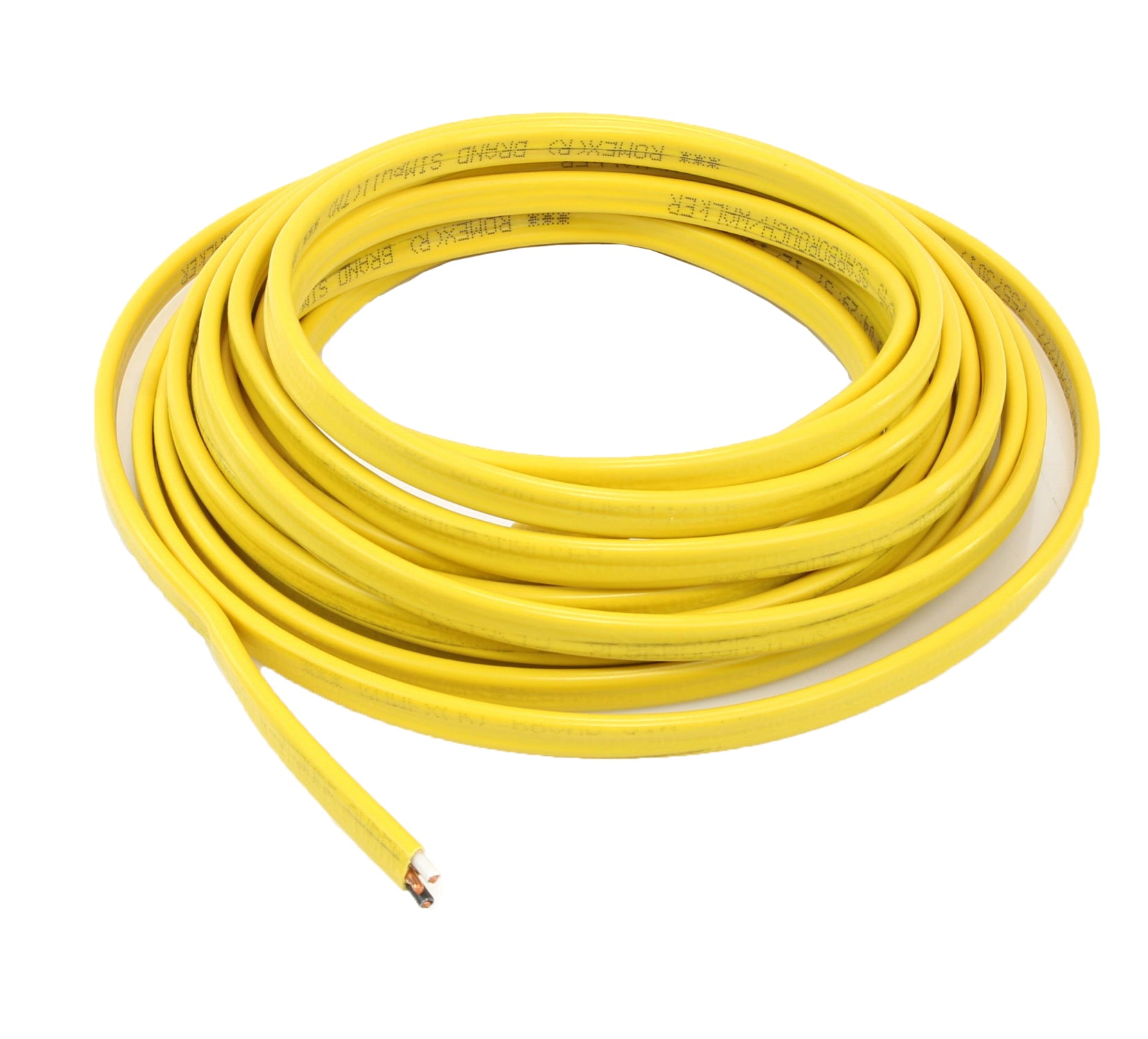

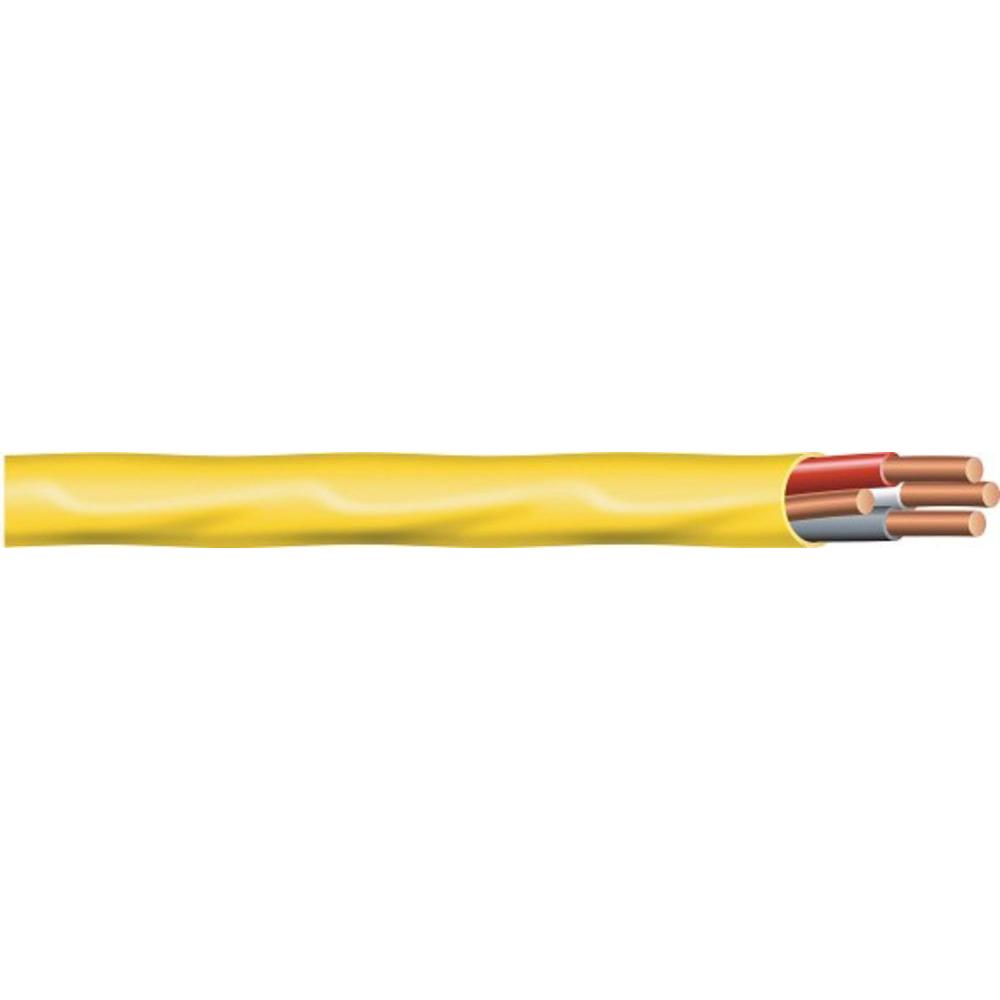

Romex ROMEX12/4W/GRDMR ROMEX NM-B 12/4 W/GRDMR Nonmetallic Sheathed Cable

Product Description

Romex NM-B 12/4 W/GRDMR Nonmetallic Sheathed Cable is appropriate for various electrical applications in residential and commercial settings. This cable has solid copper conductors, encased in a PVC jacket with a nylon sheath. It is designed for branch circuits serving outlets, switches, and other loads. Rated for six hundred volts, it is suitable for both exposed and concealed installations in dry locations. The SIMpull Technology jacket facilitates easier pulling and installation, which enhances efficiency during wiring projects.

• Primarily used for branch circuits in residential and commercial wiring applications.
• Rated for a voltage of six hundred volts.
• Features SIMpull Technology jacket for easier pulling and installation.

Product Highlights

Romex NM-B 12/4 W/GRDMR is reliable for wiring tasks requiring easy handling and installation.

Product Information

Standard Information

• Country of Origin: USA

Technical Specifications

• Type: NM-B (Non-Metallic Sheathed Cable)
• Voltage Rating: 600 Volt
• Current Rating: 20 Ampere
• Conductor Material: Soft Annealed Copper
• Conductor Size: 12 AWG
• Number of Conductors: 4 insulated plus ground
• Stranding: Solid
• Jacket Material: PVC
• Insulation Material: PVC
• Ground Type: With Ground Wire
• Ground Conductor Size: 12 AWG
• Temperature Rating: 90 Deg C (Dry)
• Approval: UL 83/719, UL Listed
• RoHS Compliant: Yes
• Applicable Standard: Federal Specification A-A-59544, ARRA, NEC
